Adpt-A64




test1







Overview

The Adpt-A-series probe adapter enables seamless integration between acute-style neural probes and the X3 X-Headstage™. Designed for versatility, these adapters support 16-, 32-, and 64-channel probes, ensuring broad compatibility with a wide range of neural probes available on the market.

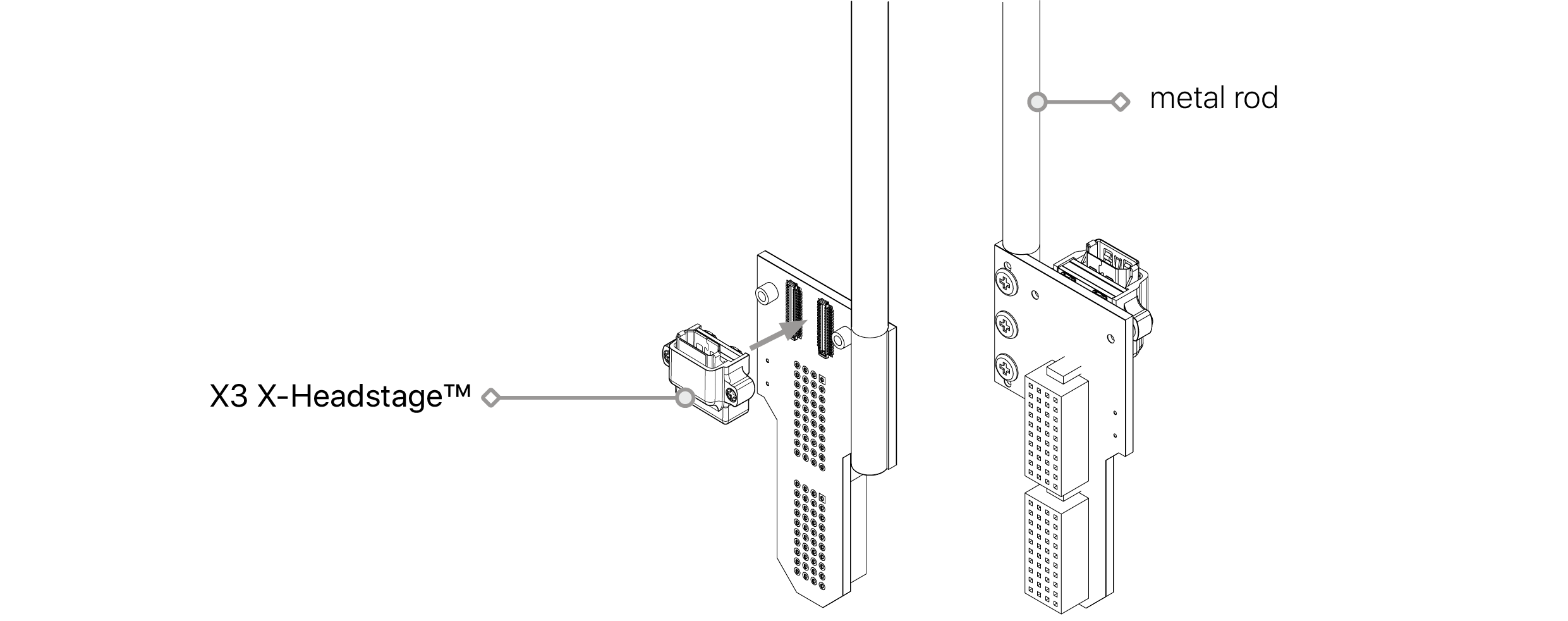

Adpt-A64 Overview

test1

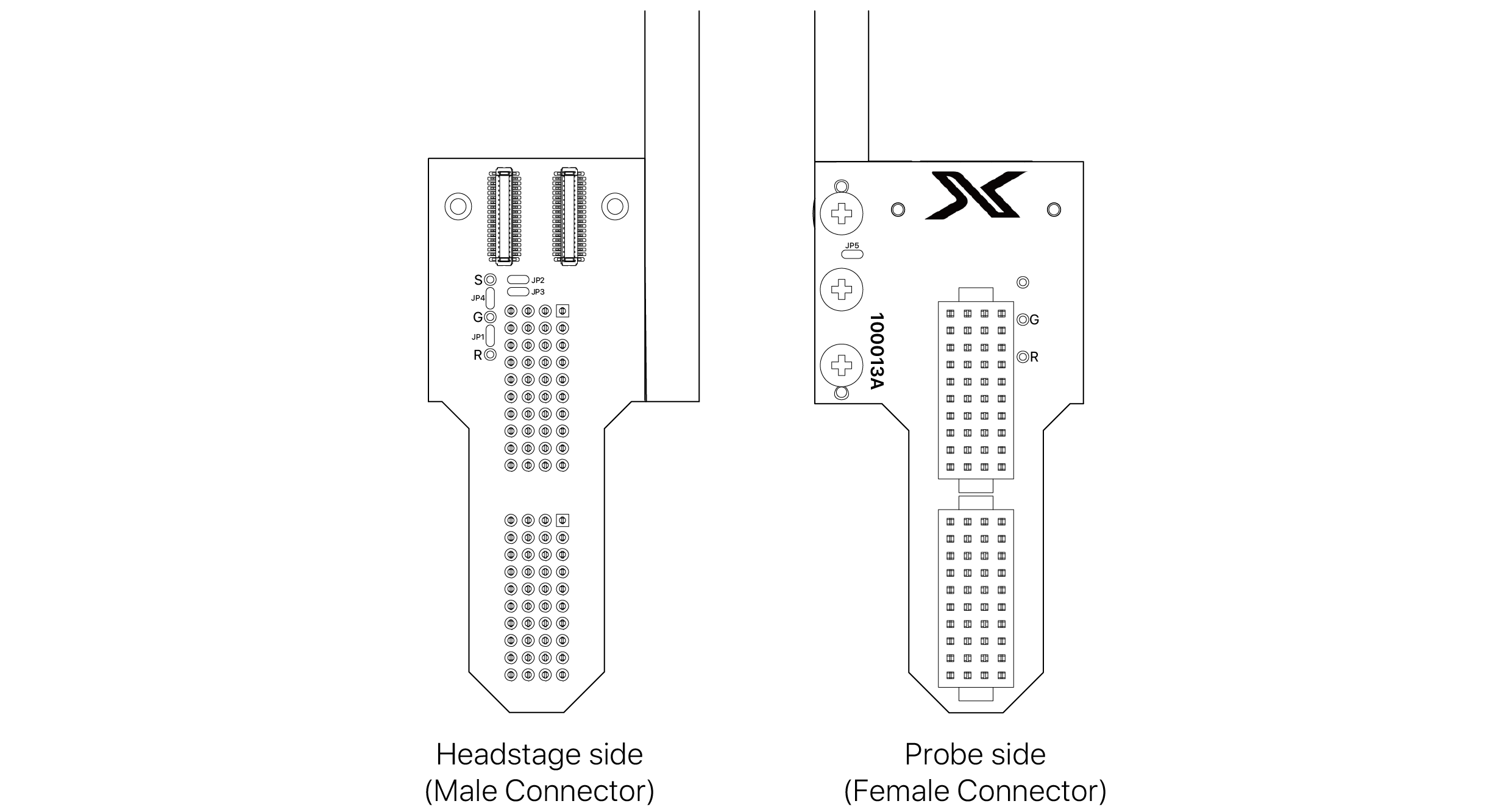

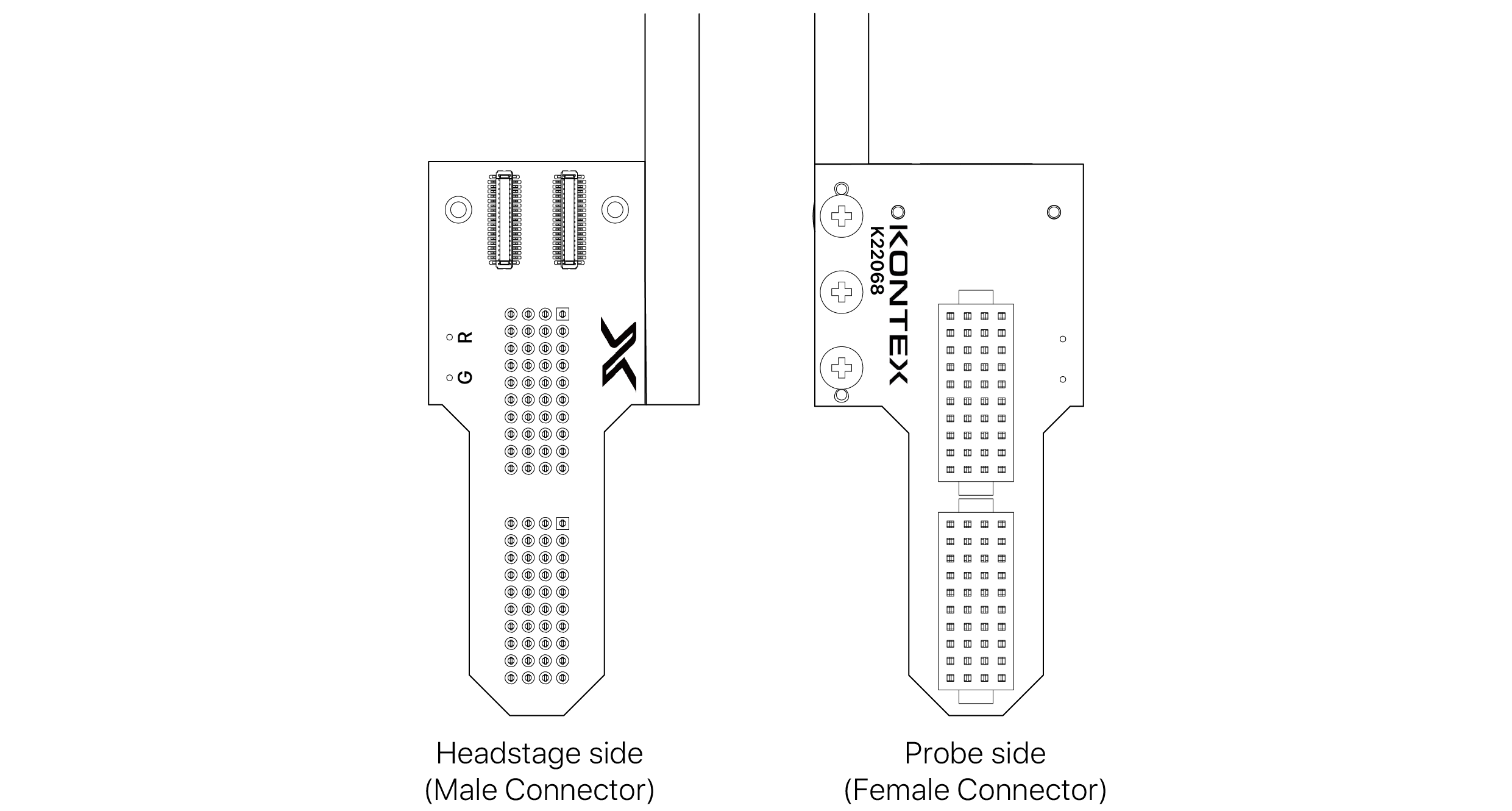

Adpt-A64




Connector

Headstage

  • Molex PN: 505070-3422

    • Probe

  • Samtec PN: FOLC-110-01-S-Q
  • Compatible Neuronexus probes: A64, MRA64, OA64LP, OA64LP V2

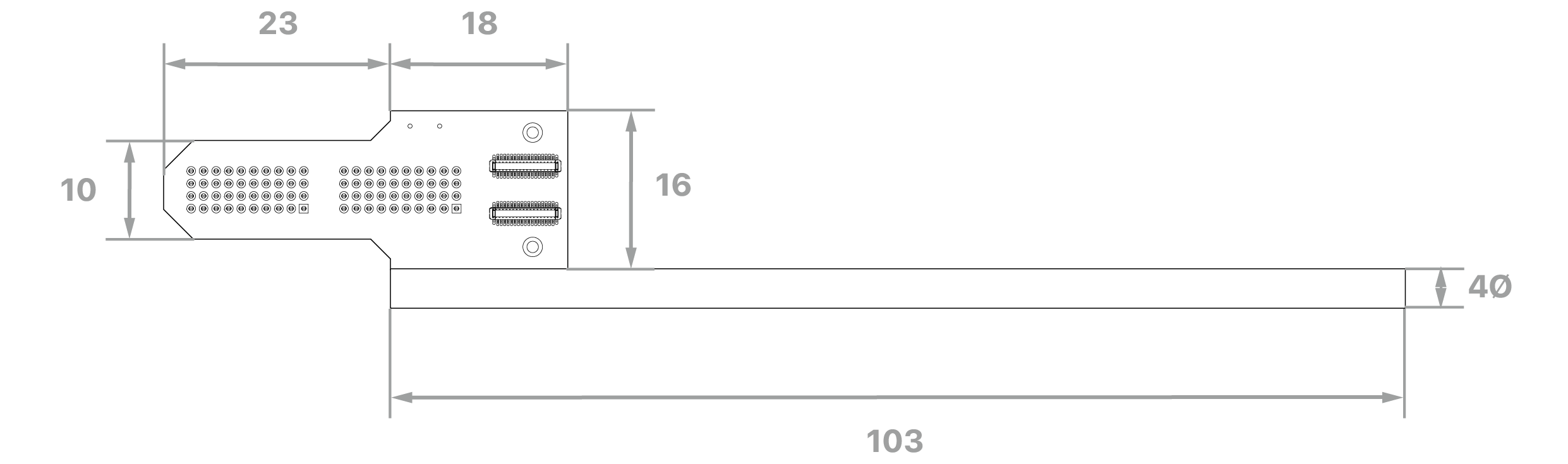

Dimension

test1

unit: mm




Adpt-A64 (SKU: Adpt-A64 v1)

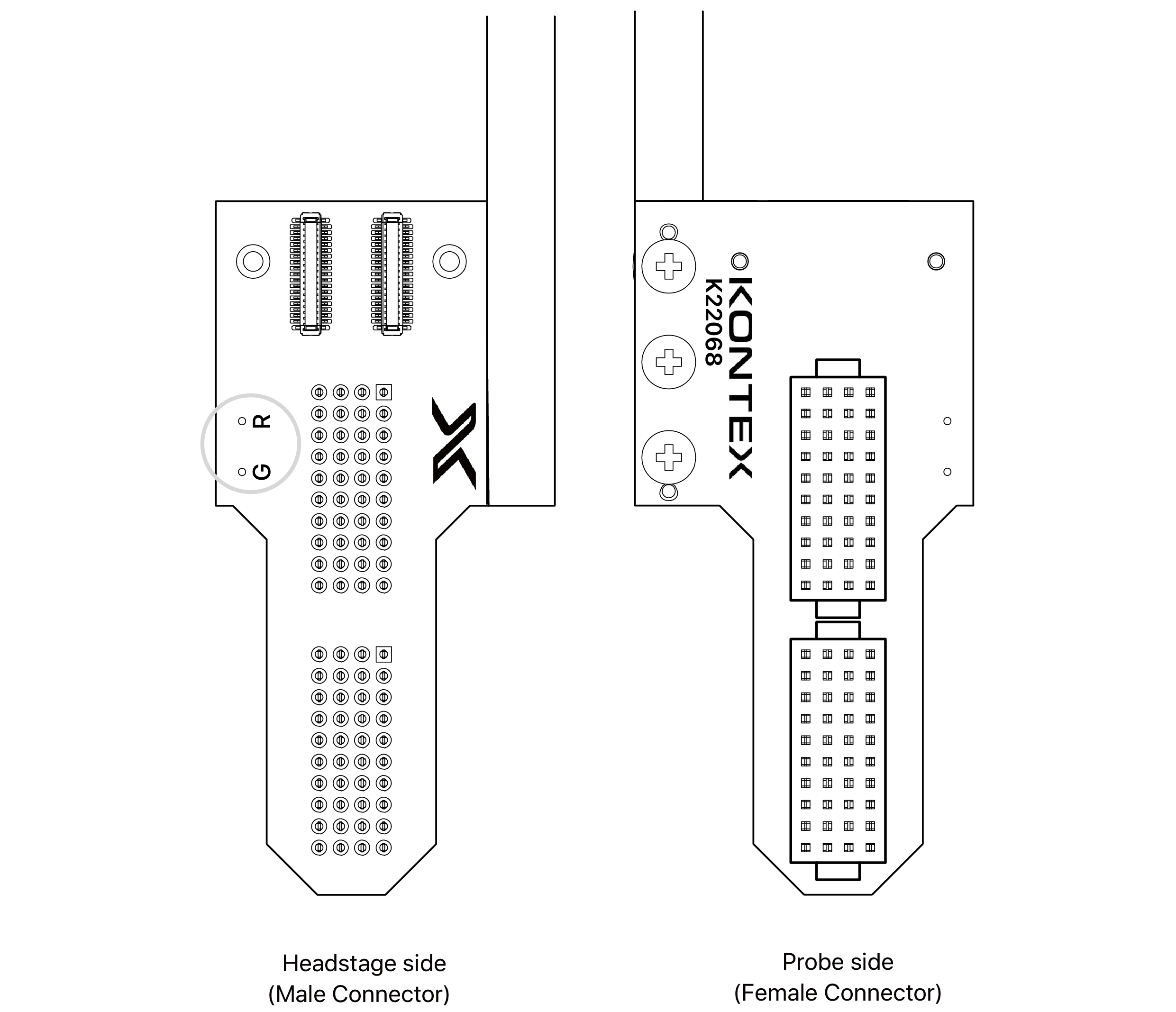

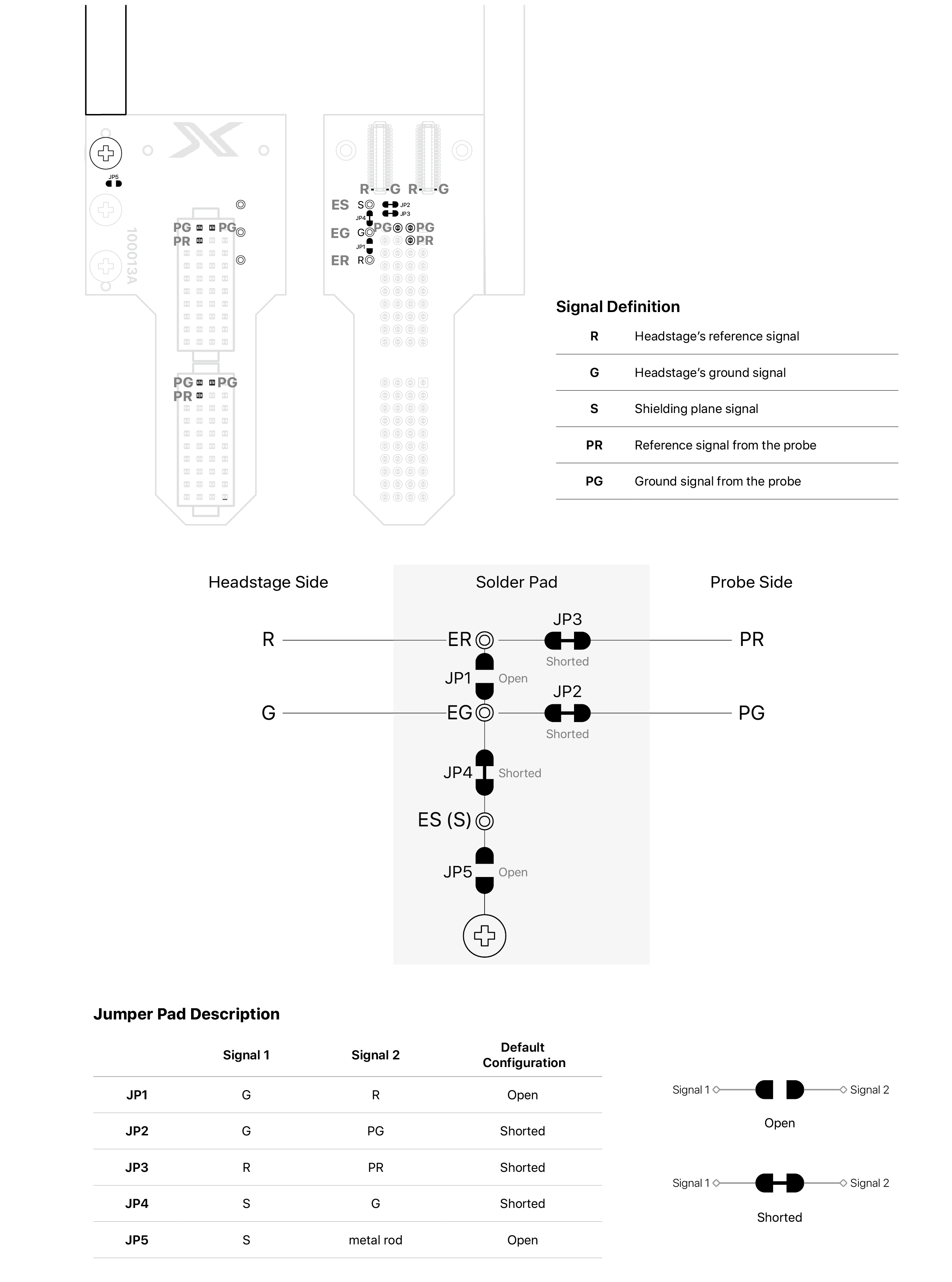

  • Ground (G) and reference (R) signals are independent by default.
  • To short them together at the adapter, solder a short wire between the G and R pads

test1

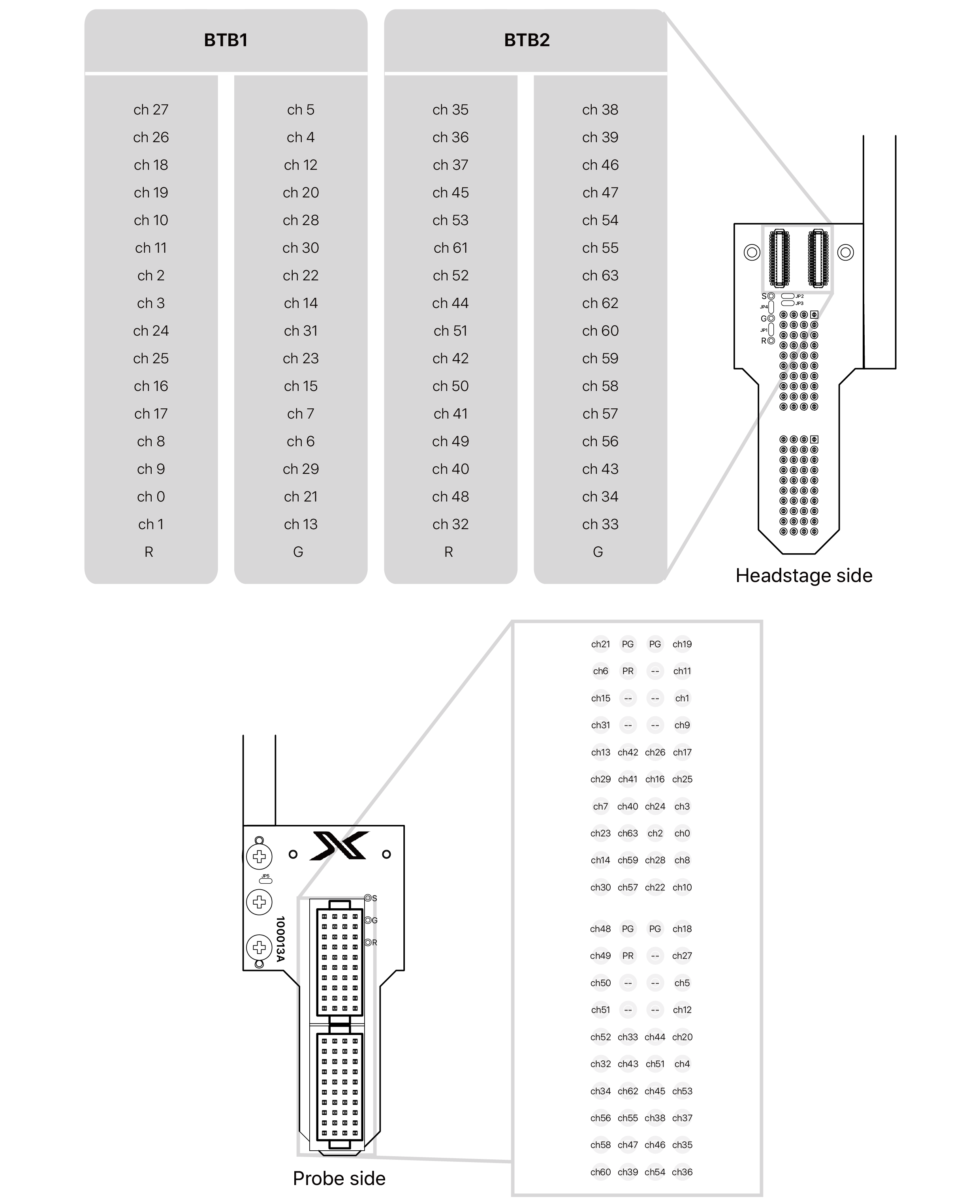

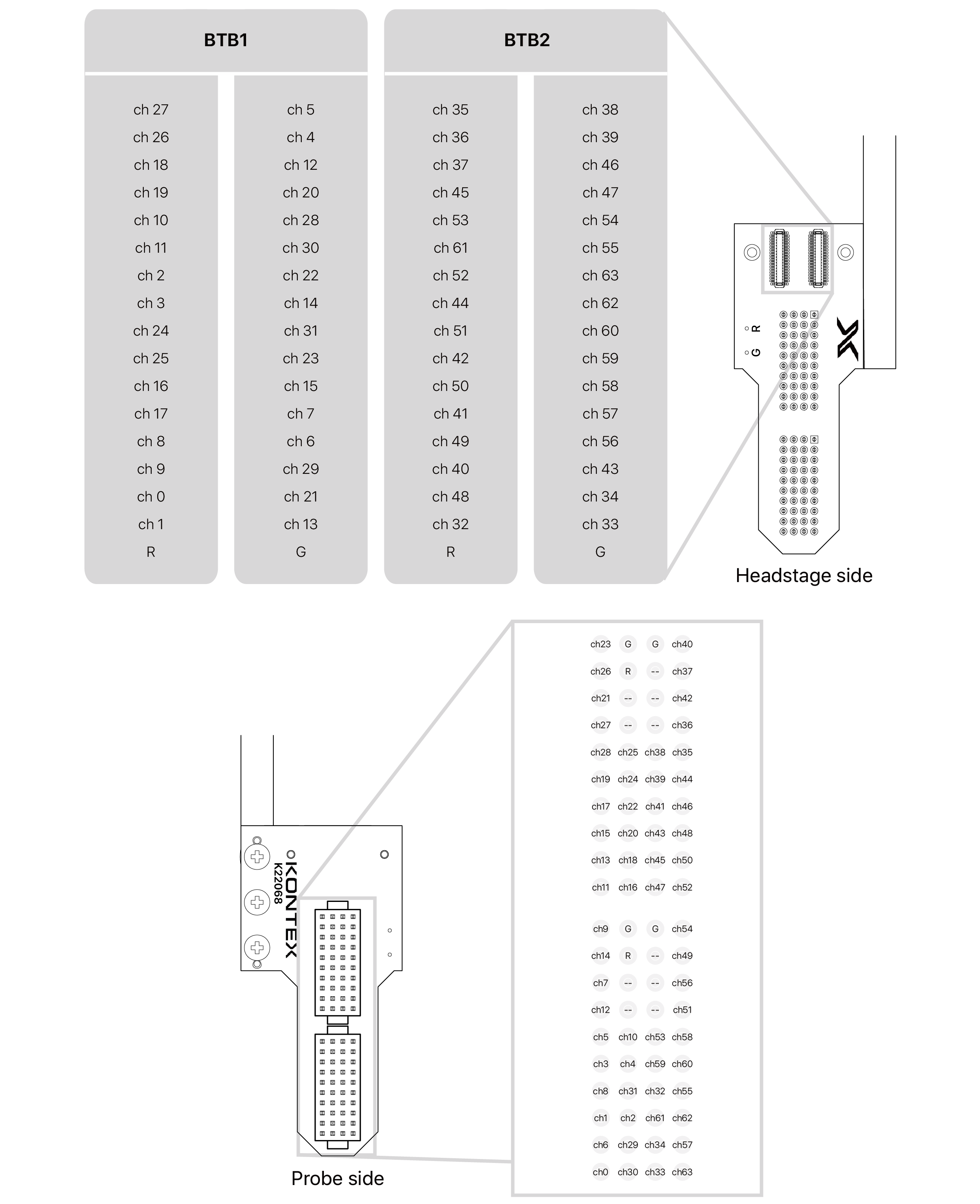

Pin Map

V1.1: Identified by 100012A on PCB

test1






test2
