SAdpt-HDMI-OM12
Overview
This adapter enables X3R32/X3R64-HDMI X-Headstage with KonteX HDMI cables to connect to the Intan Recording Controller directly or via the SPI cable.
SAdpt-HDMI-OM12 Overview

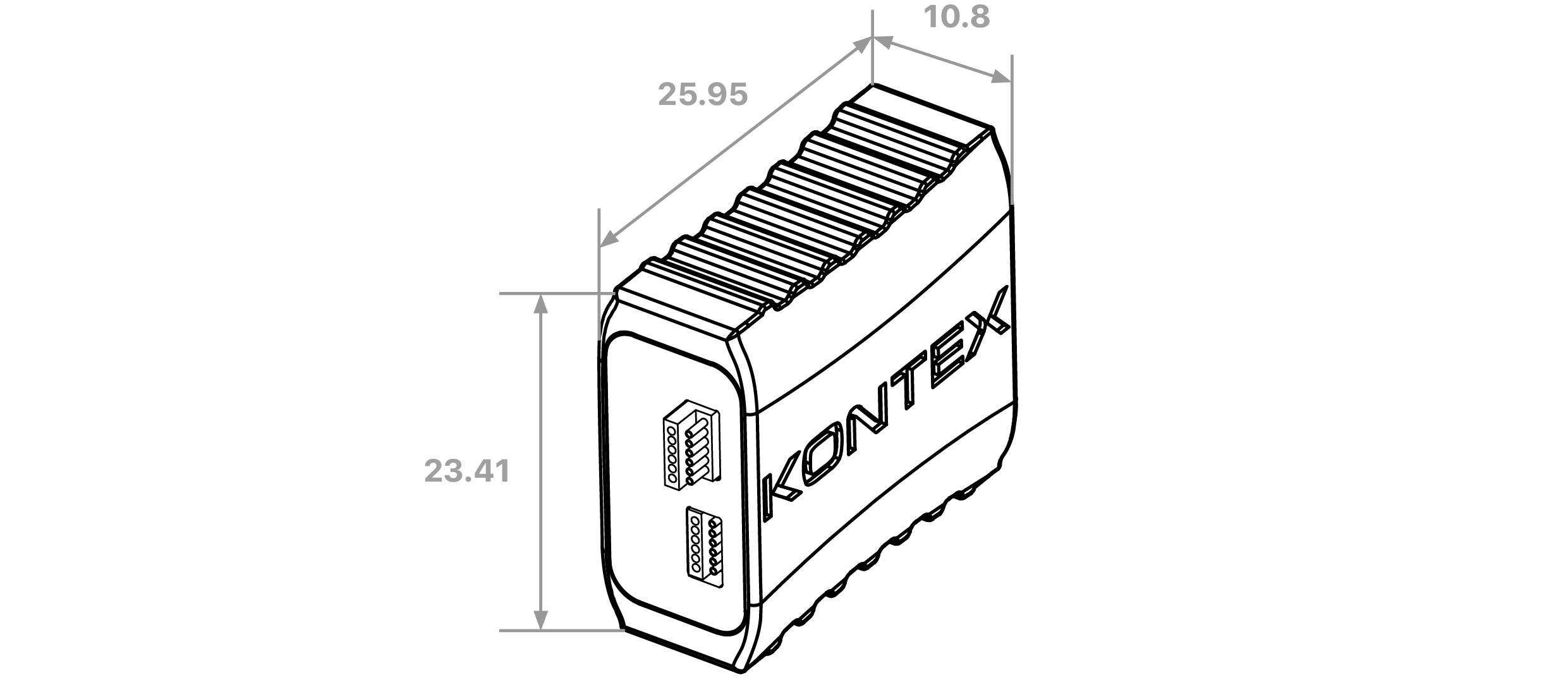

Dimension
unit: mm

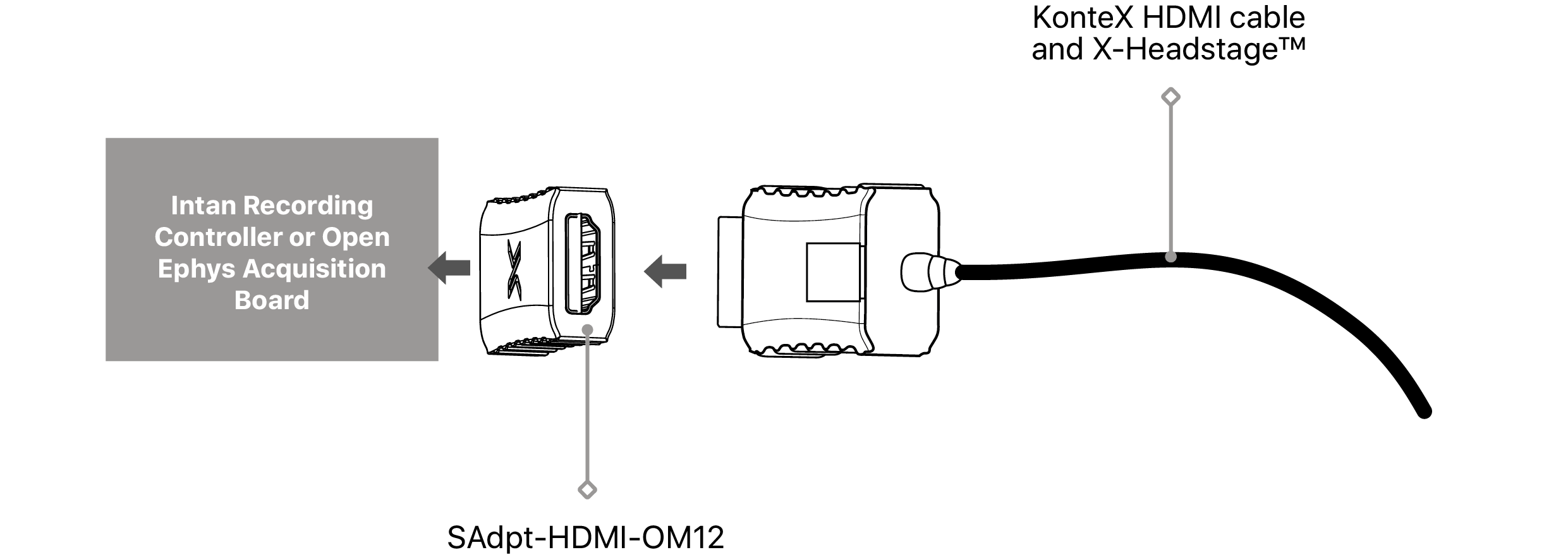

Usage Scenarios
The RHD connectors are recessed into a slot on the board, enabling direct plug-in to the acquisition box. It can be used to transmit the recording signals from the KonteX's XR headstage to the acquisition system through the HDMI port on the adapter.

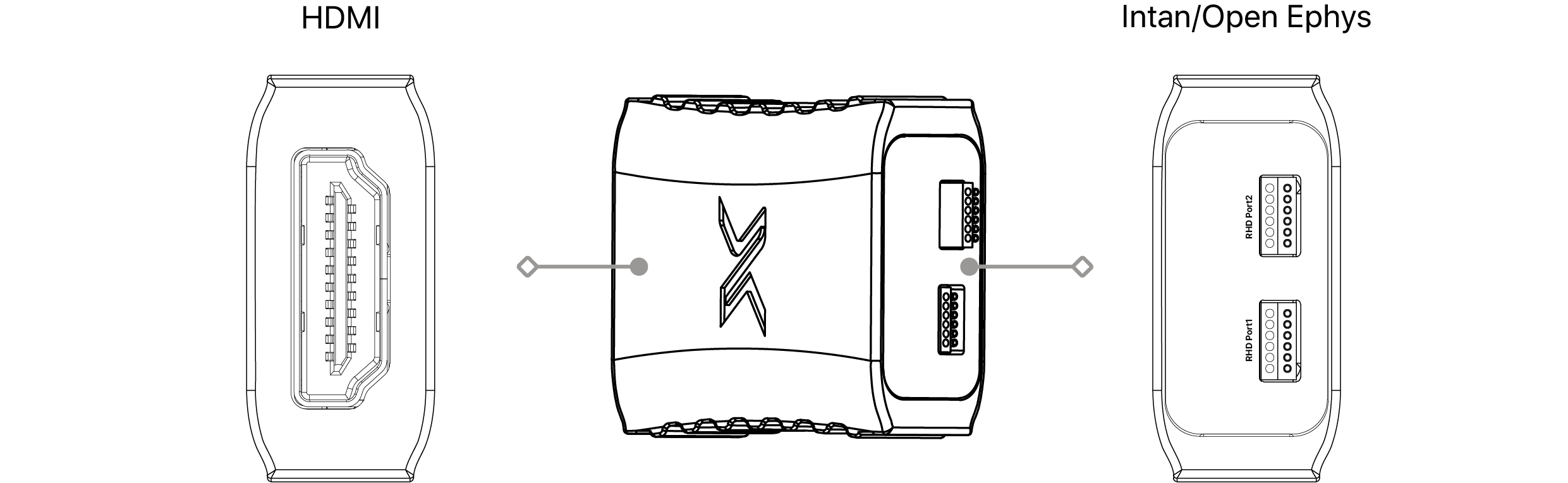

Connector
- HDMI Type A female
- Omnetics Polarized NANO 12-pin
HDMI
Intan/Open Ephys
Pin Map
