Overview

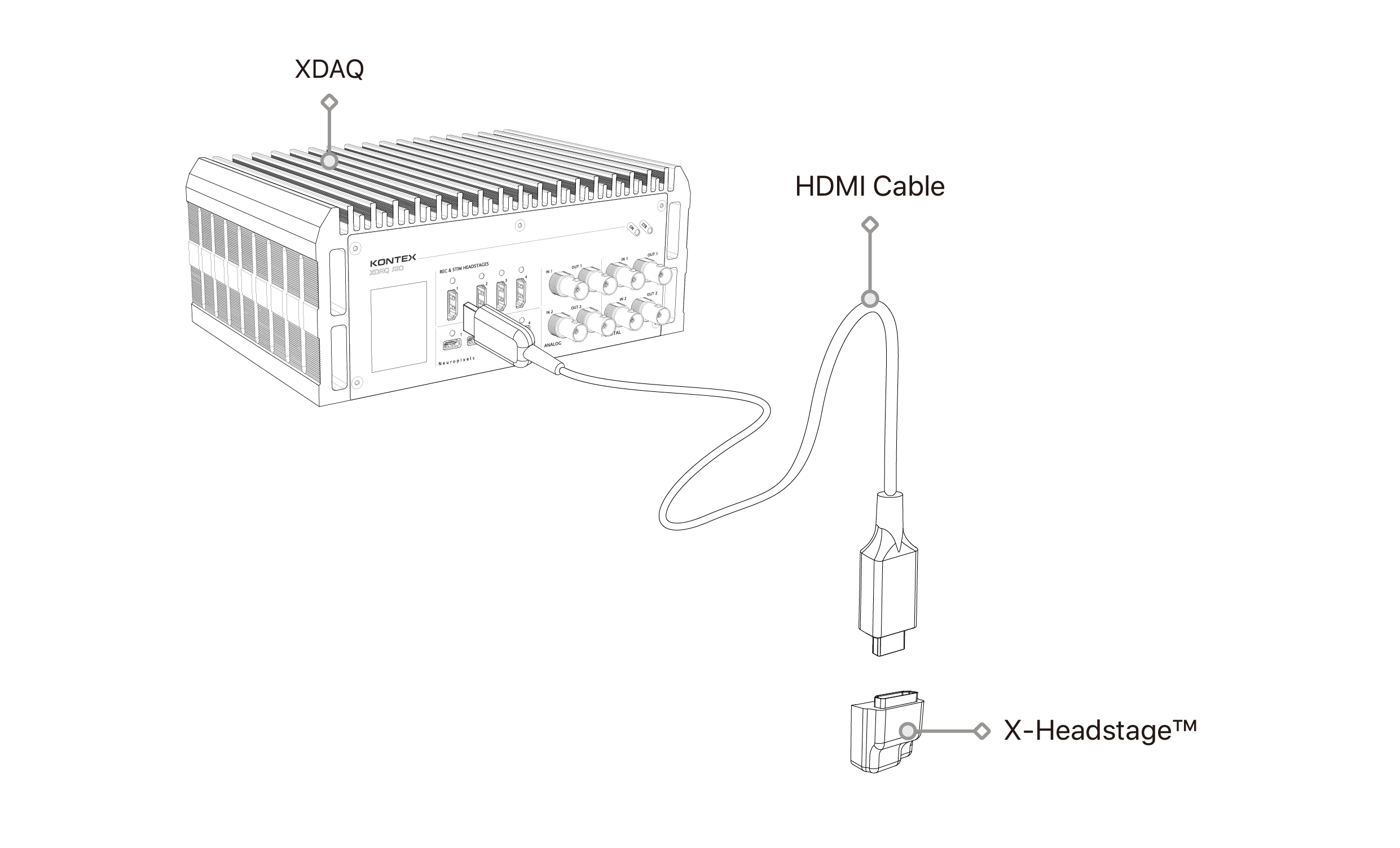

The HDMI A to D Cable (3M) is a high-quality data transmission cable designed to connect devices with a standard HDMI Type-A port to equipment requiring a HDMI Type-D (Micro HDMI) interface. With a 3-meter length, this cable provides flexible routing for experimental setups where distance between devices is required, such as between the XDAQ system and headstage adapters or commutators.
This cable is optimized for high-speed digital signal integrity and is suitable for use in data acquisition systems, video capture setups, and synchronized multimodal experiments.

Dimension And Weight

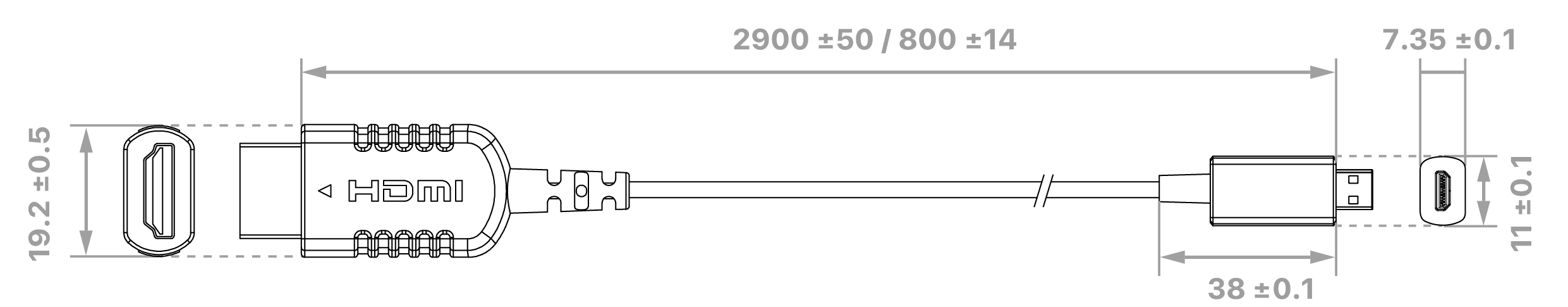

HDMI A to D cable 80CM / 3M

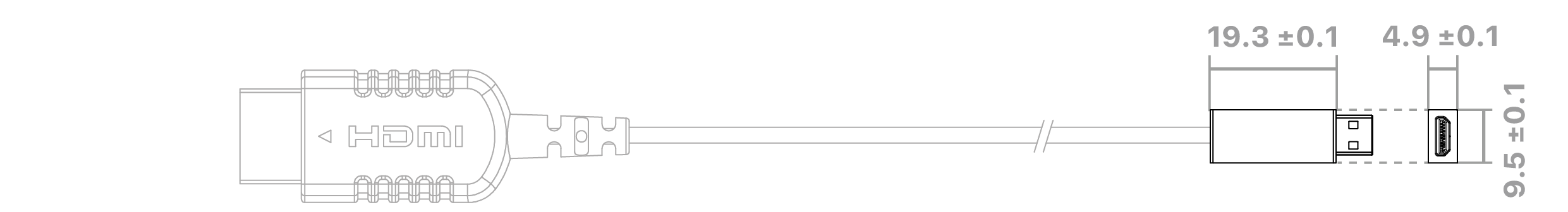

HDMI A to D cable without body

unit: mm

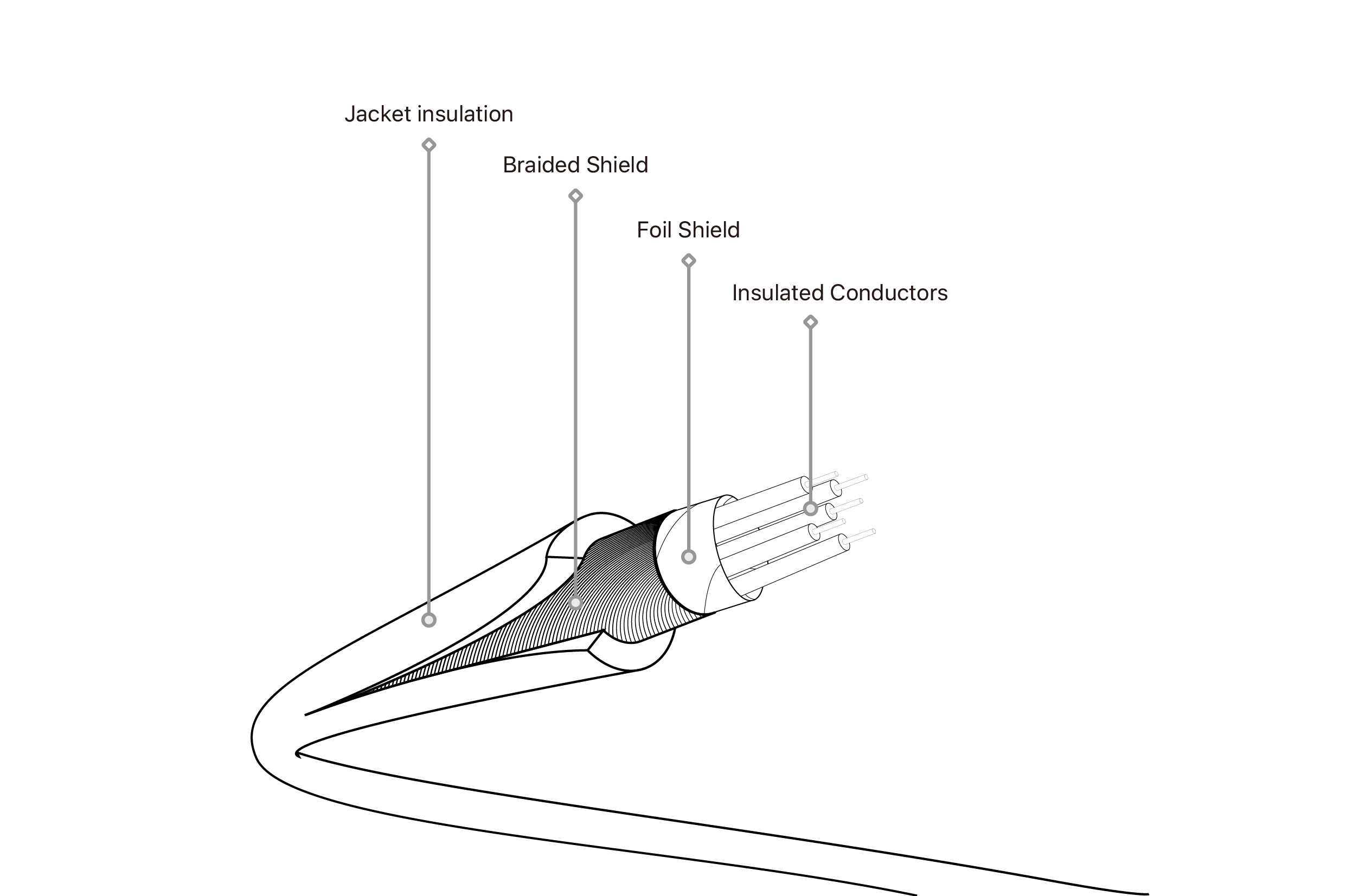

Cable Length	Entire cable	Entire cable Without Jacket insulation
80 CM	22.5 g	16.5 g
3 M	44.5 g	22 g

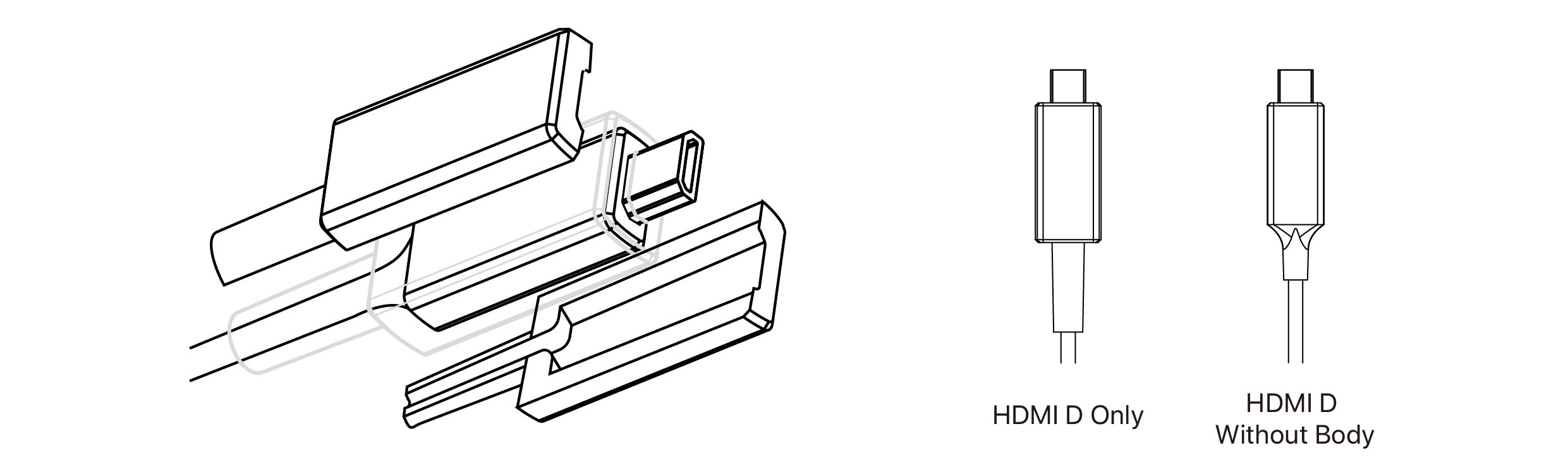

HDMI D Only	HDMI D Without Body
5.5 g	3.5 g

Connector

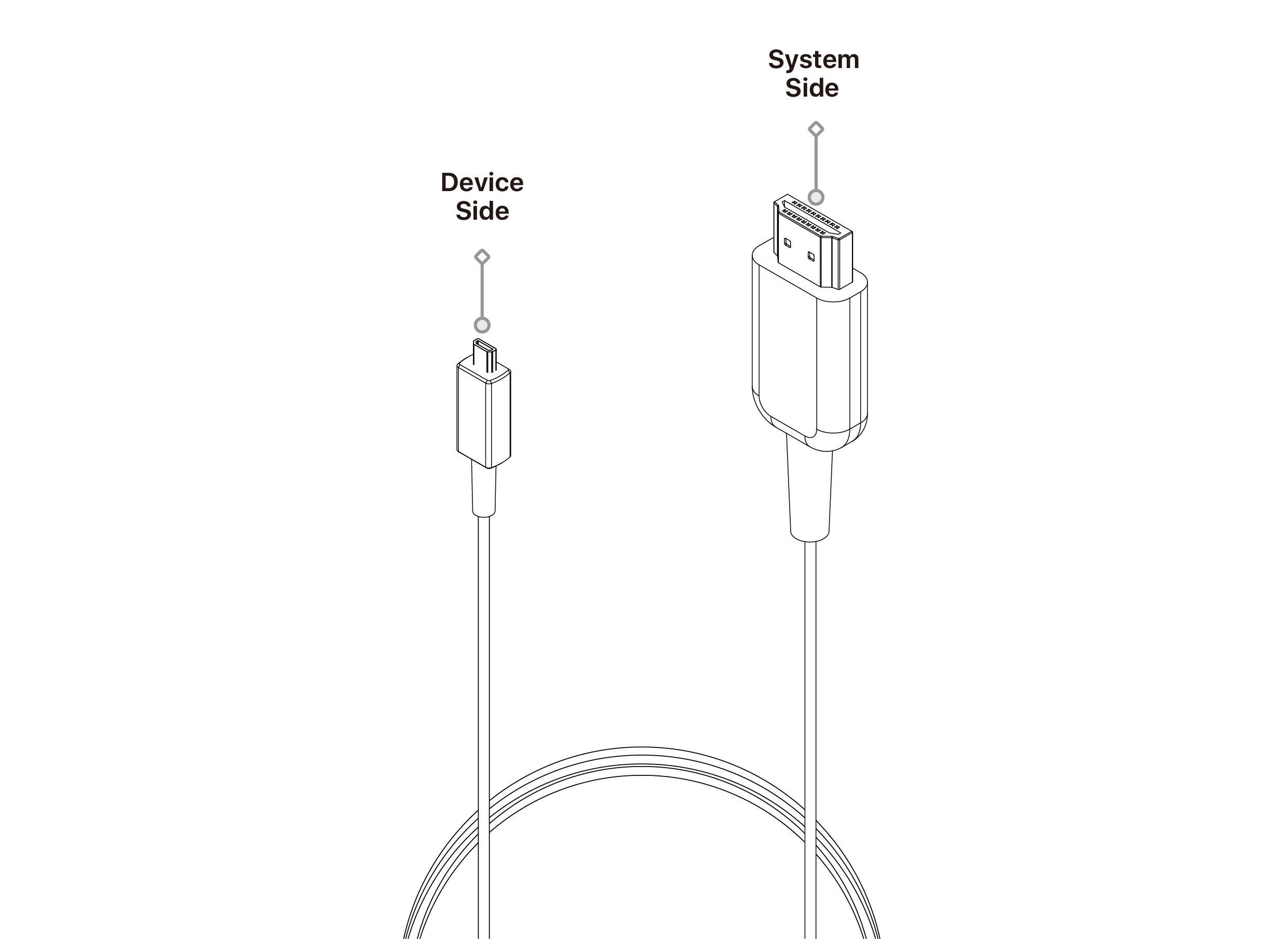

Cable End	Connector Type	Orientation
System Side	HDMI Type-A Male	Standard HDMI interface
Device Side	HDMI Type-D (Micro HDMI) Male	Compact micro HDMI interface

Compatibility

The HDMI A to D Cable (3M) is compatible with:

• KonteX XDAQ systems with HDMI output
• Adapters or devices requiring Micro HDMI input
• HDMI-equipped displays, capture cards, or acquisition hardware
• Standard HDMI-based instruments and modules

---
