Cable-NP

2026-03-23

Overview

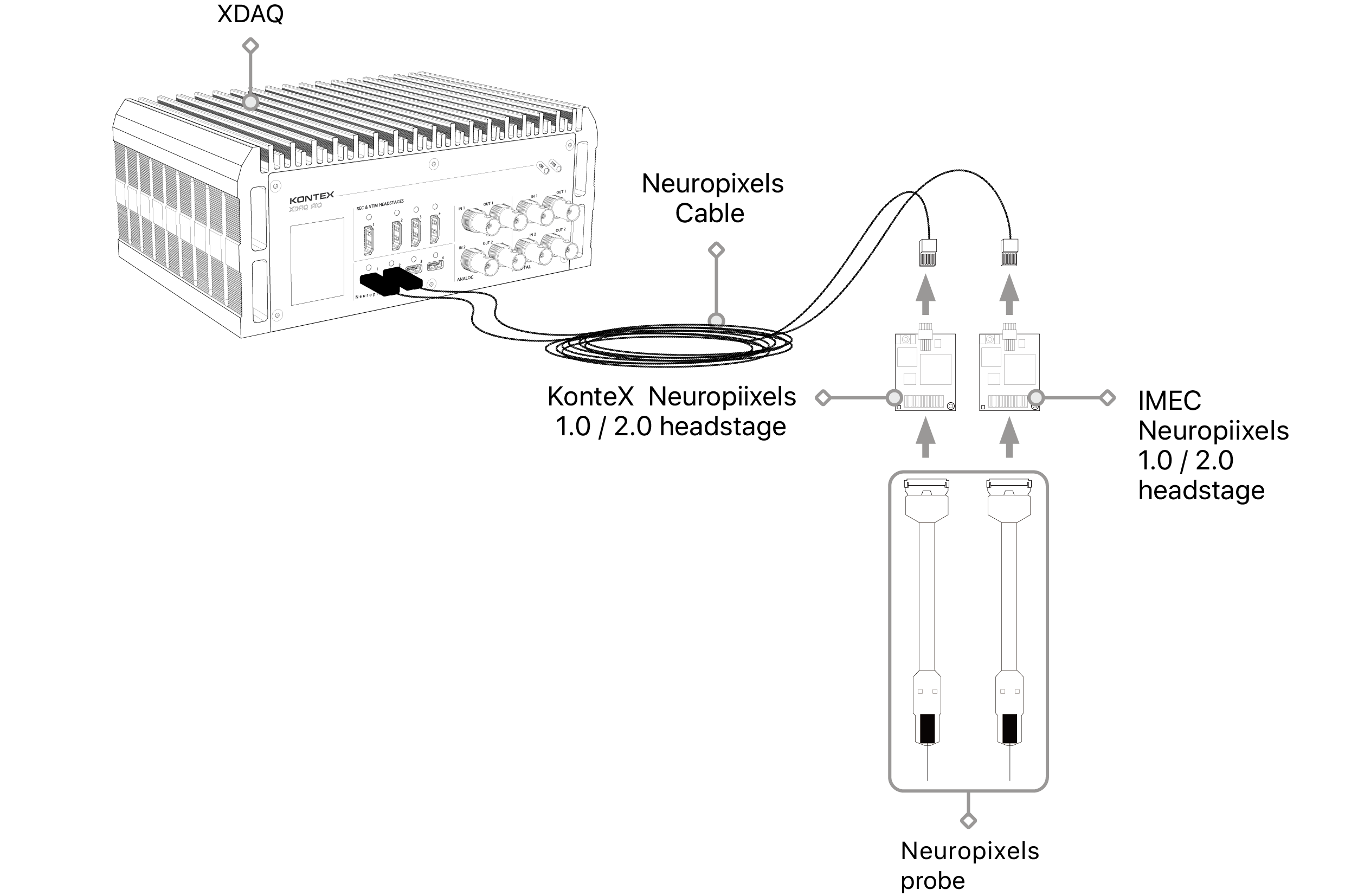

The KonteX Neuropixels cable features an optimized design (~40% lighter than IMEC stock cable) engineered to ensure reliable data transmission while preserving mechanical flexibility and durability. Every cable undergoes rigorous performance and quality testing to meet the highest standards.

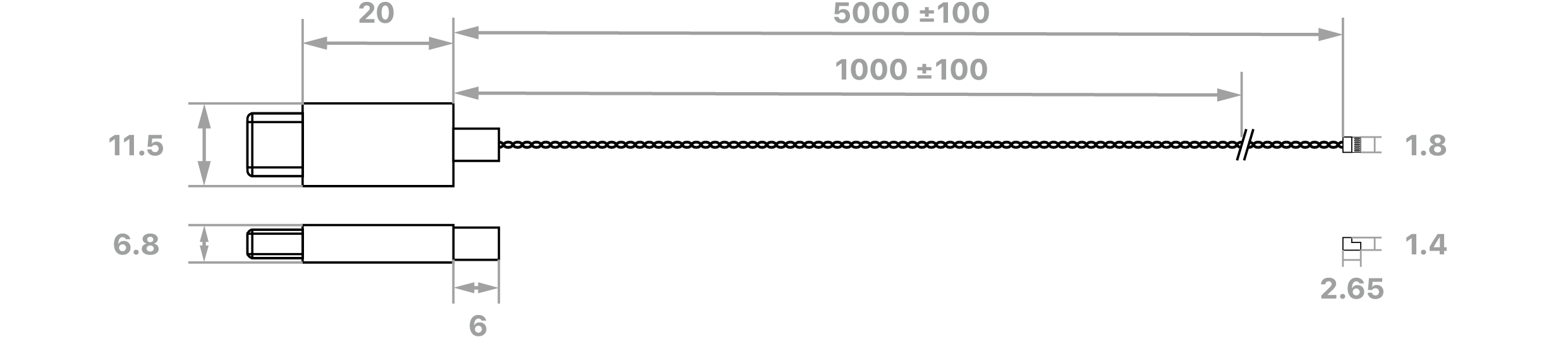

Dimension And Weight

unit: mm

Weight	With USB Connector	Without USB Connector
1 M	3 g	0.5 g
5 M	5.5 g	3 g

Connector

Headstage Side	J Model: WL-0601-H-02P
	K Model: Omnetics A79603-001
System Side	44.5 g

Part Number

Cable-NP- [Length] - [Connector]

Cable-NP
	(-) Length	(-) Connector
	1M: 1 meter	J: JST headstage side connector. Direct plug in to KonteX NP Headstages
	5M: 5 meter	K: Kit Options: J cable with IMEC headstage adapter (SKU: Adpt-NP-J2OM)
	contact us for custom length	Replacement cable or adapter can be purchased separately.

---
