Adpt-NNx-X3-16CH
Overview
The NeuroNexus X3 Dual 16ch Probe Adapter is designed to remap a single 32-channel X3 input connector into two independent 16-channel interfaces, enabling the use of two NeuroNexus X-series 16-channel probes with X3 headstages.
This adapter expands probe compatibility while preserving signal integrity, allowing researchers to flexibly integrate multiple low-channel-count probes within an X3-based acquisition system.
This adapter expands probe compatibility while preserving signal integrity, allowing researchers to flexibly integrate multiple low-channel-count probes within an X3-based acquisition system.

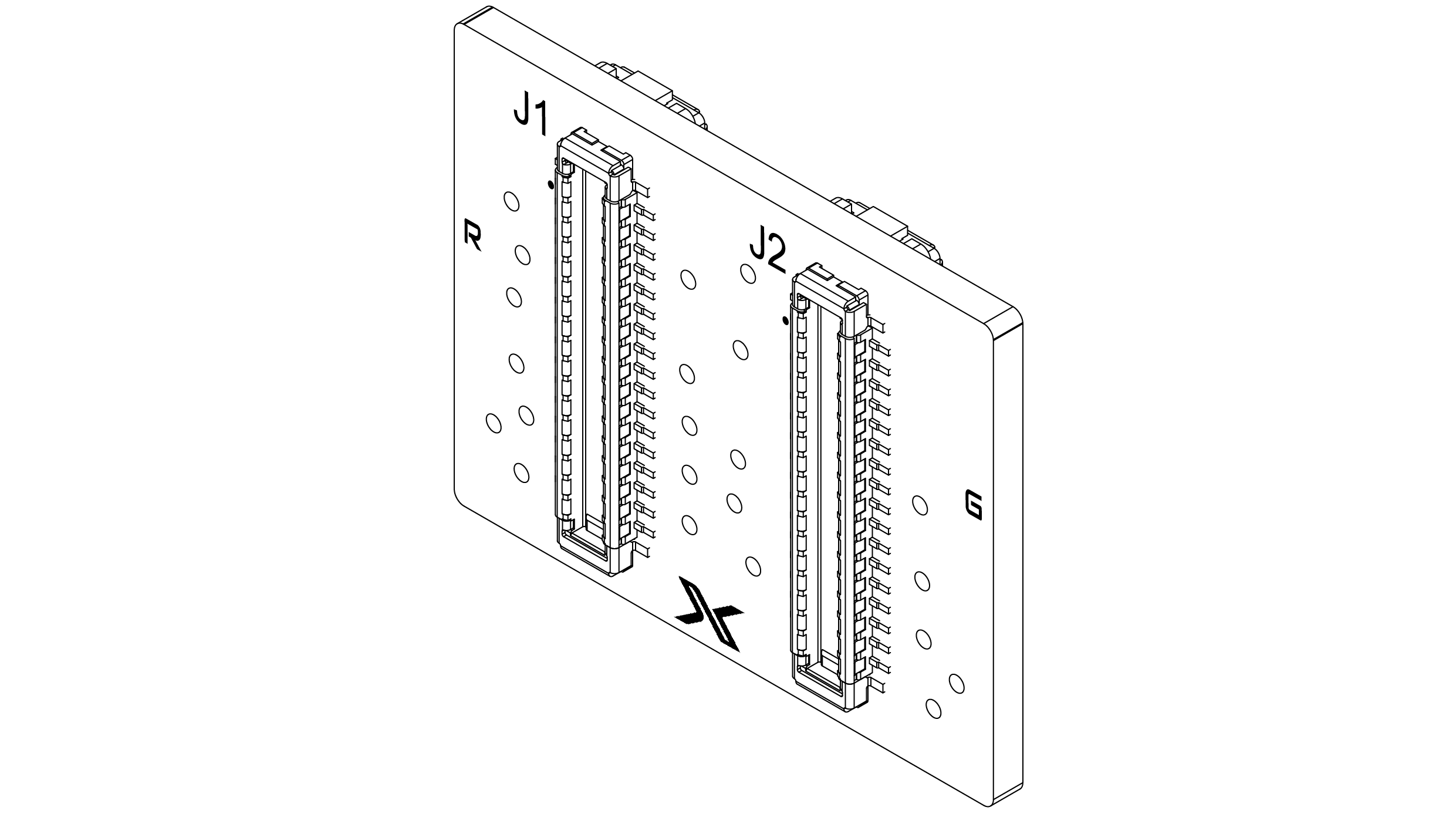

Adpt- NNx_X3_16ch Overview

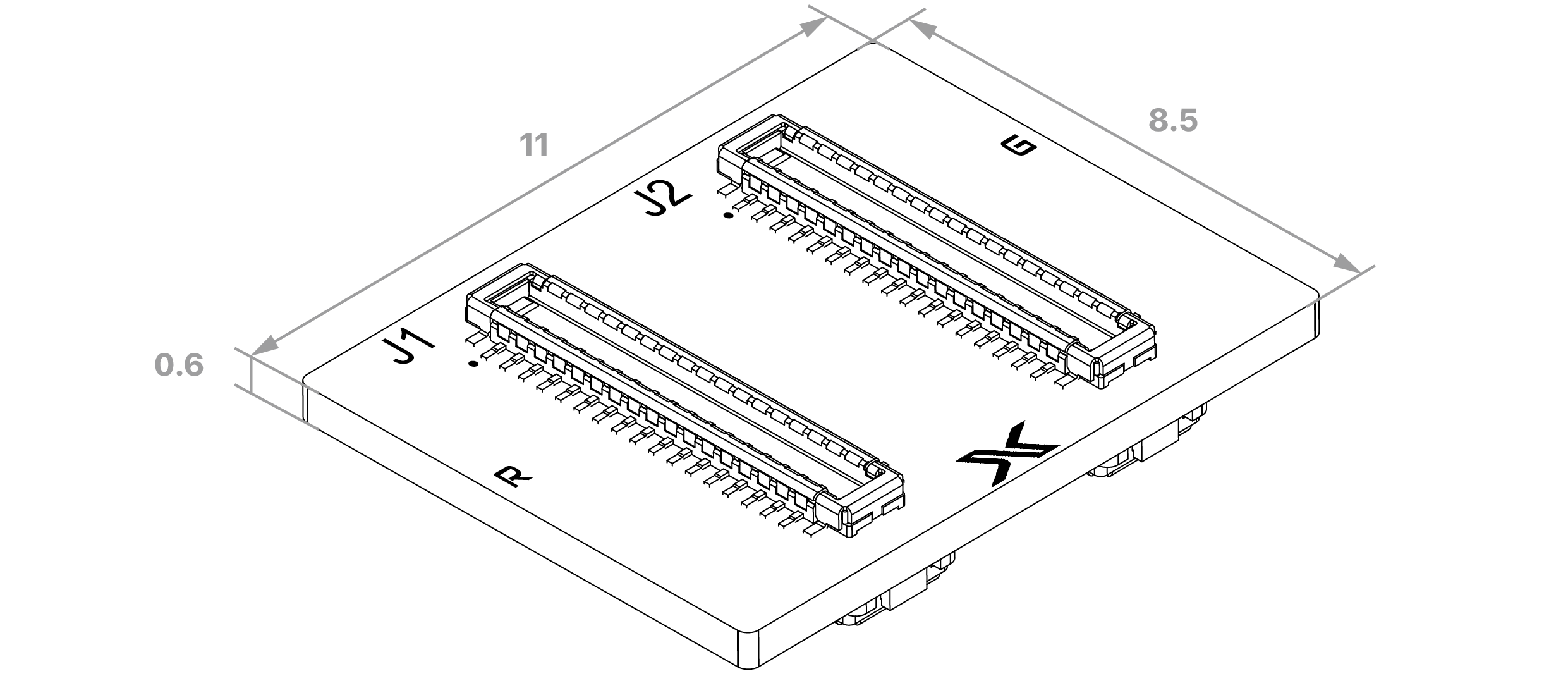

Dimension
unit: mm
Connector
- Molex PN: 505070-3422
- 16-channel NeuroNexus X-series connectors
- X3 Headstage
- NeuroNexus X-series 16-channel probes
Headstage
Probe

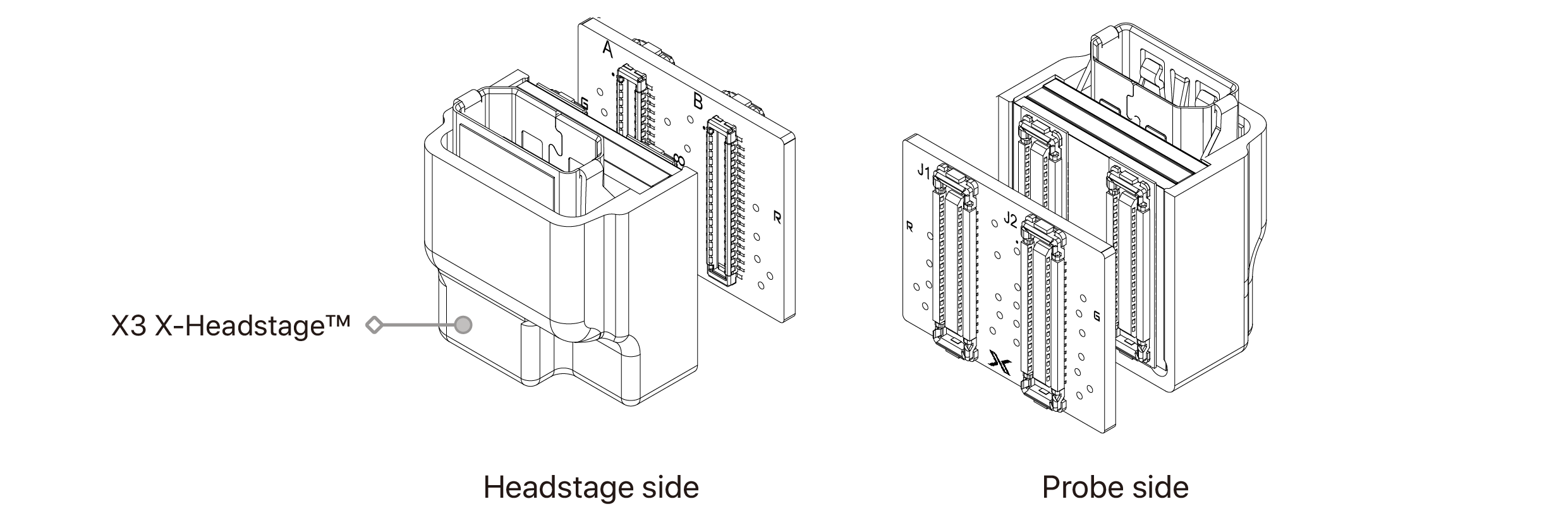

Compatibility
Key Features
Probe Compatibility Expansion
Allows a single 32-channel X3 input to support two 16-channel NeuroNexus X-series probes.
Channel Remapping
Internally remaps channels to ensure correct and deterministic signal routing from each probe to the acquisition system.
Compact and Modular Design
Maintains a small footprint suitable for space-constrained experimental setups.
Signal Integrity Preservation
Designed with matched routing to minimize crosstalk and maintain low-noise performance.

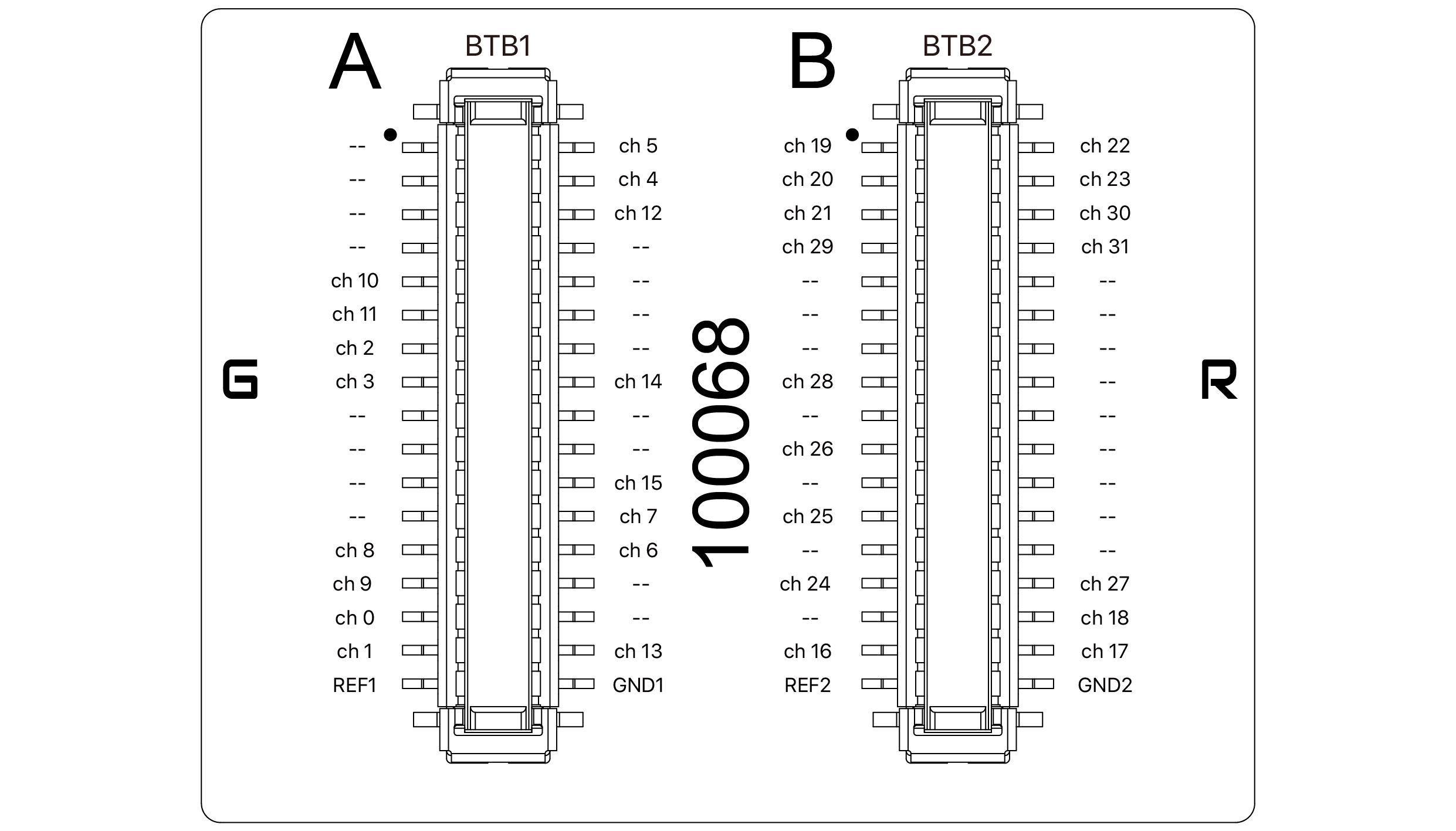

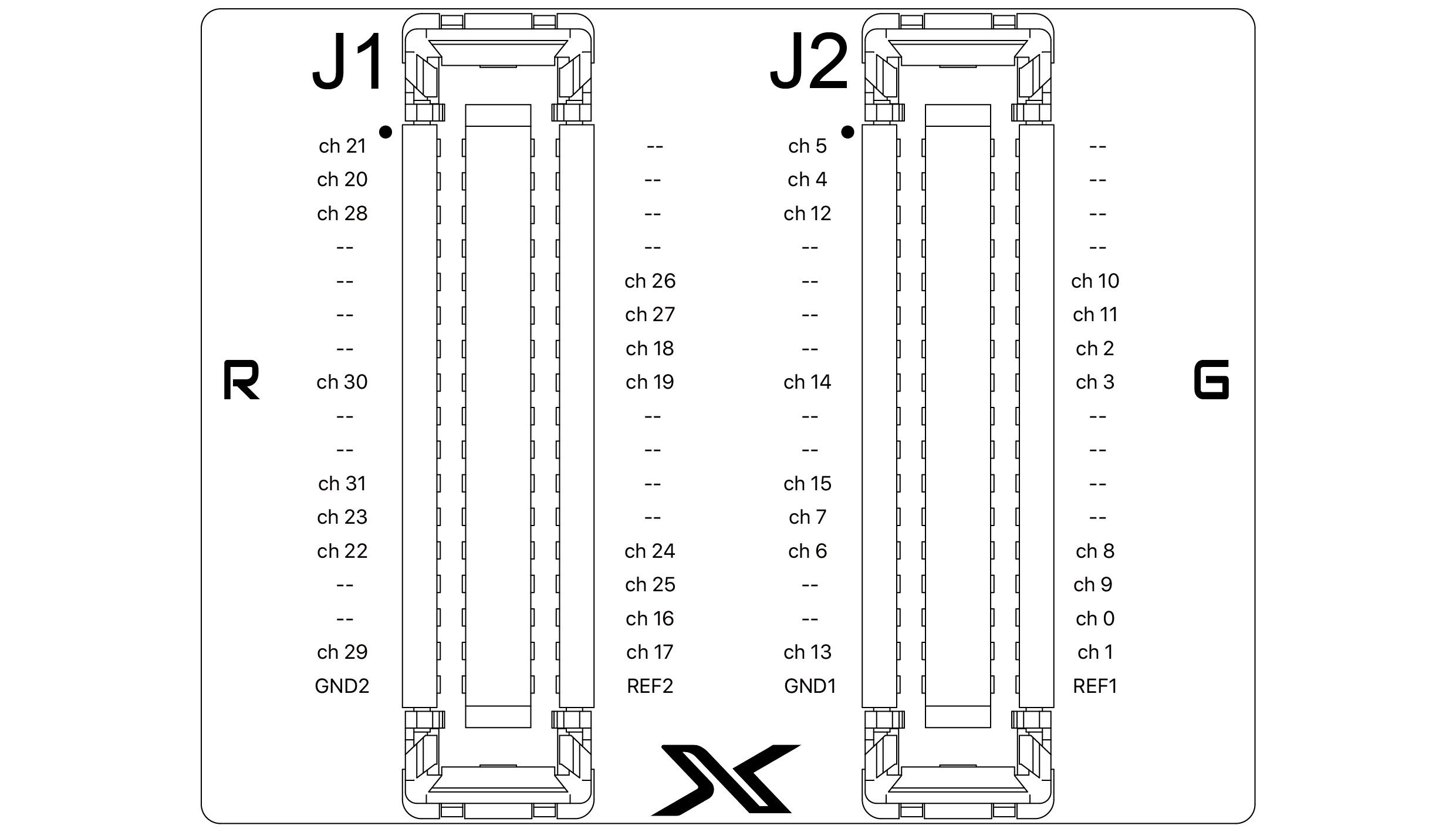

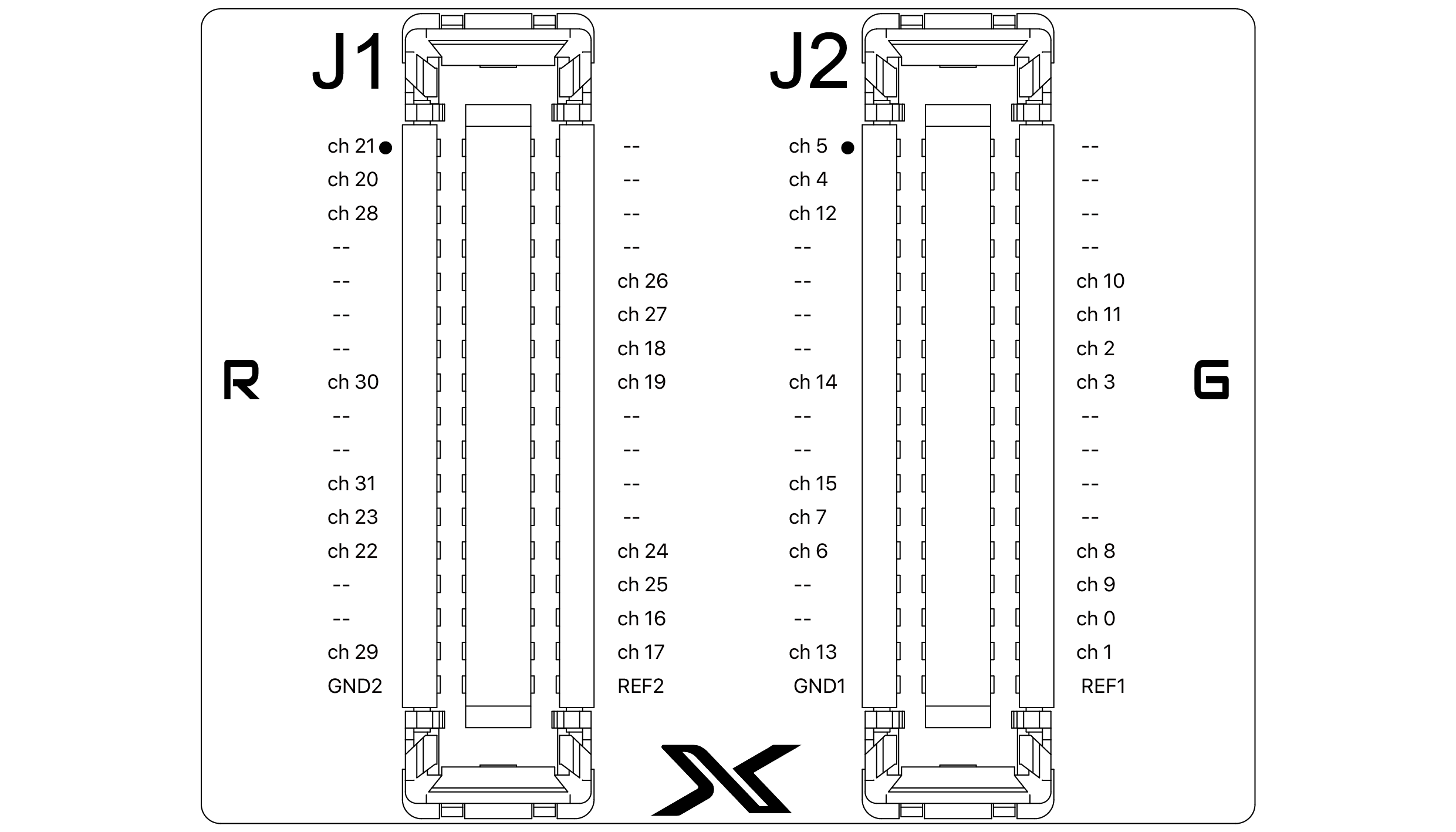

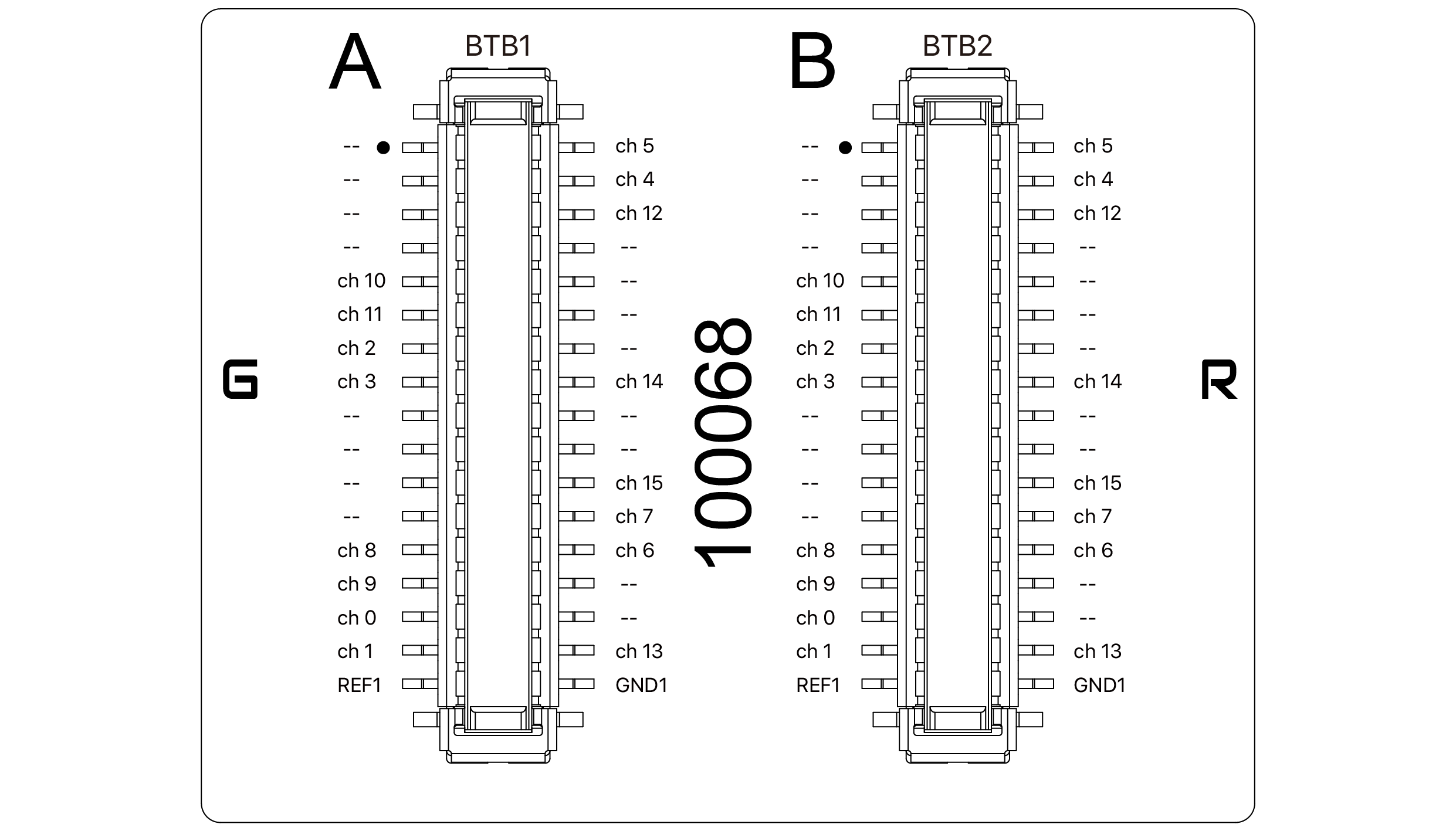

Pin Map
