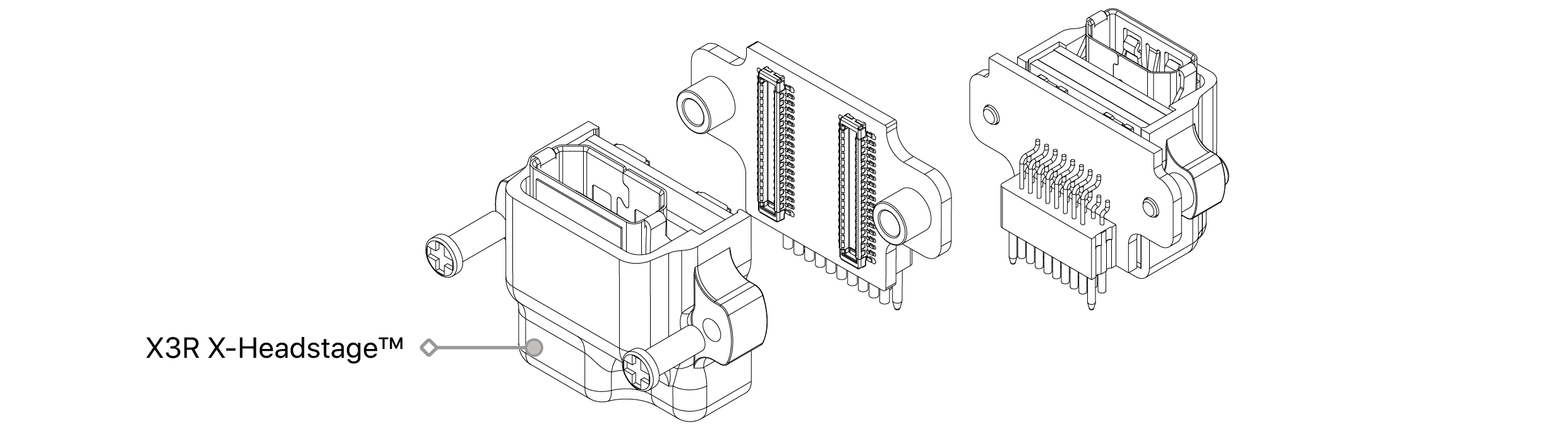

The Adpt-Omnetics series is designed to interface X3R32/64 headstages with probes using a support 16-, 32-, and 64-channel Omnetics connector's probe. Available in three configurations— standard with screw-locking for secure attachment, no-lock for a reduced footprint, and vertical to provide additional clearance near the craniotomy—these adapters enable flexible integration into diverse experimental setups while maintaining a compact and reliable connection.


Adpt-OM16 Overview

test1

Adpt-OM16




Connector

    Headstage

  • Molex PN: 505070-3422

    • Probe

  • Omnetics PN: A79017-001

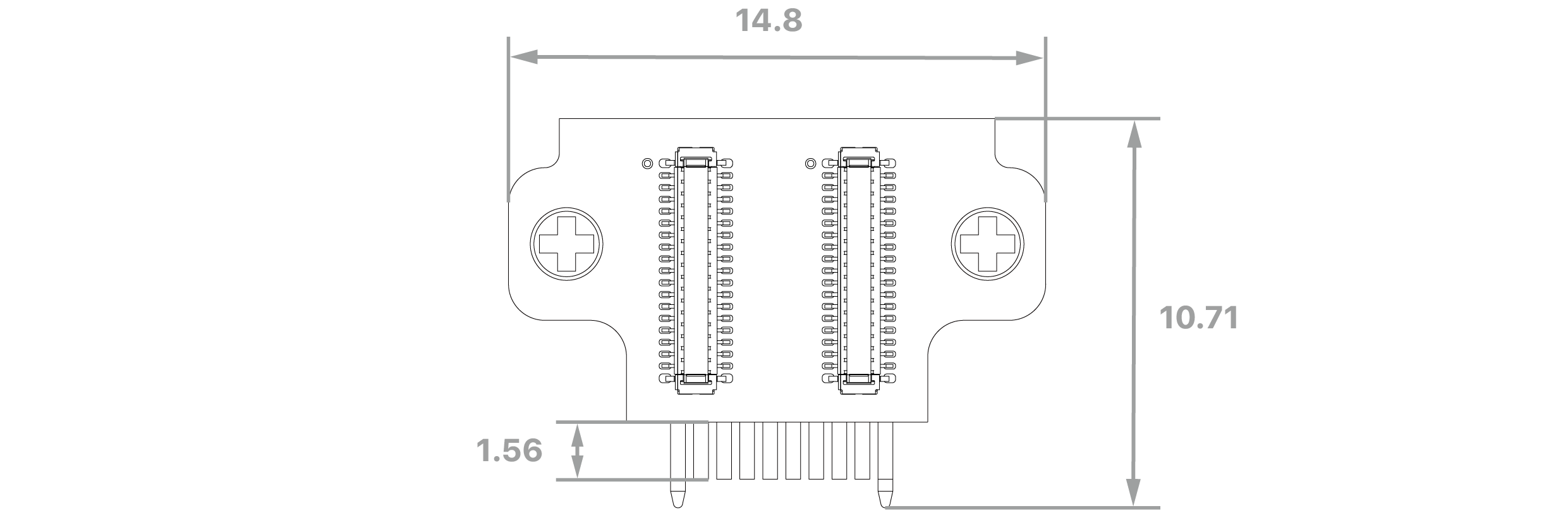

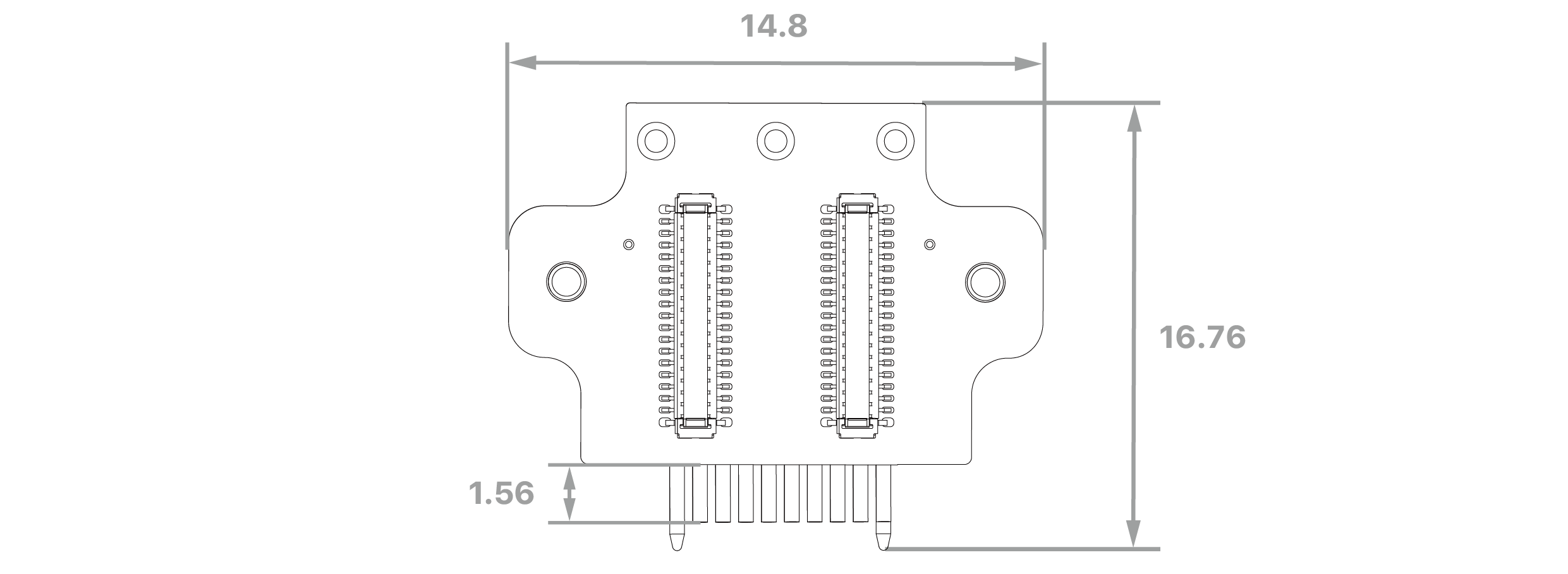

Dimension

test1

unit: mm




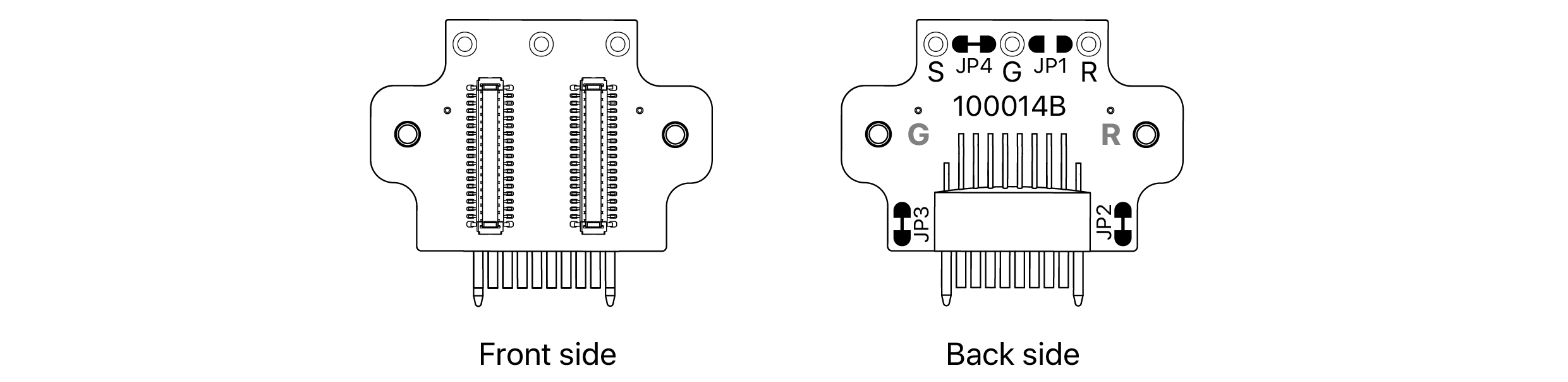

Versions

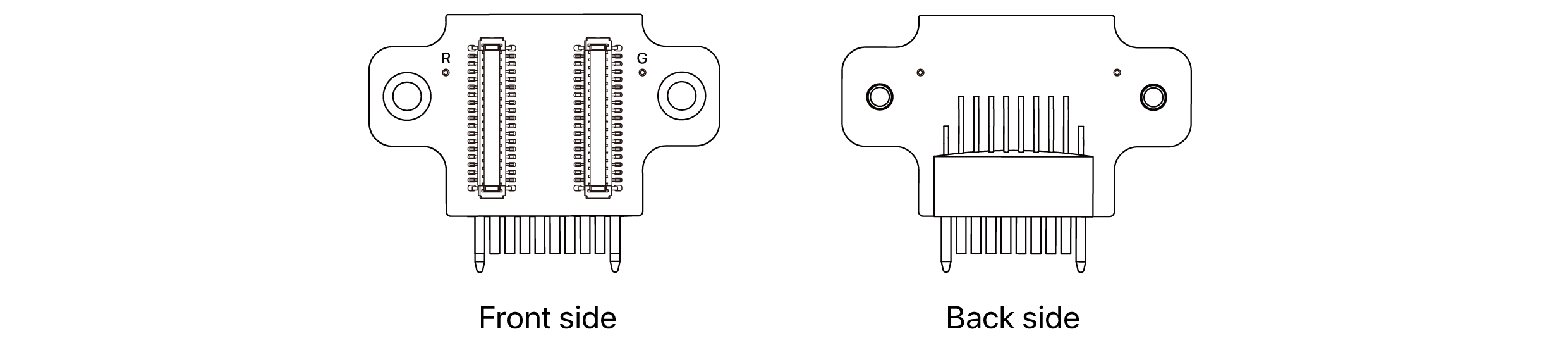

V1: Identified by PCB marking '100014' or by the blue board color when the marking is absent.

original design

test1

Front side         Back side


V1.1: Identified by 100014A on PCB

test1

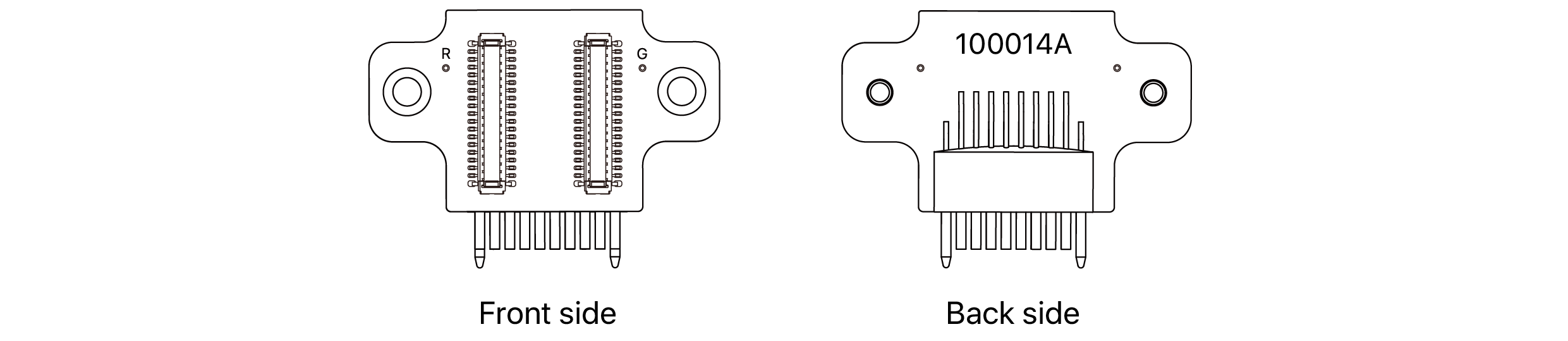

Front side         Back side




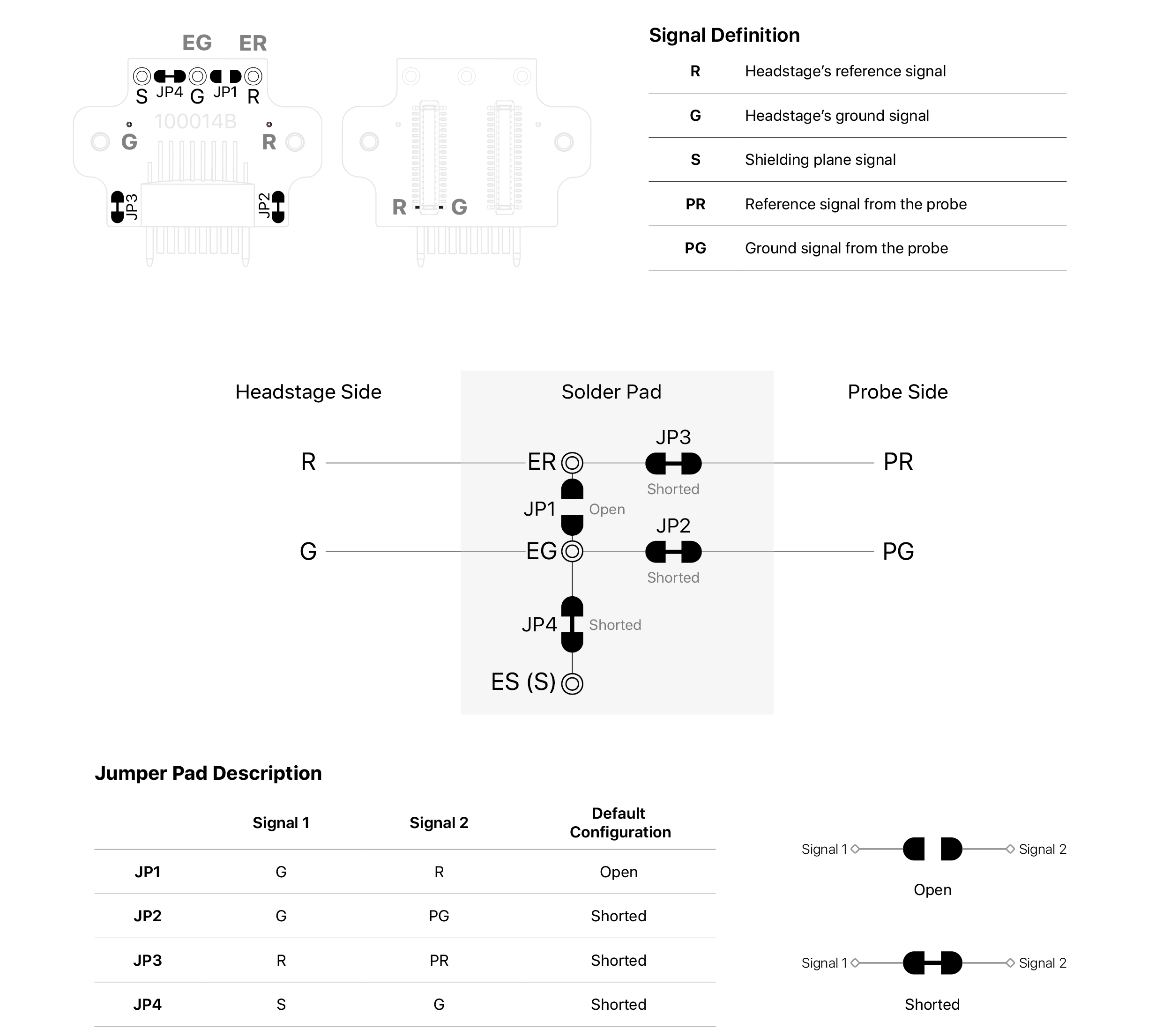

Ground & Reference Configuration

V1 Adapter (SKU: Adpt-OM16v1)

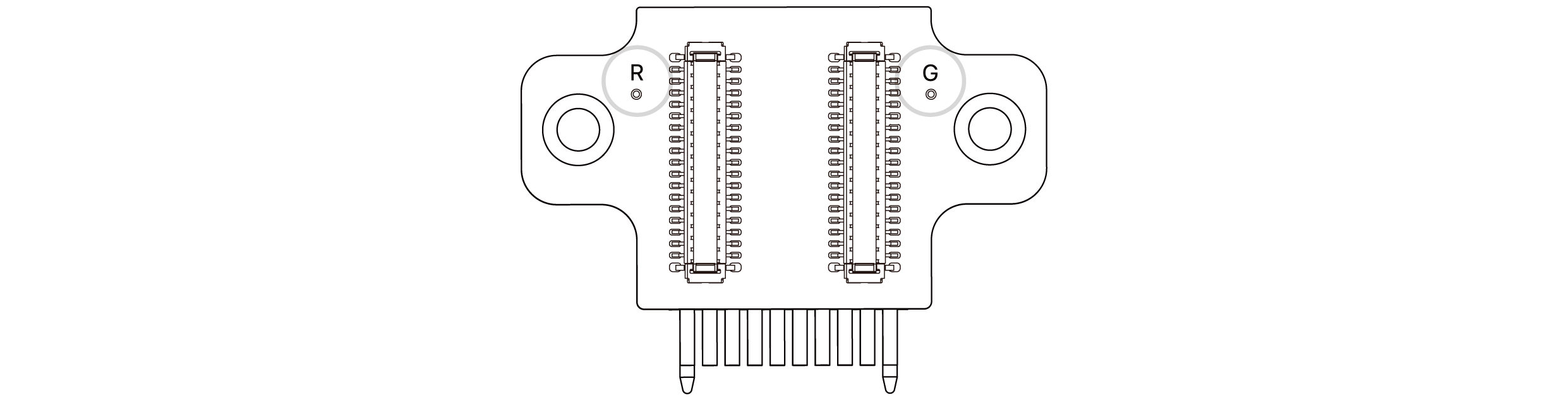

  • Ground (G) and reference (R) signals are independent by default.
  • To short them together at the adapter, solder a short wire between the G and R pads.


test1

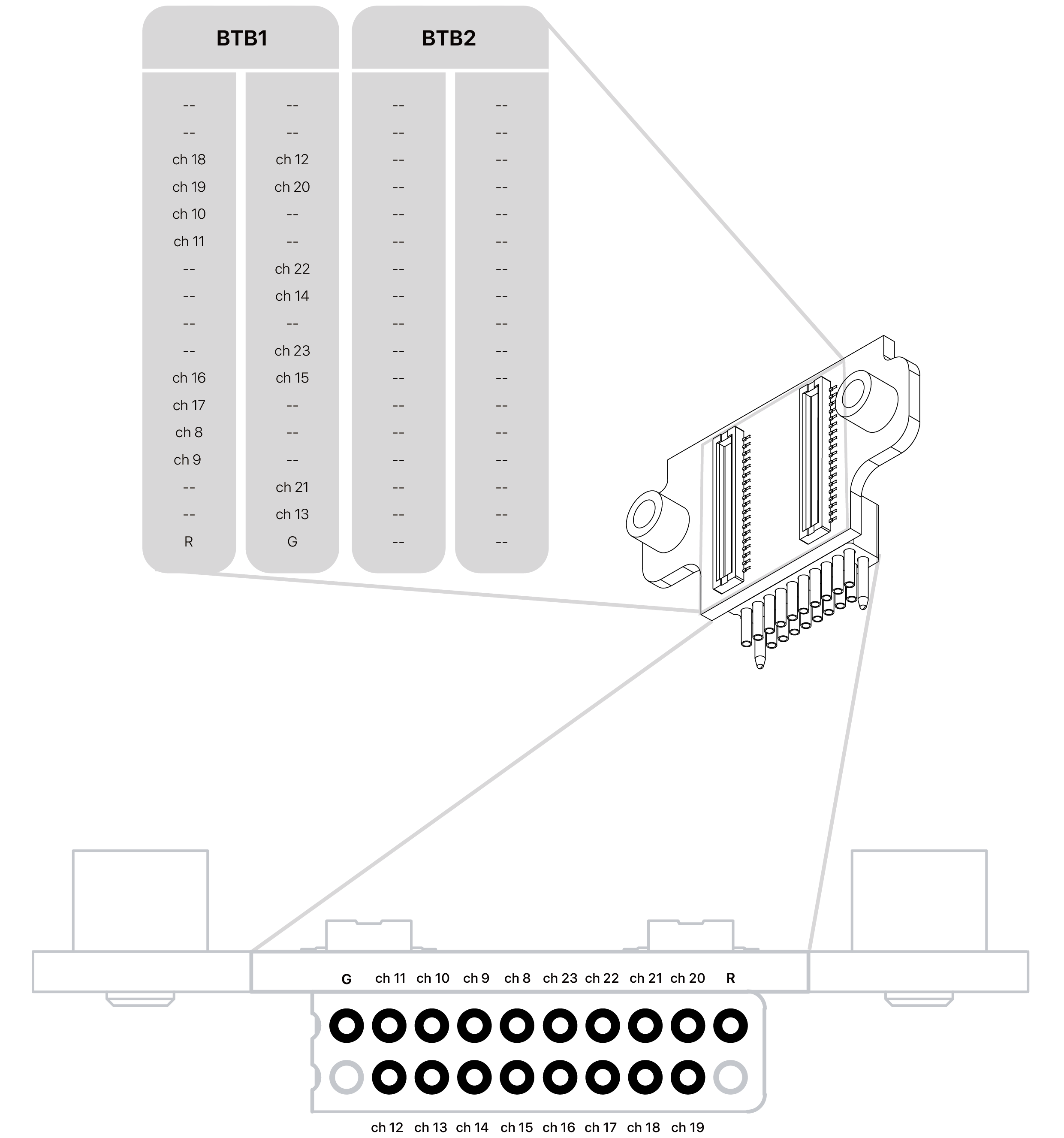

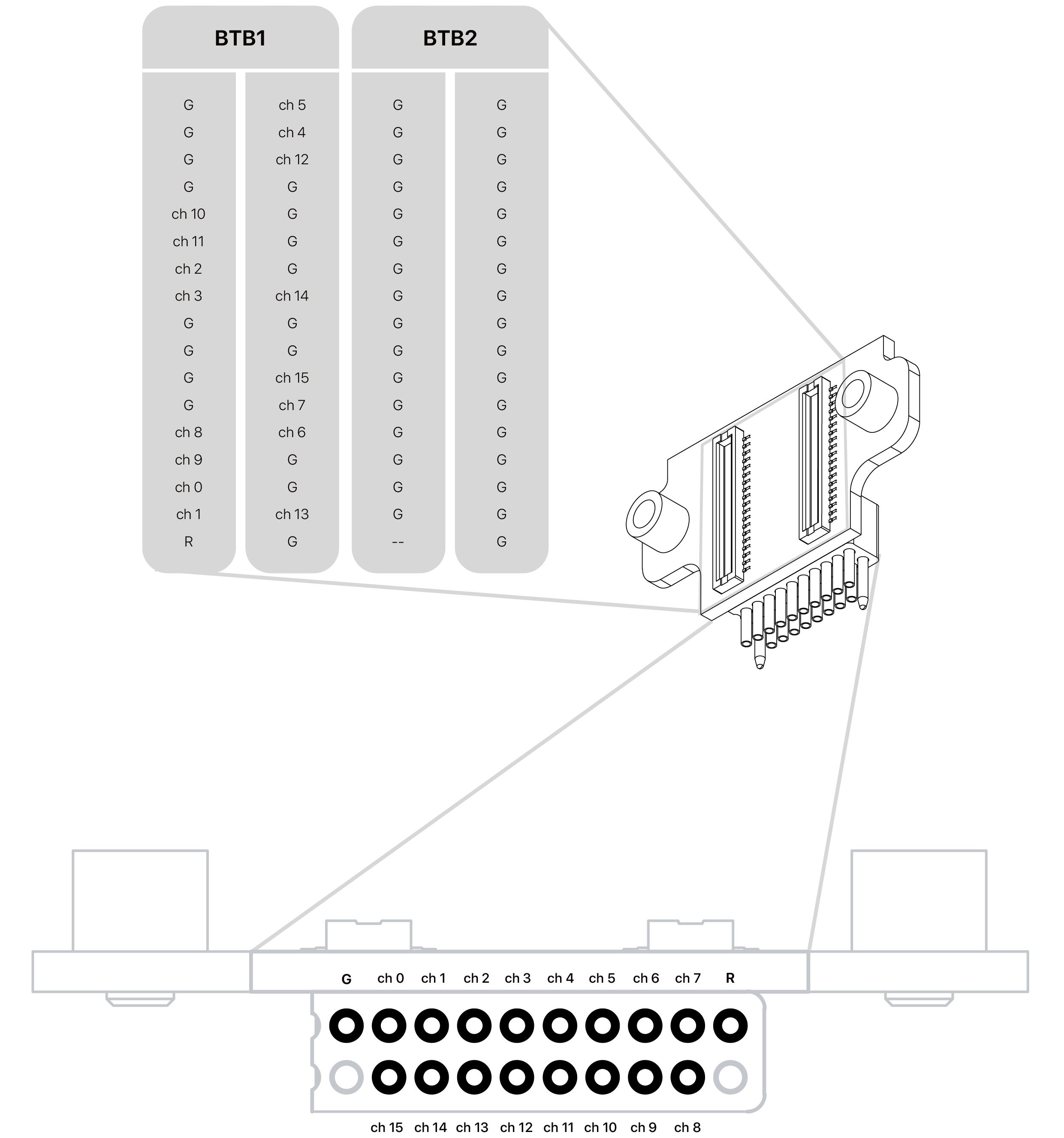

Pin Map

V1.1: Identified by 100014A on PCB

test1




V1: Identified by PCB marking '100014' or by the blue board color when the marking is absent.

test1
