Overview

The Adpt-Omnetics series is designed to interface KenteX X3(S)R headstages with probes using a support 16-, 32-, and 64-channel Omnetics connector's probe. Available in three configurations— standard with screw-locking for secure attachment, no-lock for a reduced footprint, and vertical to provide additional clearance near the craniotomy—these adapters enable flexible integration into diverse experimental setups while maintaining a compact and reliable connection.

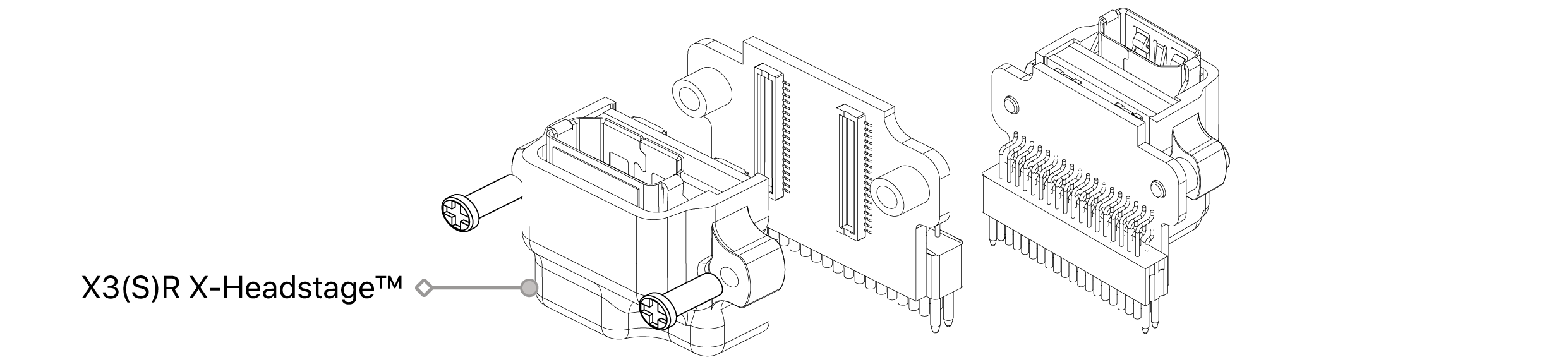

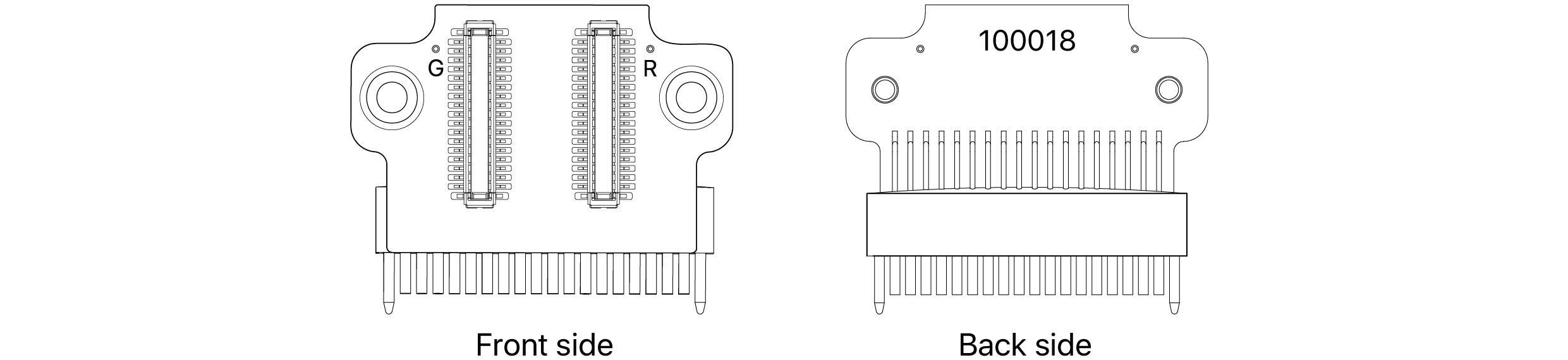

Adpt-OM32 stim Overview

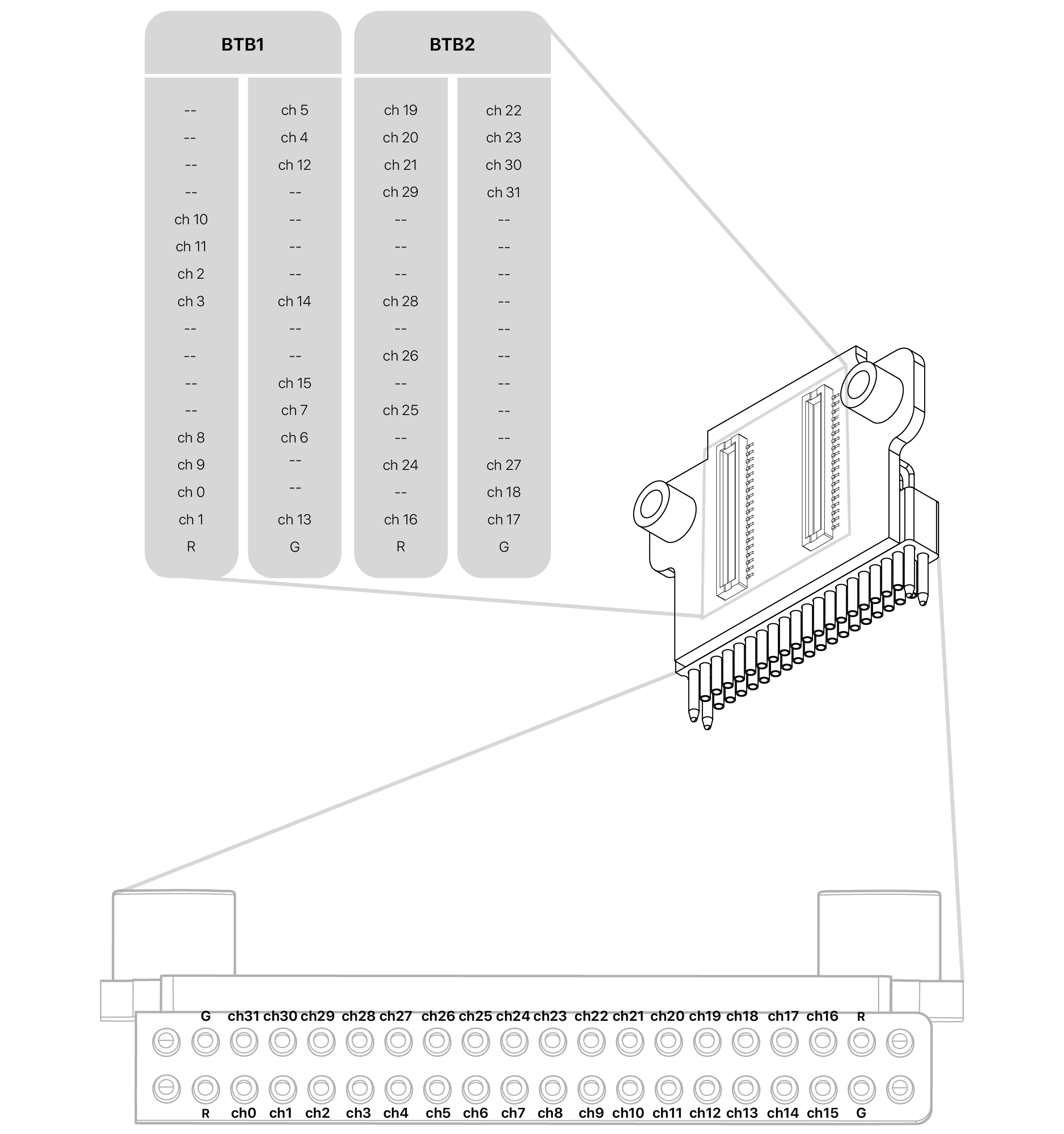

text1

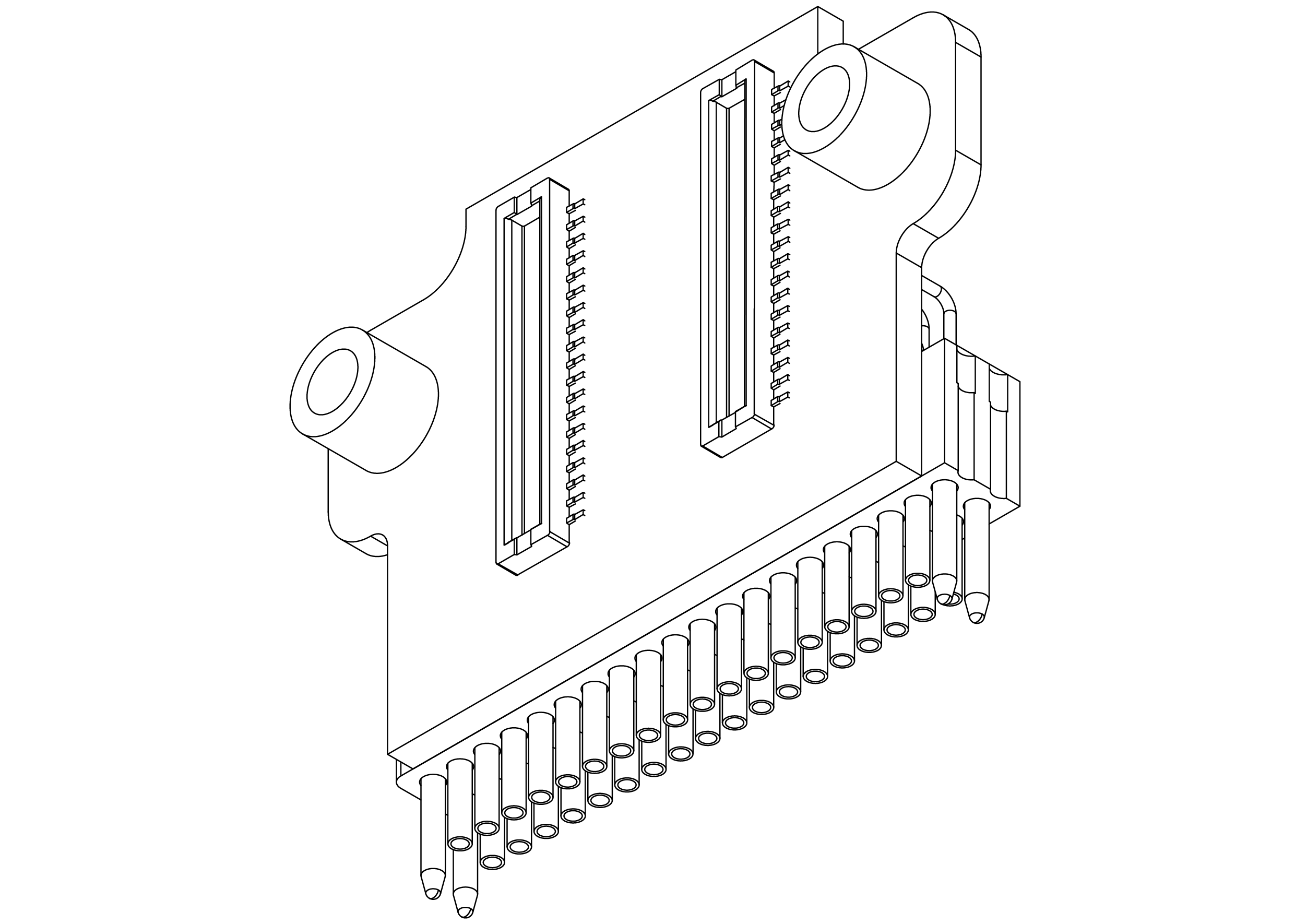

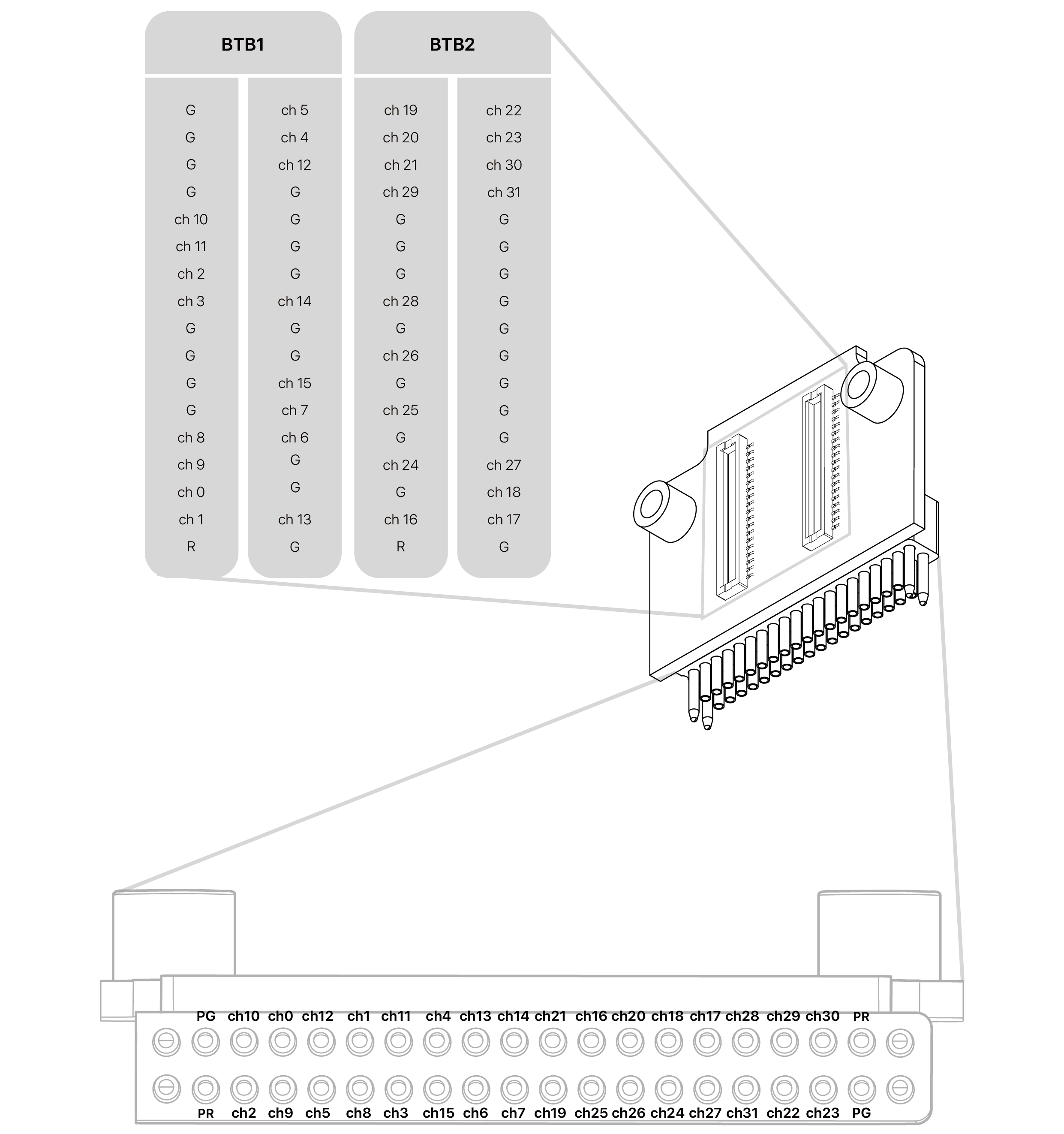

Adpt-OM32

Connector

Headstage

Molex PN: 505070-3422

Probe

Omnetics PN: A79017-001

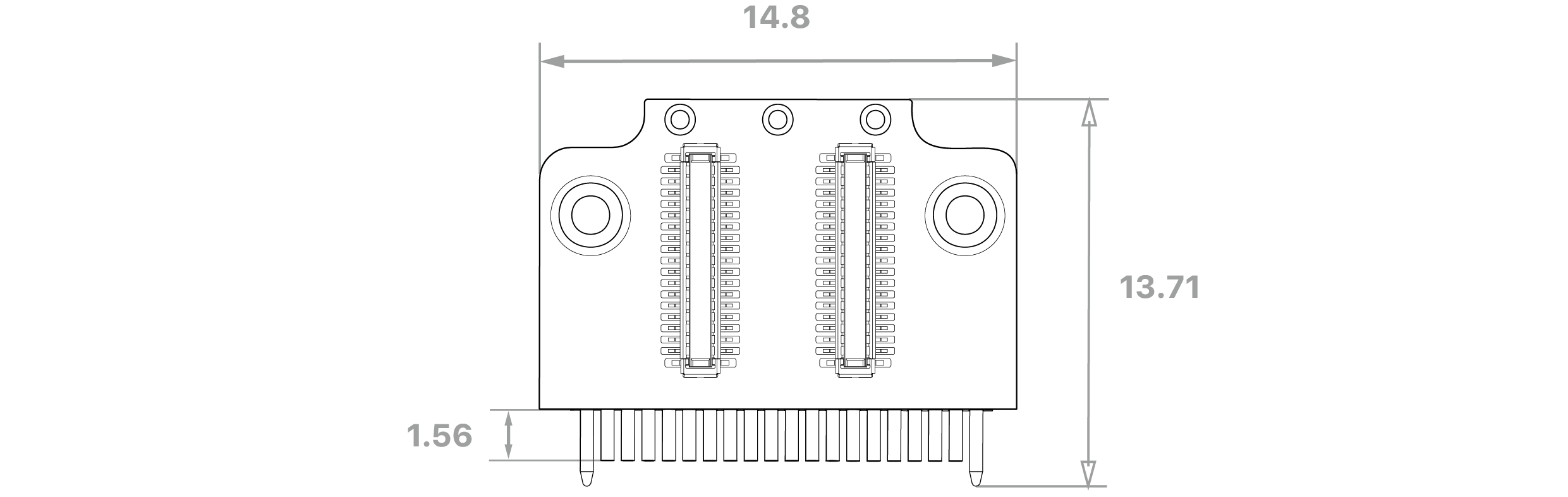

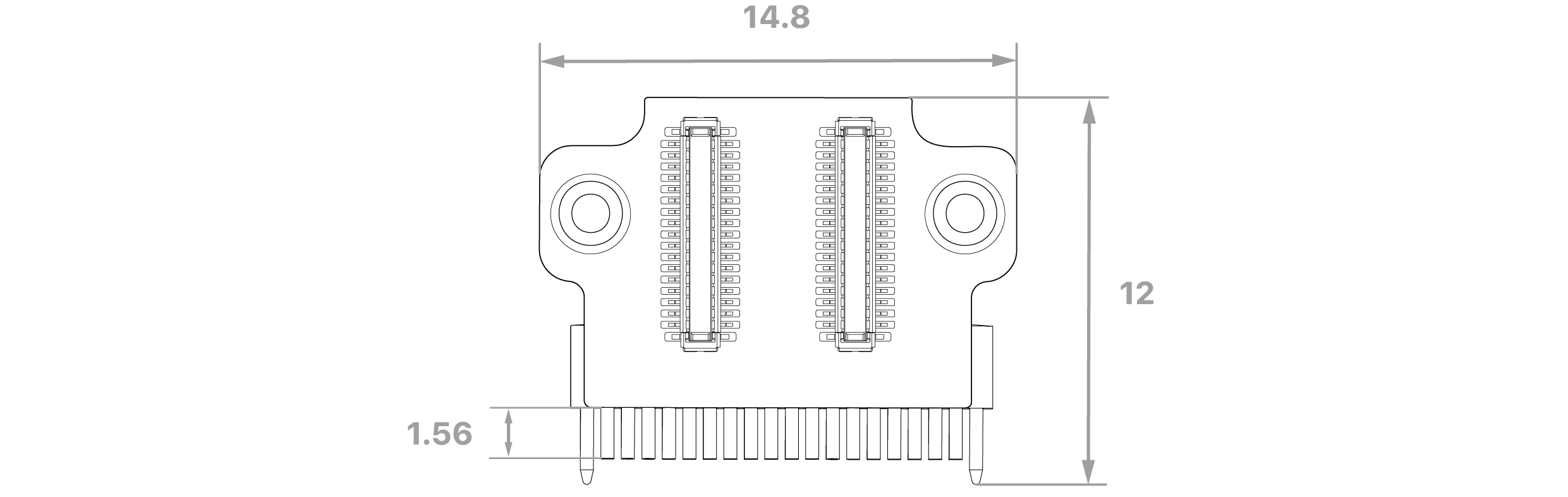

Dimension

test1

unit: mm

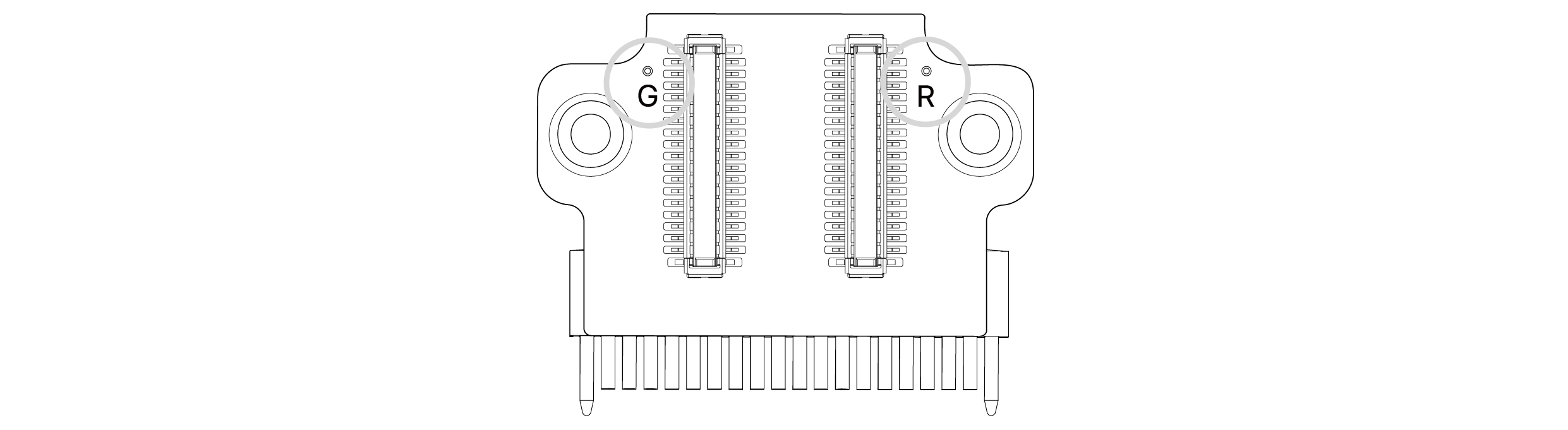

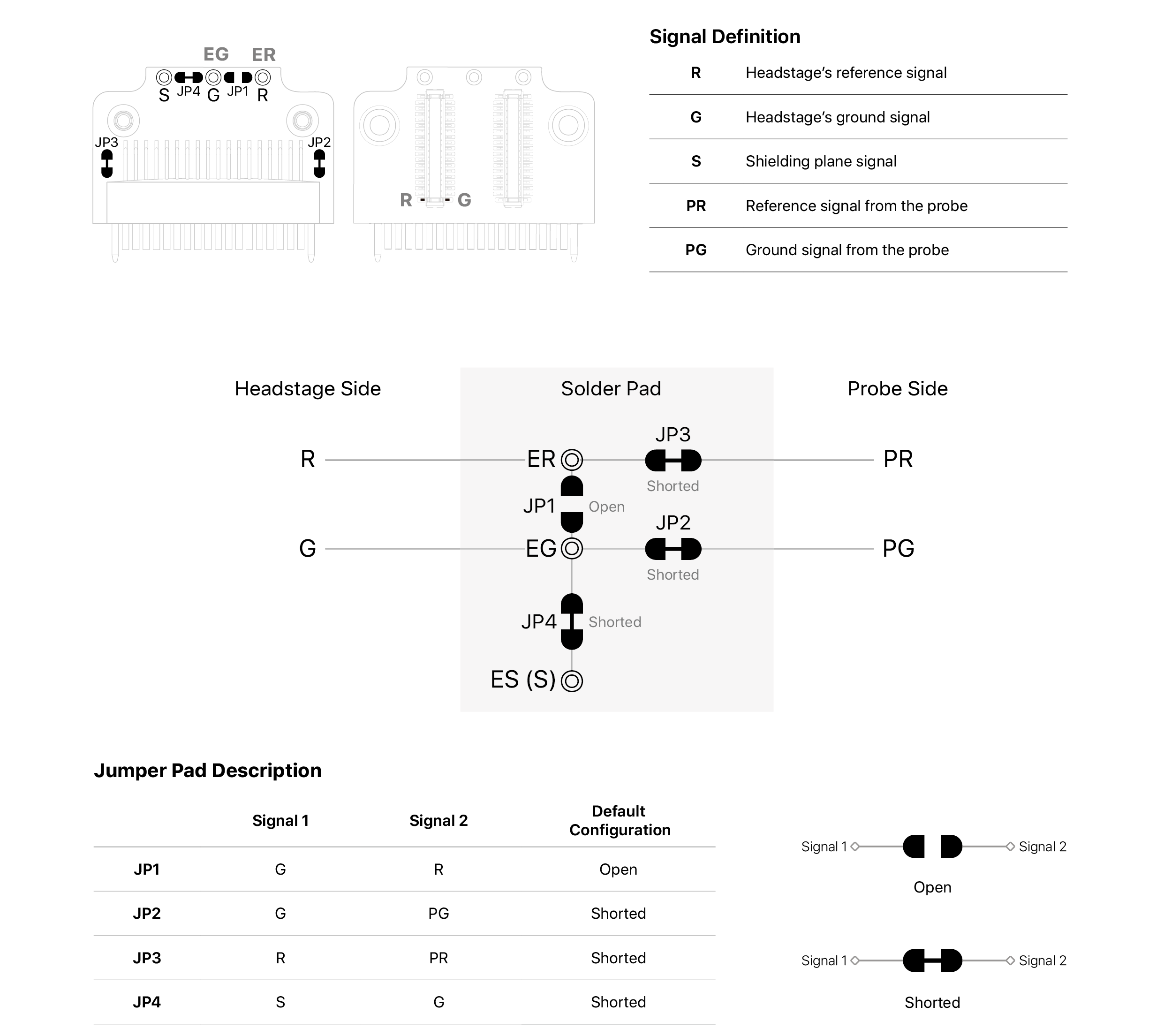

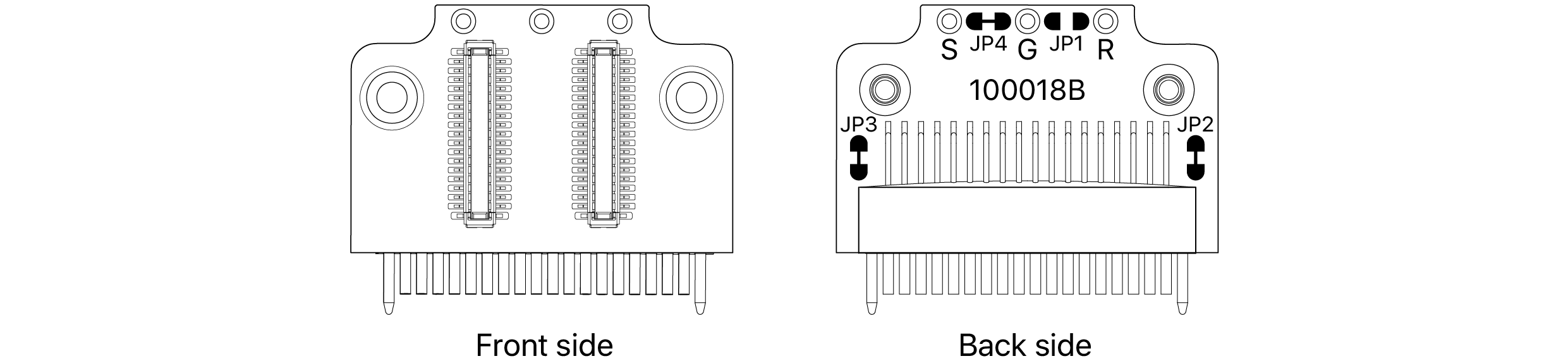

Ground & Reference Configuration

OM32 Stim Adapter (SKU: Adpt-OM32-Stim)

Ground (G) and reference (R) signals are independent by default.
To short them together at the adapter, solder a short wire between the G and R pads.
