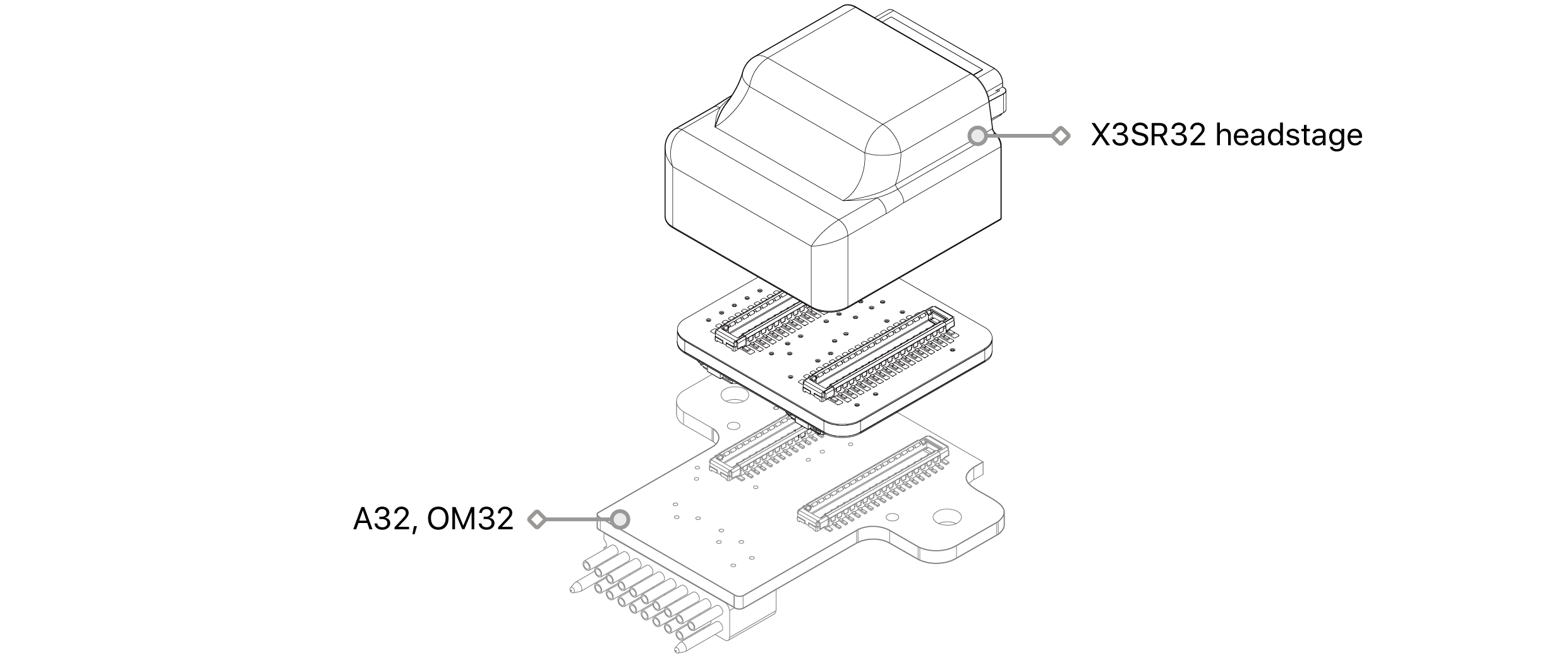

The SR Headstage Remapper is designed specifically for use with the X3SR32 headstage. It enables compatibility with standard probe adapters that lack the "SR" (Stim-Record) designation. This adapter enables users to connect SR-type headstages to a wider range of compatible adapters and also functions as a headstage cycle extender.


test1

Adpt-SRRemap

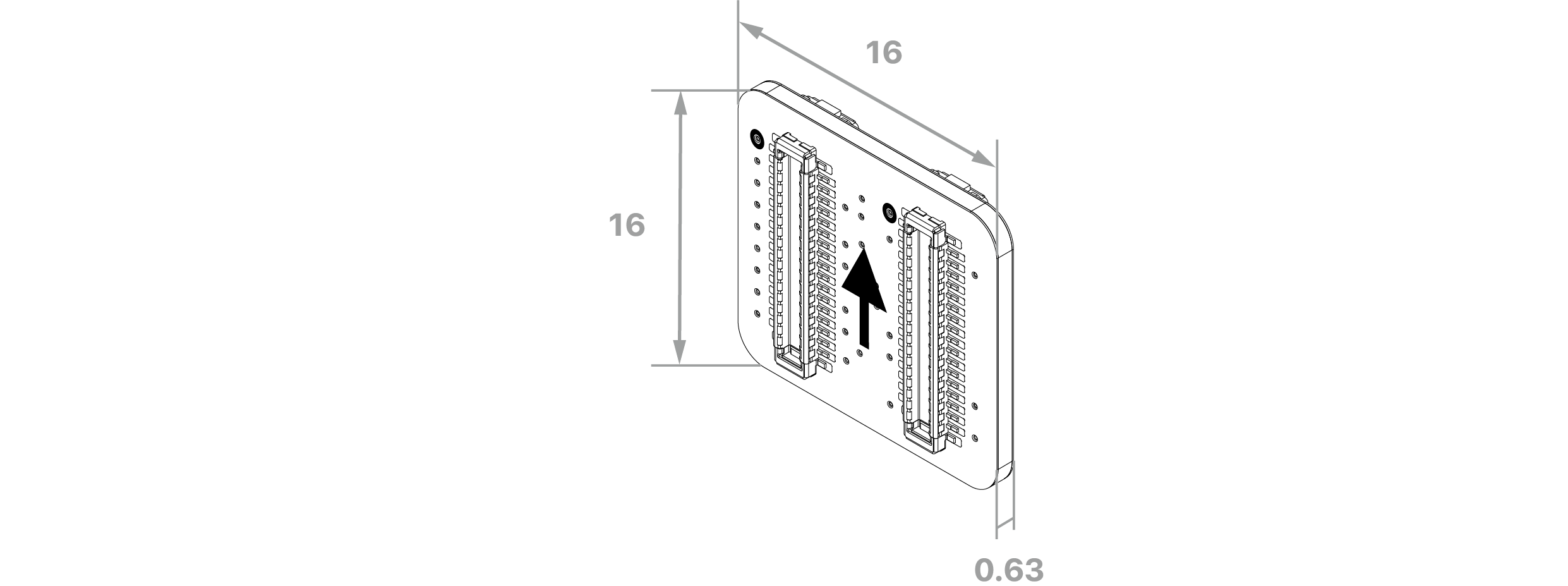

Dimension

test1

unit: mm

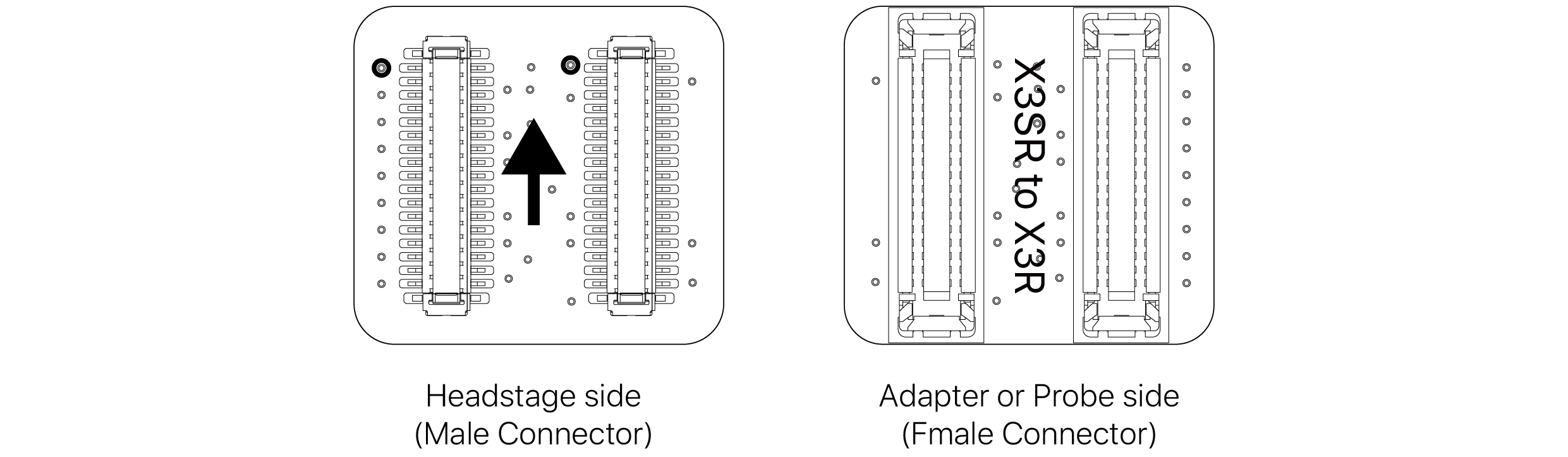

Connector

Headstage

  • 2X Molex PN: 505070-3422

    • Probe

  • Samtec PN: FOLC-110-01-S-Q

  • Compatiable NNx probes: A32, MRA32, OA32LP, OA32LP V2, OXA32LP


test1



NOTE : To securely attach the S-Armor headstage to the probe or probe adapter when used with a remapper or cycle extender, a longer screw (SKU: XHS-Screw-5mm) is required.




Key Functions

Probe Compatibility Expansion

Allows the X3SR32 headstage to interface with standard (non-SR) probe adapters.

Connector Cycle Extension

Serves as a protective, disposable intermediary that extends the connector life of the X3SR32 headstage during frequent connection and disconnection cycles.

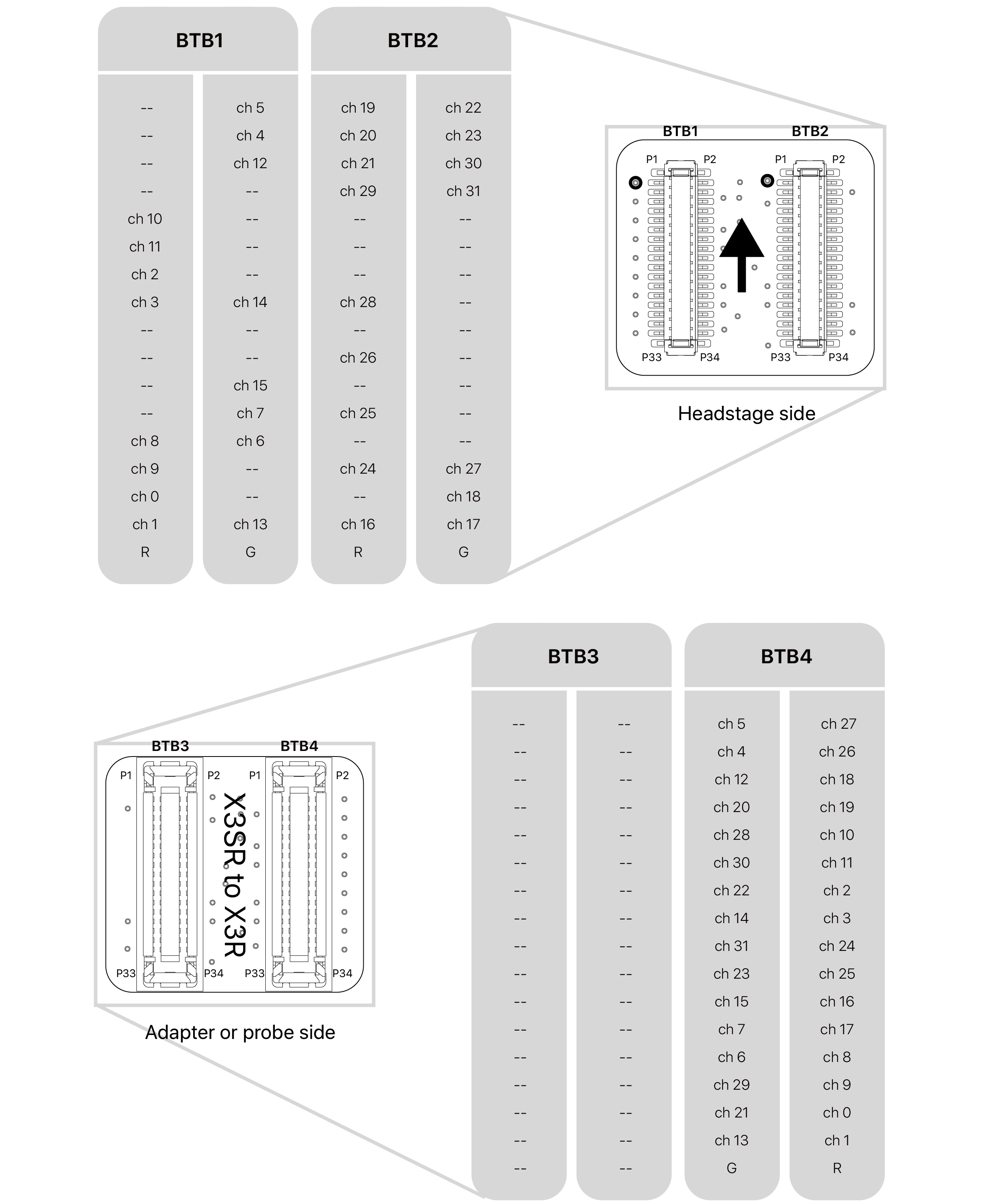

Pin Map

V1.1: Identified by 100011A on PCB
