Adpt-X6-EXT




text1







Overview

The X6 Cycle Extender (SKU: Adpt-X6-EXT) is a disposable interface adapter designed for use with X6 headstages. It provides a sacrificial connection point that helps reduce mechanical wear and tear on the X6 headstage connector from repeated mating cycles. This accessory prolongs the usable life of the expensive headstage connector by absorbing the connection cycles instead of the headstage itself.


text1

Adpt X6 EXT

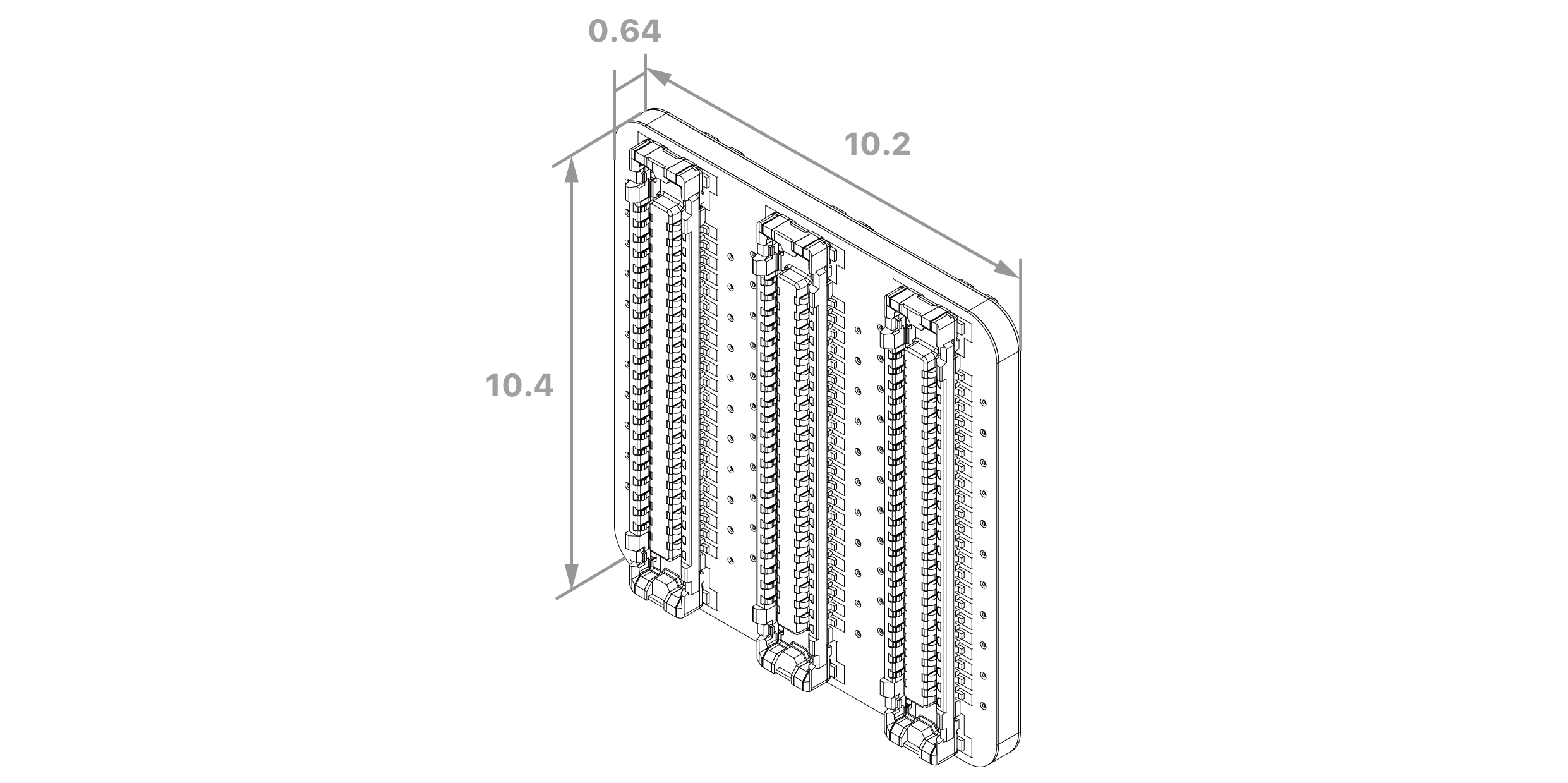

Dimension

text1

unit: mm

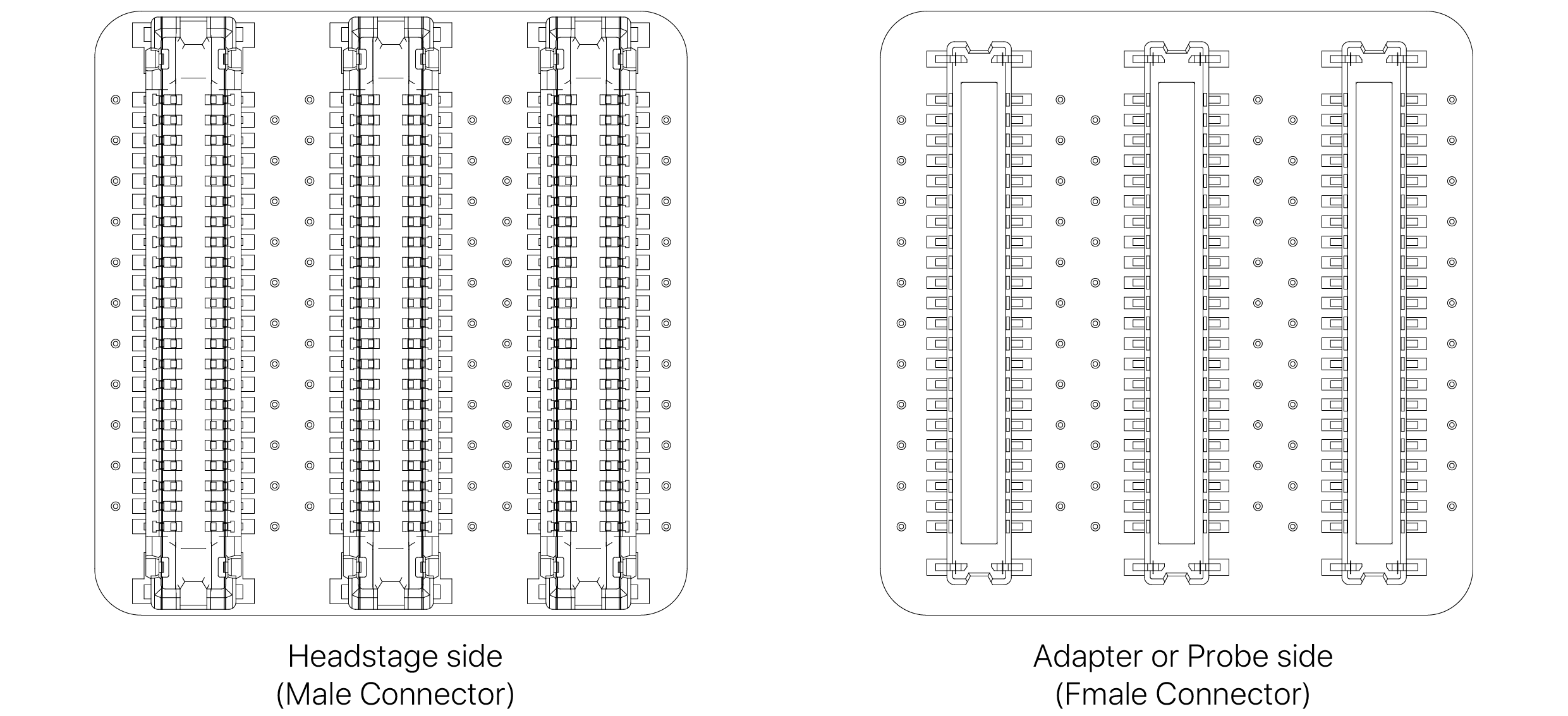

Connector

XDAQ

  • Yamaichi PN: PKS019-4011-0
  • Omnetics PN: A79623-001

Probe

  • Panasonic PN: AXG144144A




Key Functions

  • Serves as a replaceable cycle-limiting adapter for X6 headstages.

  • Protects the high-pin-count connector of the X6 headstage from wear due to repeated use.

  • Extends the service life of the headstage by isolating mating cycles to the extender.

  • Preserves signal integrity and system compatibility with X6 acquisition hardware.

  • Ideal for high-usage research environments requiring frequent headstage handling.




Pin Map

text1
