Tester-Stim-X3

Overview

The X3 Headstage Stimulation Test Module is designed to verify the stimulus waveform generated by X3SR headstages. By connecting the module to a dummy 1 kΩ resistive load, users can safely observe and validate stimulation output characteristics without connecting to biological tissue.

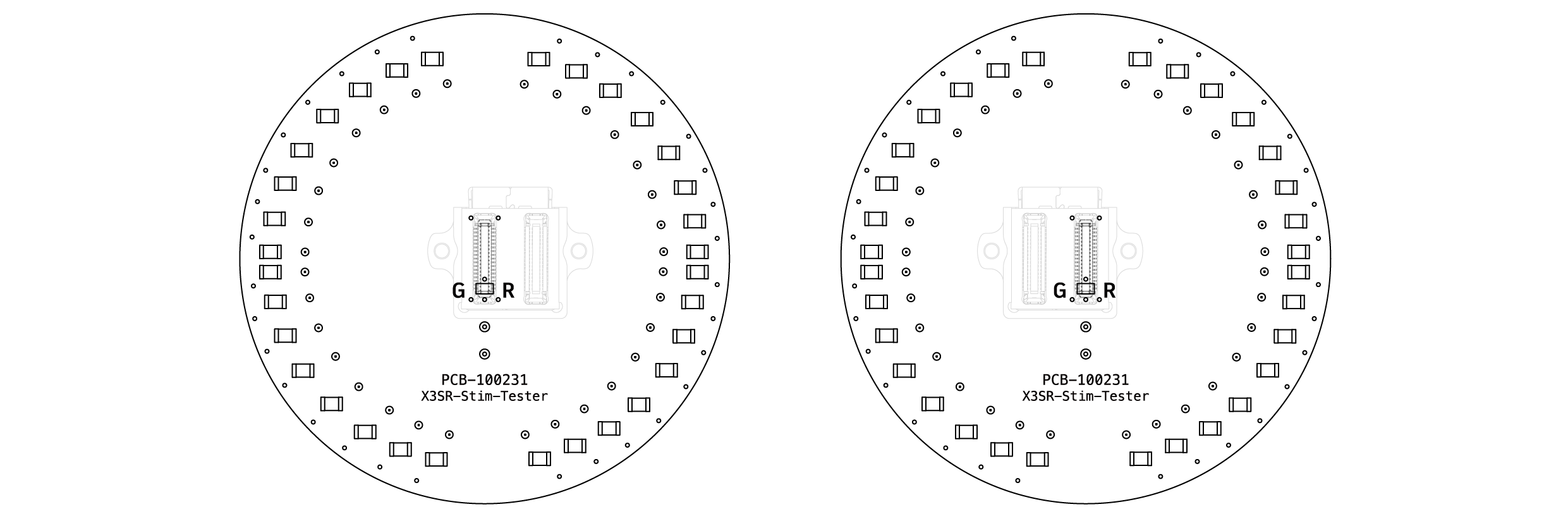

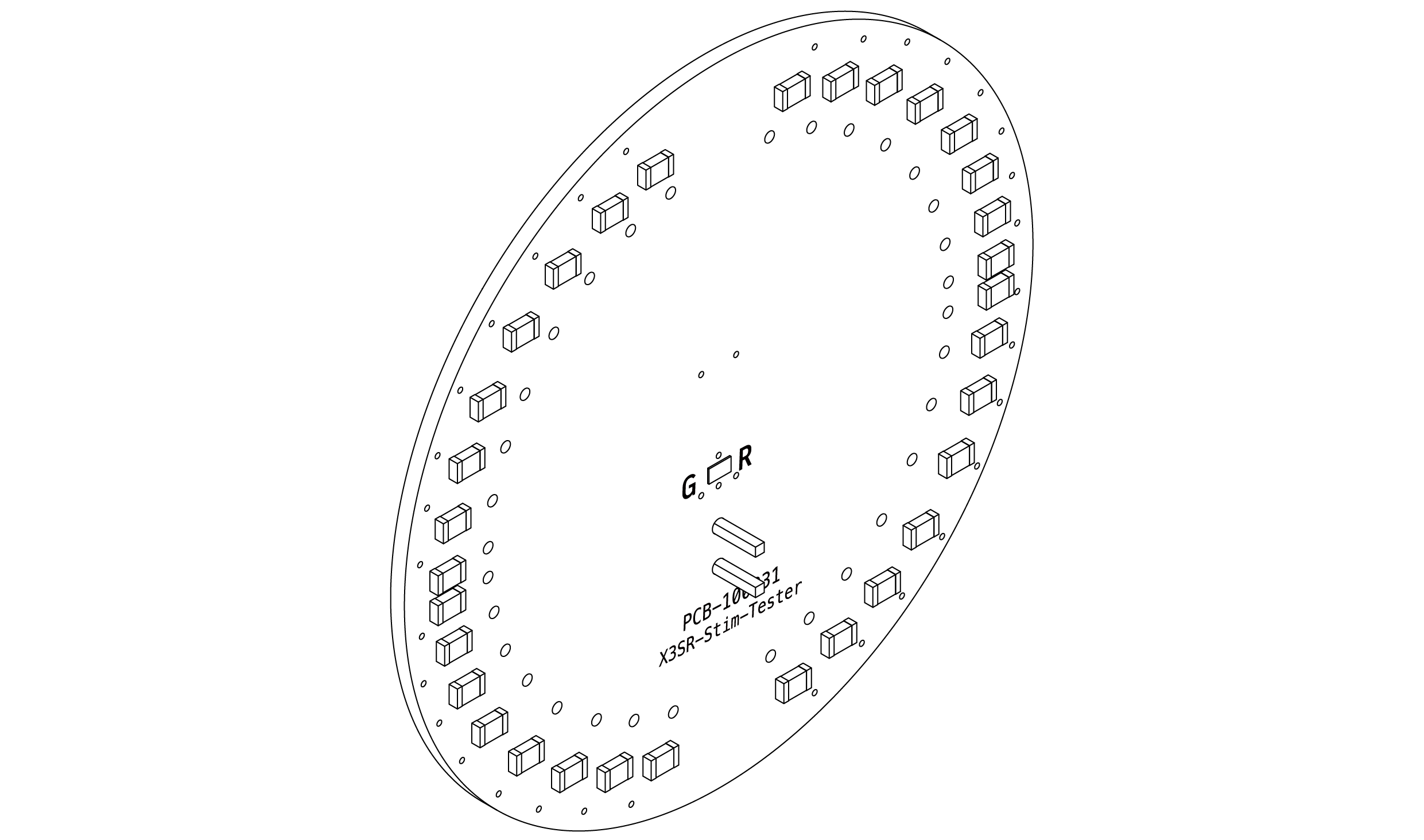

Tester-Stim-X3 Overview

Test Operation

Due to the keyed connector pin orientation, the X3 Headstage supports left- and right-side connections. Users should alternate the connection orientation to verify stimulation waveforms on each side, ensuring complete testing while preventing incorrect insertion or electrical misalignment.

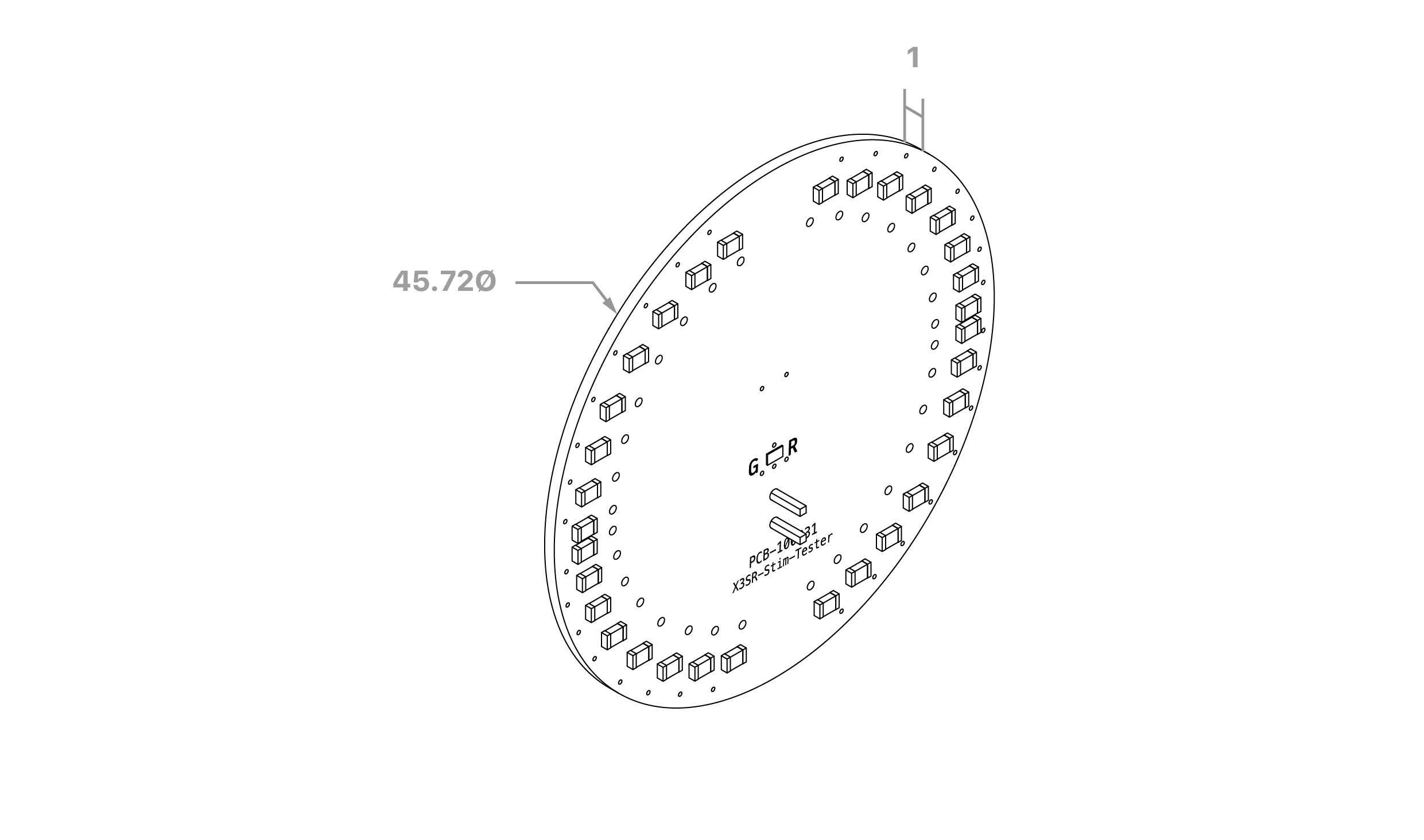

Dimension

unit: mm

Compatibility

• Compatible with X3SR headstages
• Not compatible with non-stimulation X3 headstage variants

Ground & Reference Configuration

PCB-100231 X3SR-Stim-Tester

---
