Adpt-X3R32-M1P32




text1

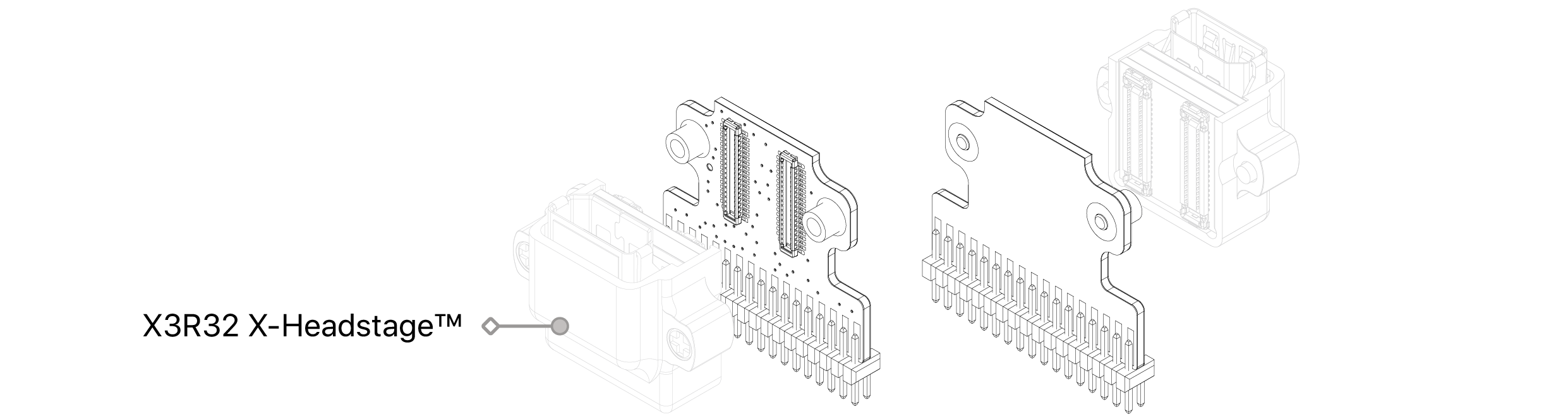

Overview

The X3R32 Adapter to Pin Header 32ch is designed to facilitate connectivity between X3R32 headstages and 32-channel interface boards or custom PCBs equipped with standard 2.54 mm pin headers. This adapter provides direct breakout access to all 32 channels for development, testing, and integration purposes. It is compatible with X3R32 headstages.


Adpt_X3R32_M1P32 Overview

text1




Connector

    Headstage

  • Molex PN: 505070-3422

    • Probe

  • 1.00mm_Pin Header_34P(2x17)

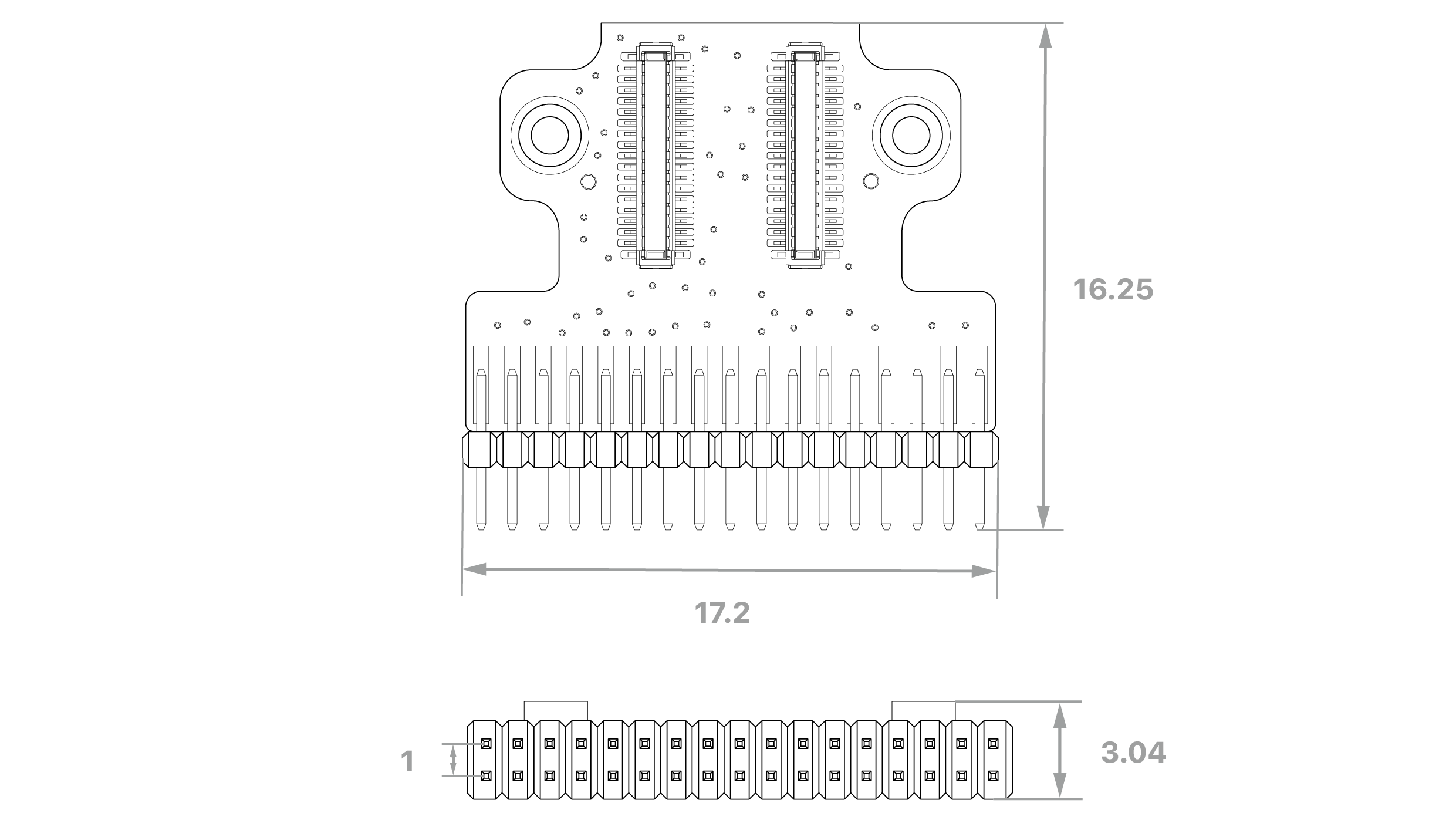

Dimension

text1

unit: mm




Key Features

  • Universal Compatibility

    • Supports X3R32 headstage configurations.

  • Pin Header Interface

    • Connects seamlessly to 32-channel EIBs featuring 1mm socket connectors.

  • Compact Design

    • Maintains a small footprint for space-constrained setups.




Versions

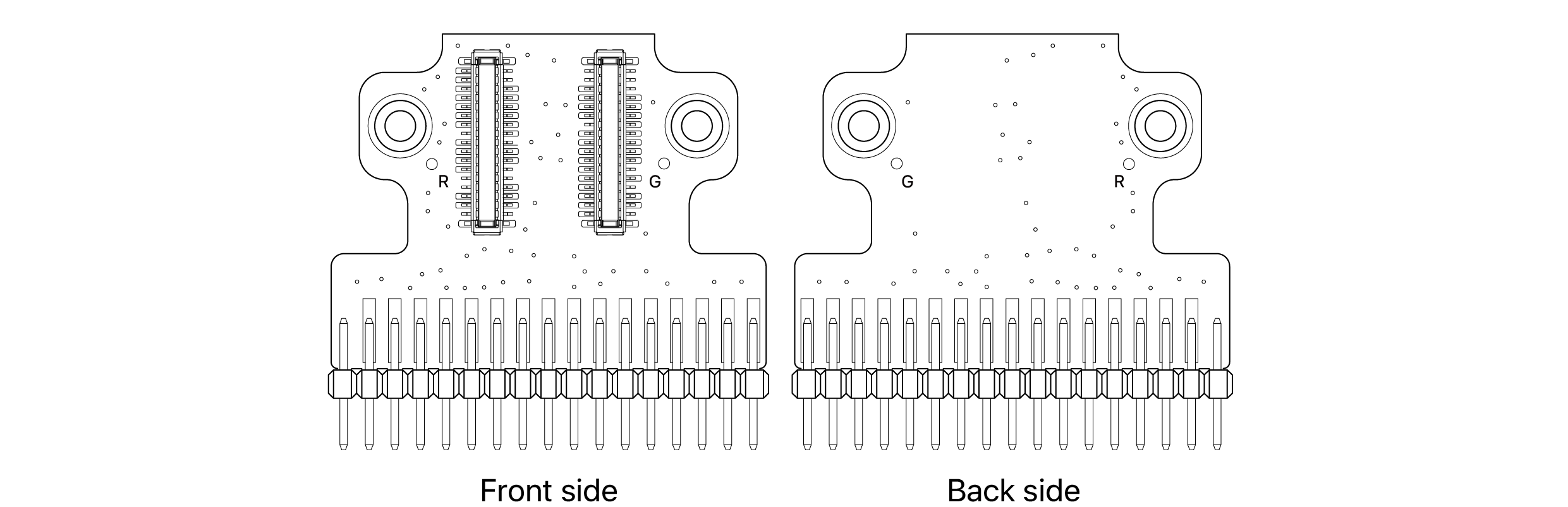

V1: Identified by PCB marking '100161' or by the blue board color when the marking is absent.

original design

text1

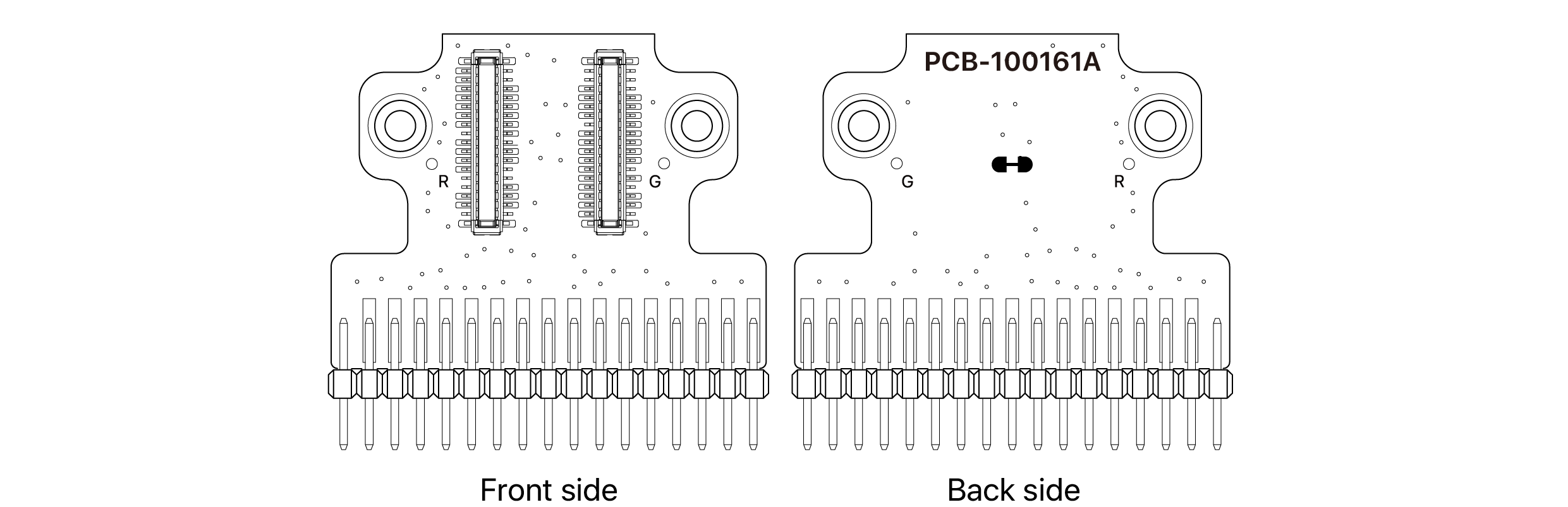

V1.1: Identified by 100161A on PCB

text1

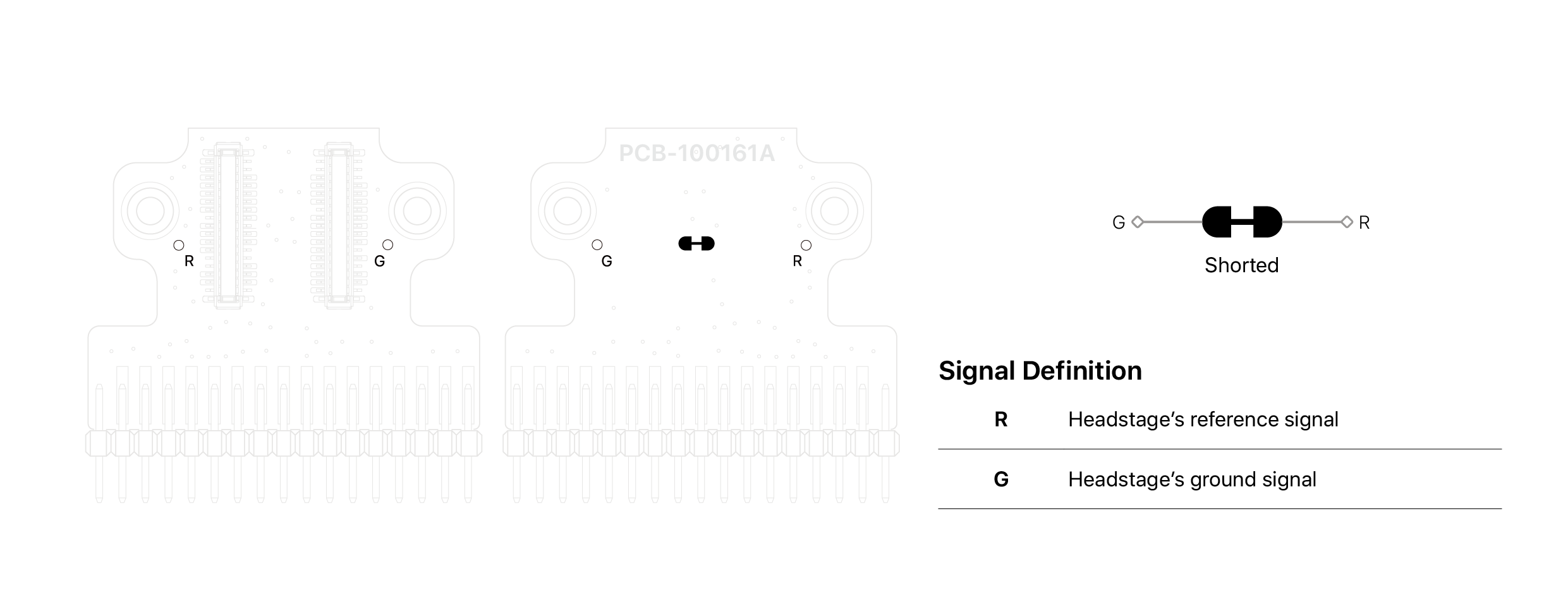

Ground & Reference Configuration

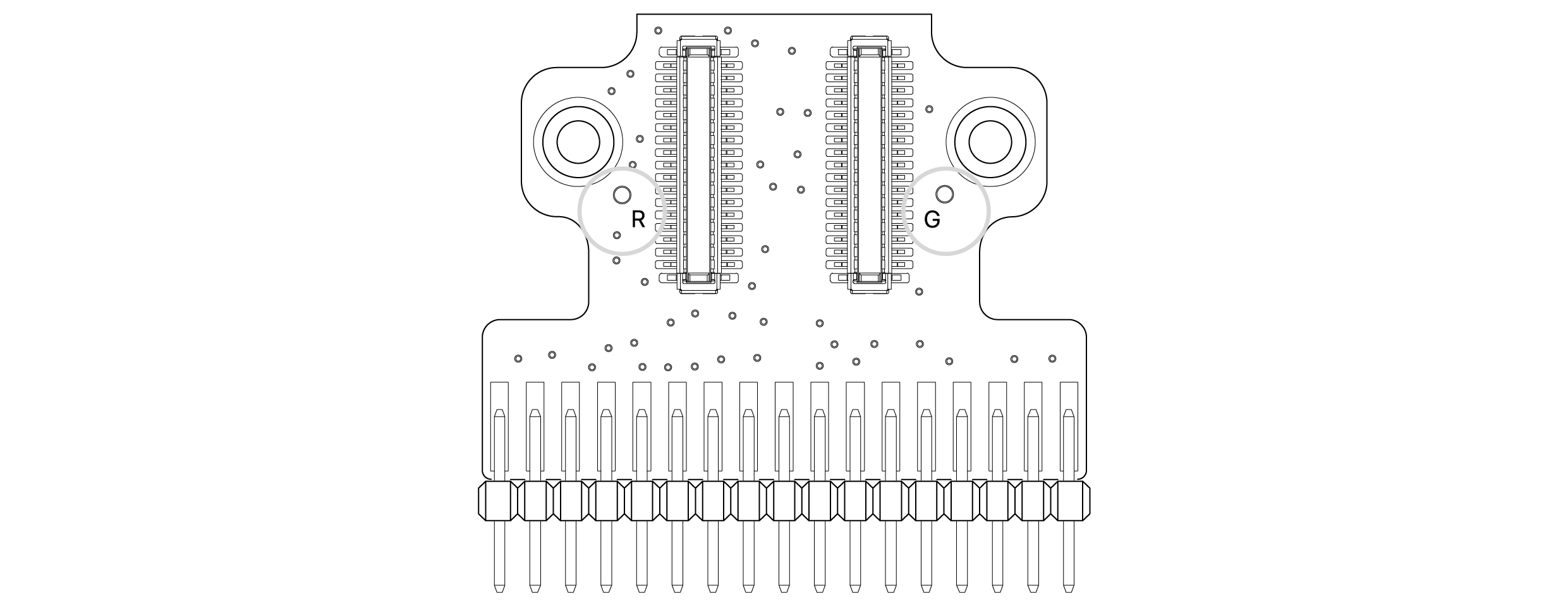

Adpt-X3R32-M1P32 v1

  • Ground (G) and reference (R) signals are independent by default.
  • To short them together at the adapter, solder a short wire between the G and R pads.


text1


Adpt-X3R32-M1P32 v1.1

Proper grounding and referencing are essential for high-quality signal acquisition. Always ensure that both ground and reference signals are securely connected. If either is left floating, significant noise may be introduced into the recordings.

text1


Configuring the Jumper Pad

① To connect the jumper, apply solder around JP1 until a solid solder bead forms.

V2-14

② To disconnect, use a soldering iron and desoldering mesh to remove the solder bridging the jumper pad.

If the jumper pas has a default short configuration, use a scalpel or precision blade to cleanly sever the trace.

V2-15
③ After modification, clean the area thoroughly using isopropyl alcohol or flux remover to eliminate any residual material.
④ Always verify connectivity using a multimeter to ensure proper configuration.

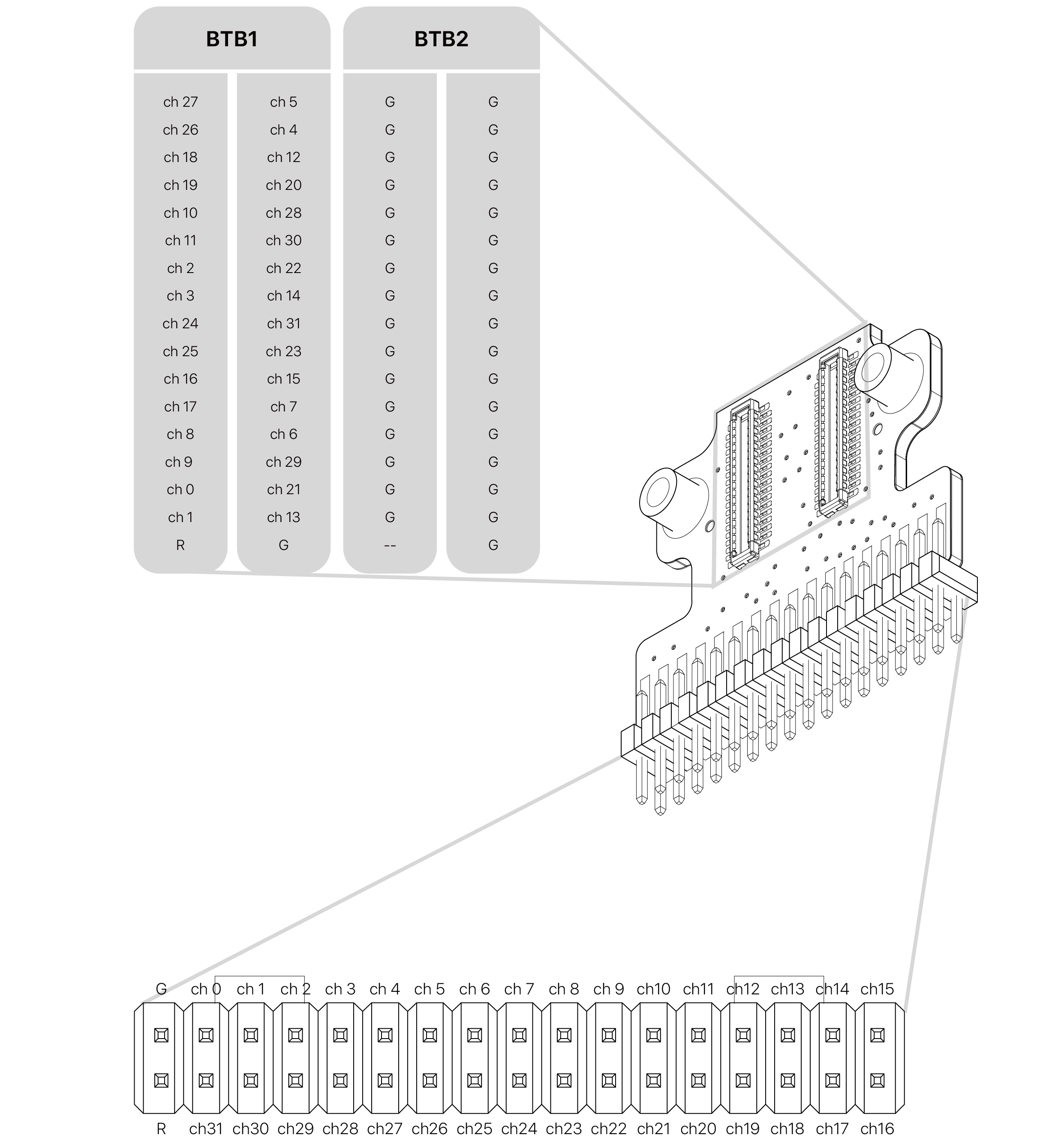

Pin Map

V1: Identified by PCB marking '100161' or by the blue board color when the marking is absent.

text1

Adpt-X3R32-M1P32 v1


V1.1: Identified by 100161A on PCB

text1

Adpt-X3R32-M1P32 v1.1
