XHS-Screw

text1

Overview

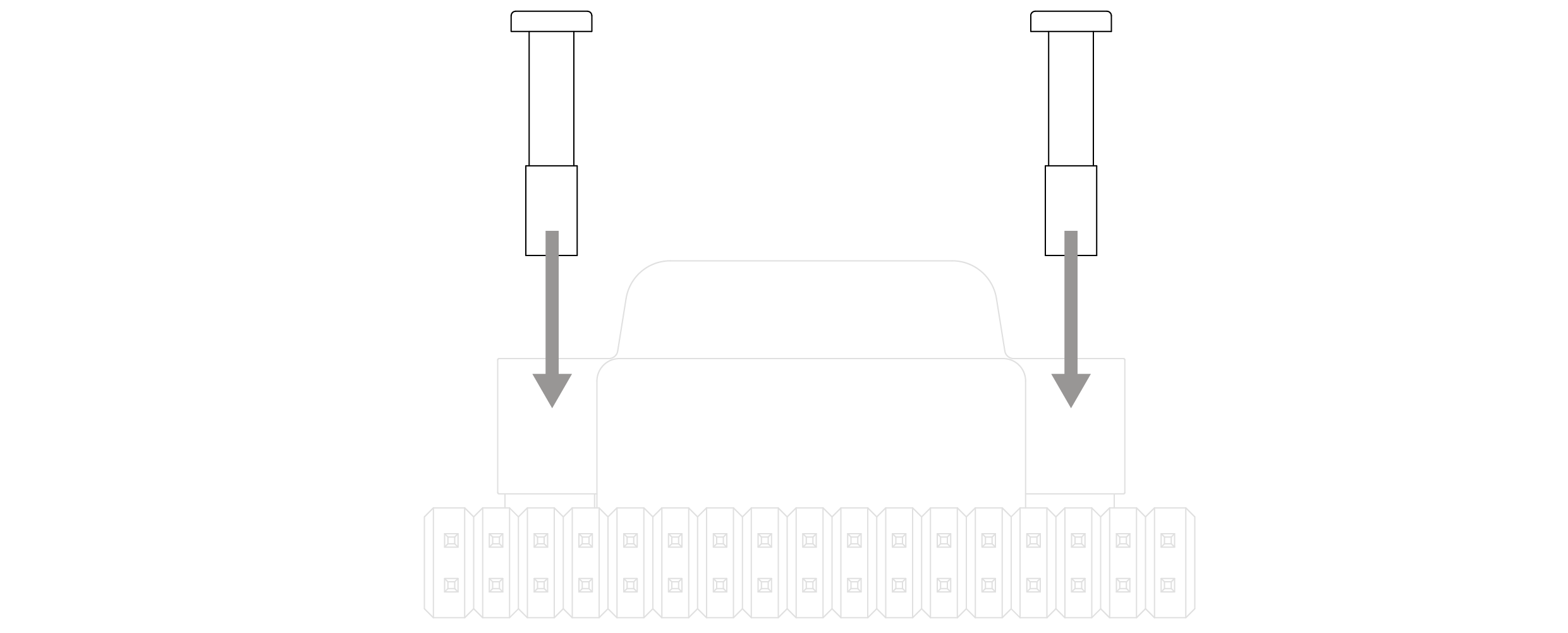

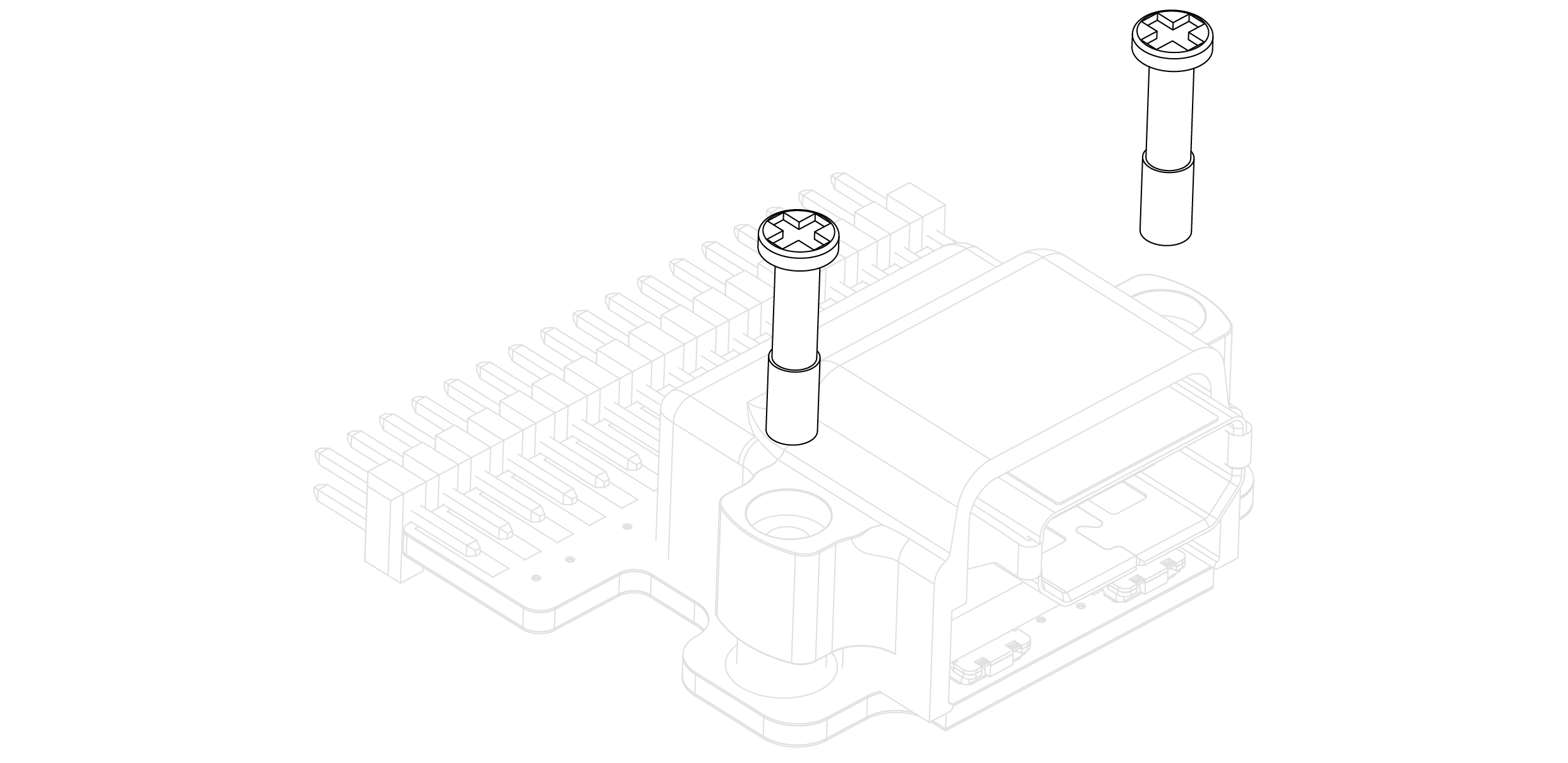

The X-Headstage™ Armor Screw Set is designed for use with the S-Armor enclosure. The set includes 3 mm standard-length screws and 5 mm extended-length screws, allowing secure mechanical assembly of the headstage under different stacking configurations.

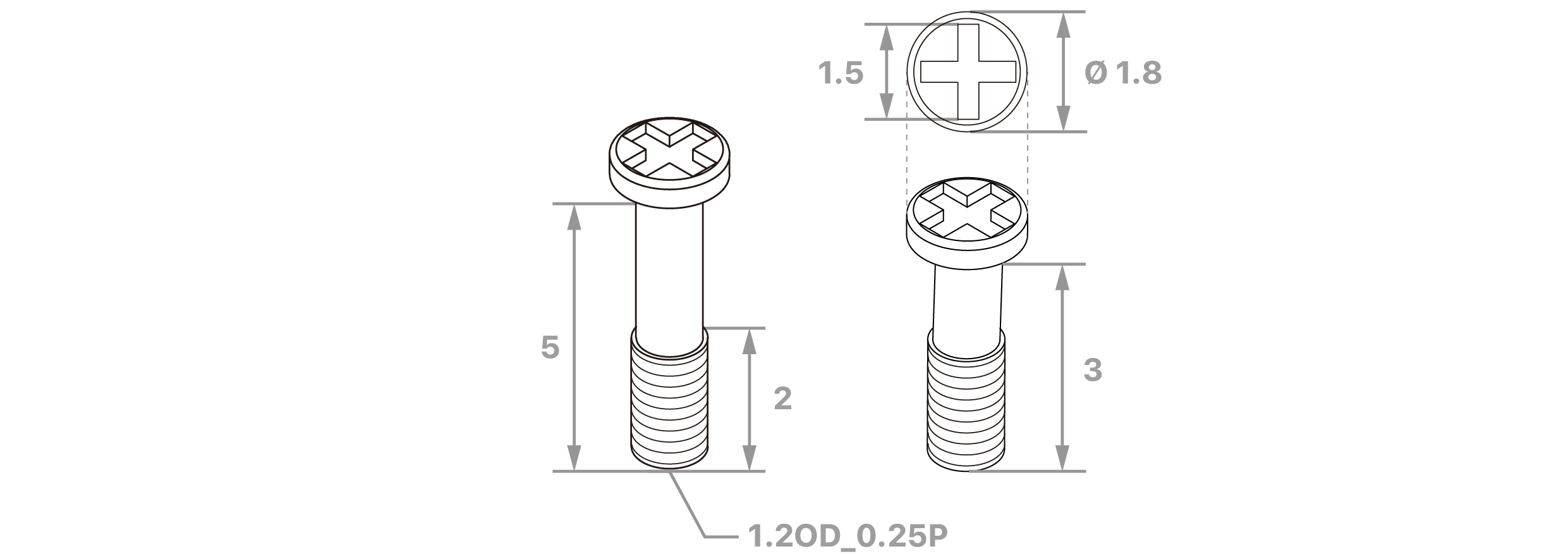

Dimension

text1

unit: mm

Compatibility

Compatible with X-Headstage™ S-Armor
Compatible with X-Headstage™ systems using remap boards or cycle extender boards
