SAdpt-HDMI-OM16

test1

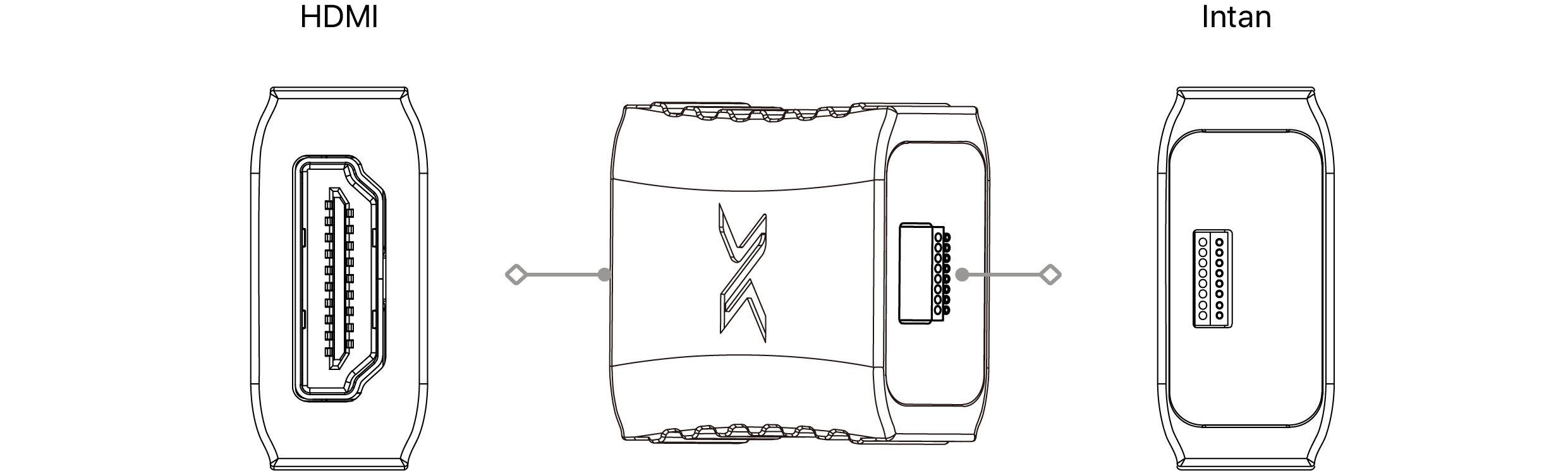

Overview

This adapter allows XSR headstages to operate seamlessly with the Intan Stimulation/Recording Controller using a Stim SPI cable.

SAdpt-HDMI-OM16 Overview

test1

SAdpt-HDMI-OM16

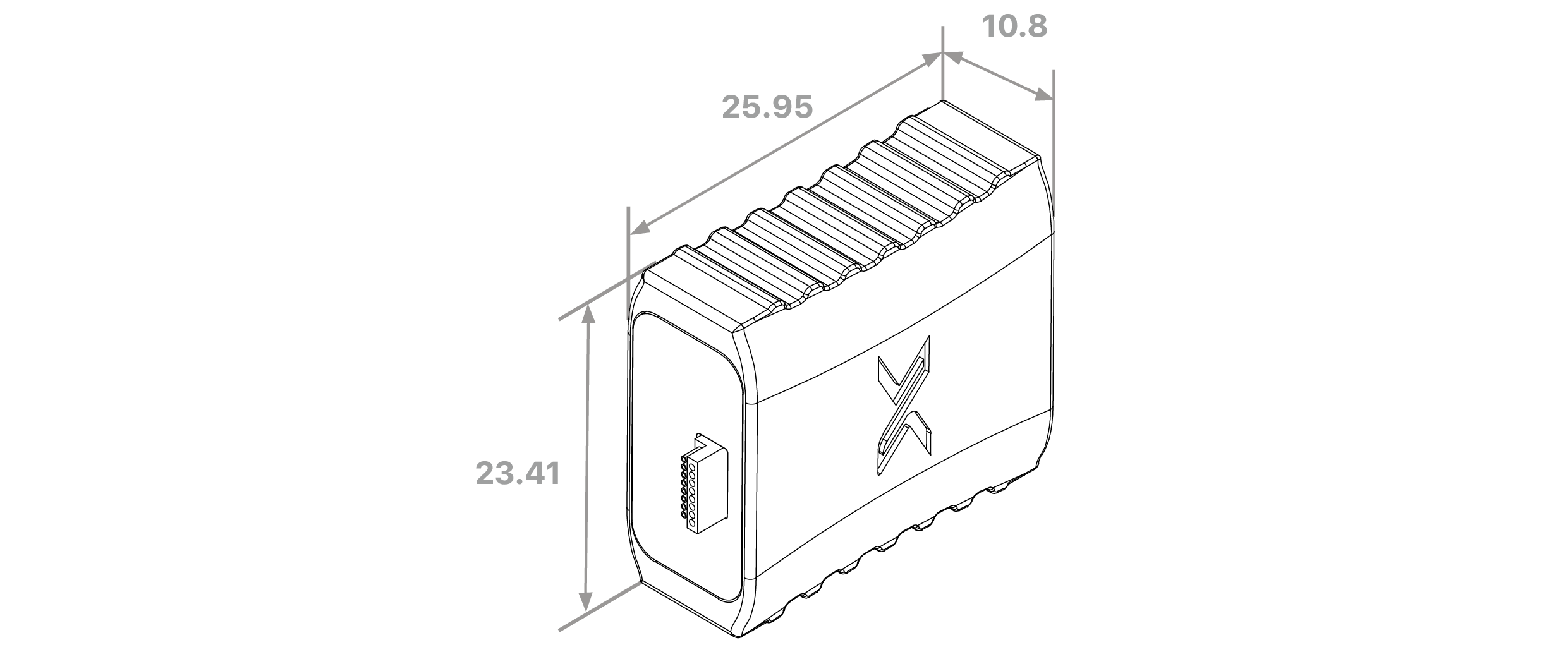

Dimension

test1

unit: mm

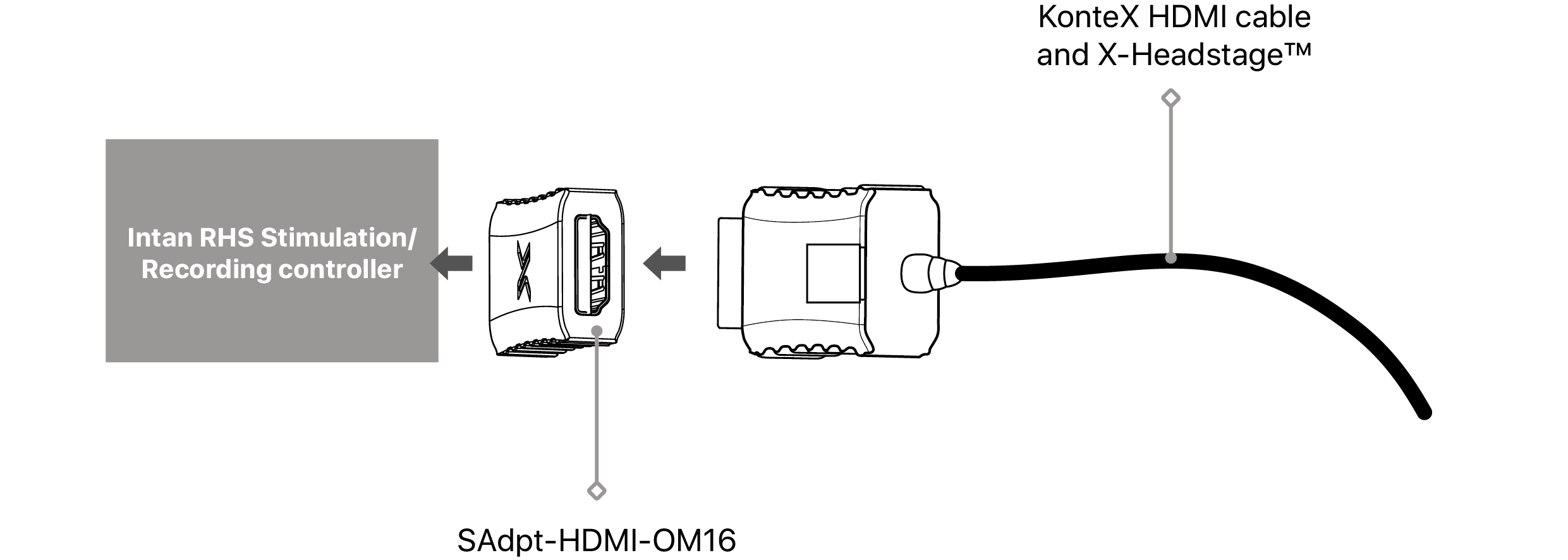

Usage Scenarios

The RHS connector is recessed into a slot on the board, enabling direct plug-in the adapter into the acquisition box. It can be used to transmit the recording signals and stimulation functions from the KonteX's XSR headstage to the acquisition system through the HDMI port on the adapter.

test1

Connector

HDMI

HDMI Type A female

Intan/Open Ephys

Omnetics Polarized NANO 12-pin

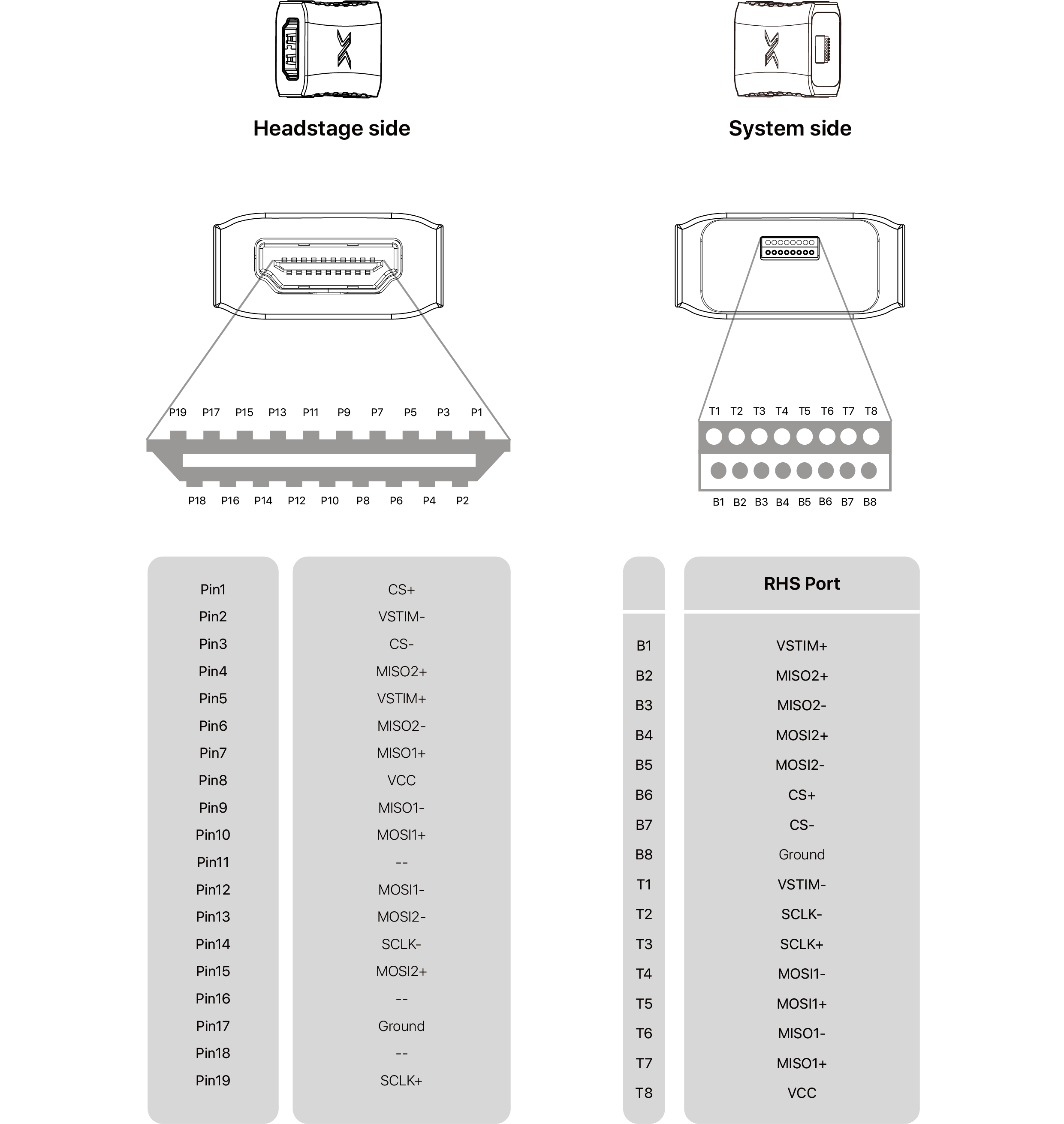

Pin Map

test1
