SAdpt-XDAQ-OM16




test1







Overview

The XDAQ™ to Intan RHS Headstage Adapter is designed to interface the XDAQ acquisition system with Intan’s RHS headstages via Stim SPI cables. This adapter provides a direct and reliable connection path, enabling precise stimulation and recording control while maintaining compatibility with Intan’s standard hardware architecture.

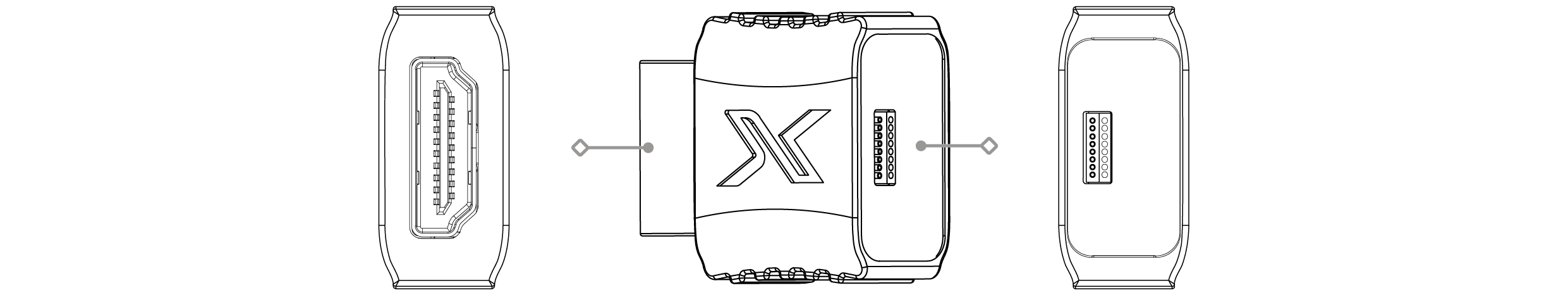

SAdpt-XDAQ-OM16 Overview

 System side                 Headstage side

test1

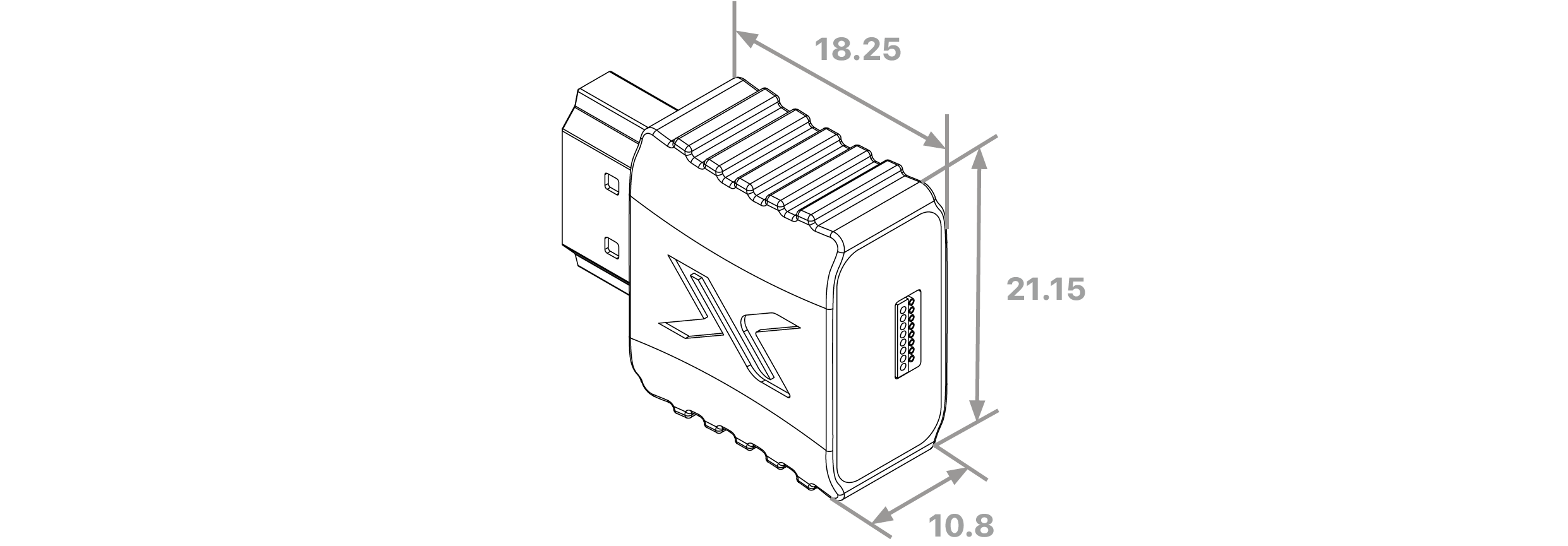

Dimension

test1

unit: mm

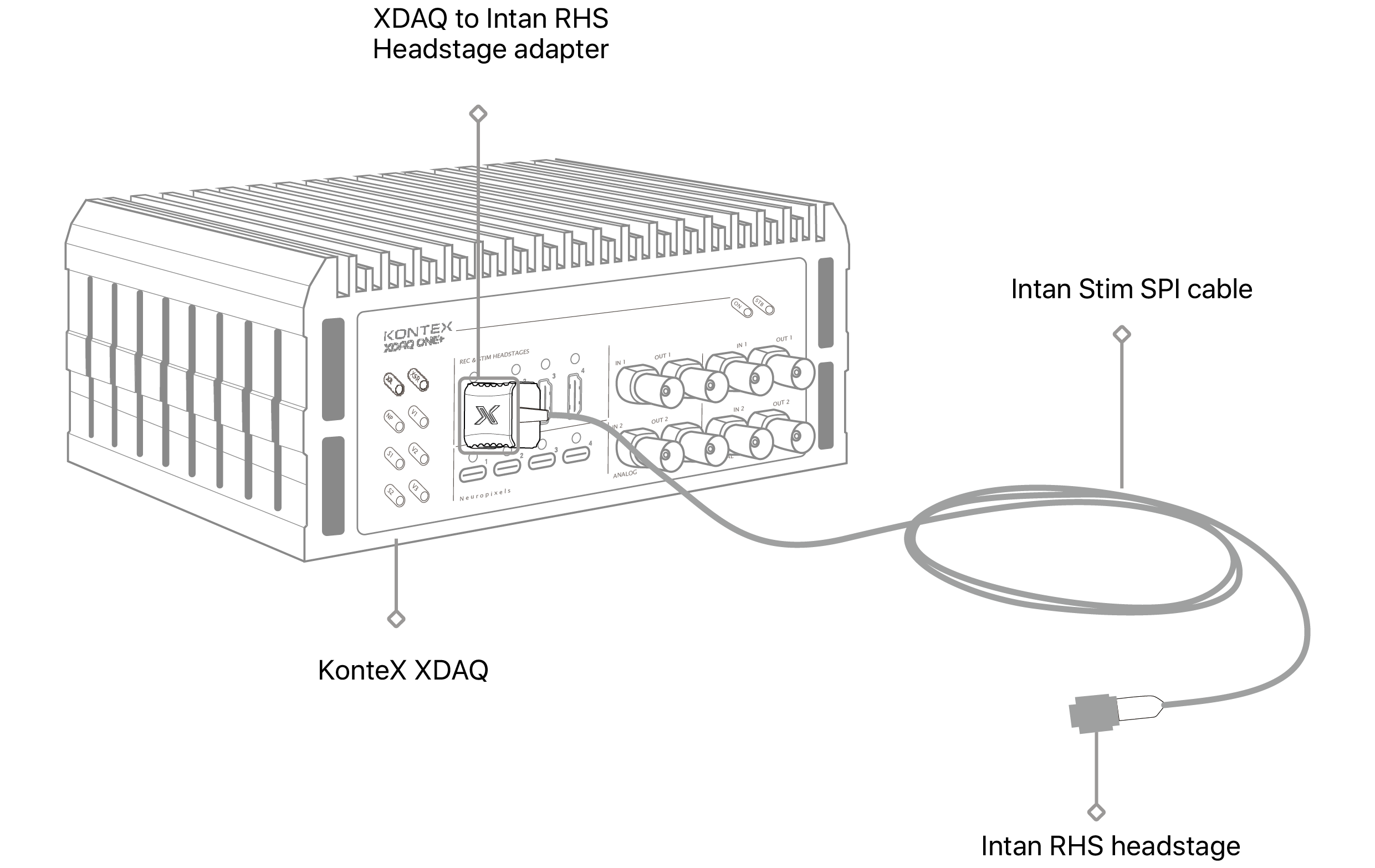

Usage Scenarios

The SAdpt-XDAQ-OM16 adapter provides a direct and reliable interface between Intan RHS headstages and the XDAQ system. It can be used in experimental setups where stable high- channel-count recording is required, and it also supports extended configurations through optional SPI cables, allowing flexible positioning of the headstages relative to the acquisition system.


test1




Connector

    HDMI

  • HDMI Type A female

    • Intan/Open Ephys

  • Omnetics Polarized NANO 16-pin

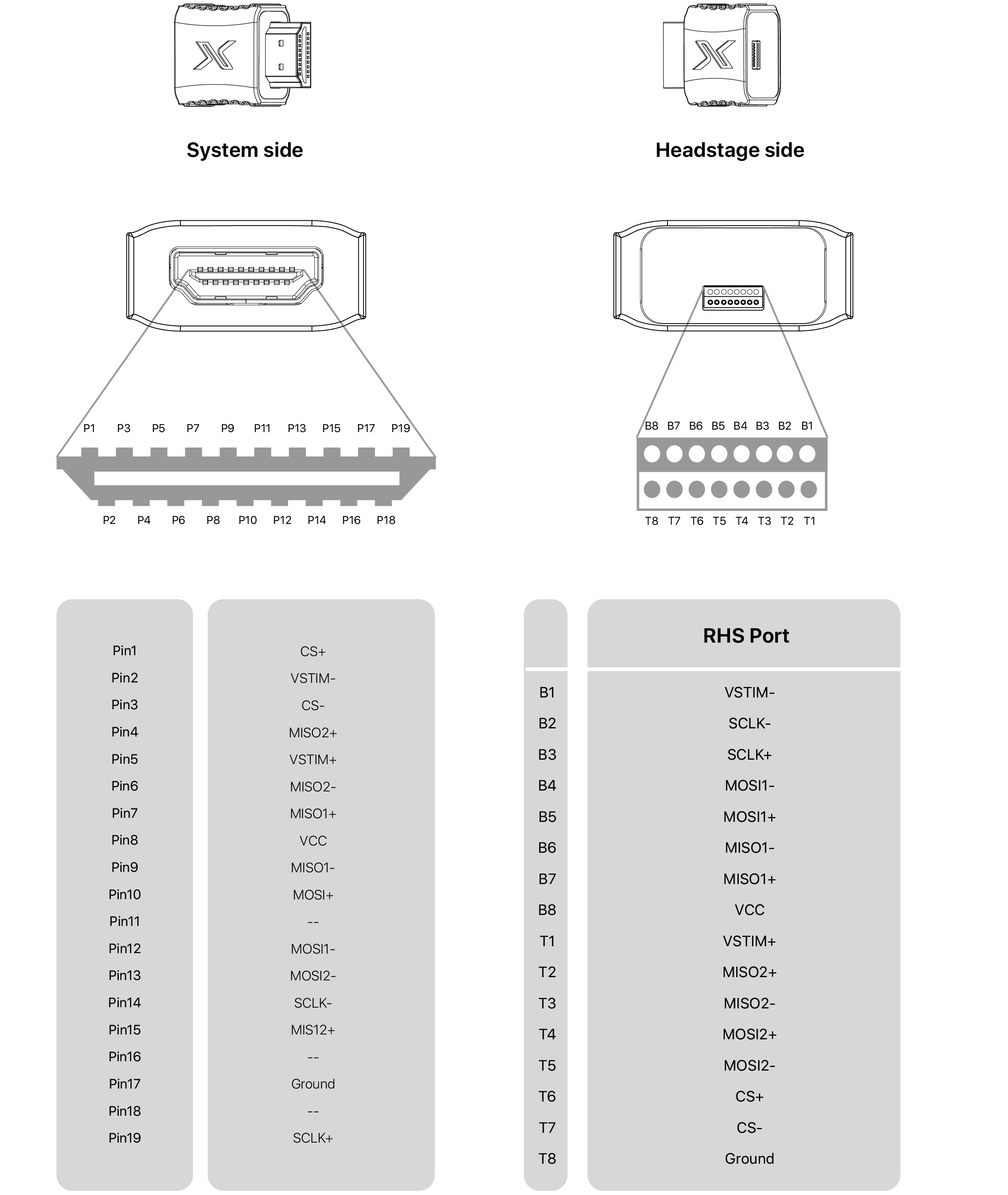

Pin Map

test1






test2
