SAdpt-XDAQ-Smartlink
Overview

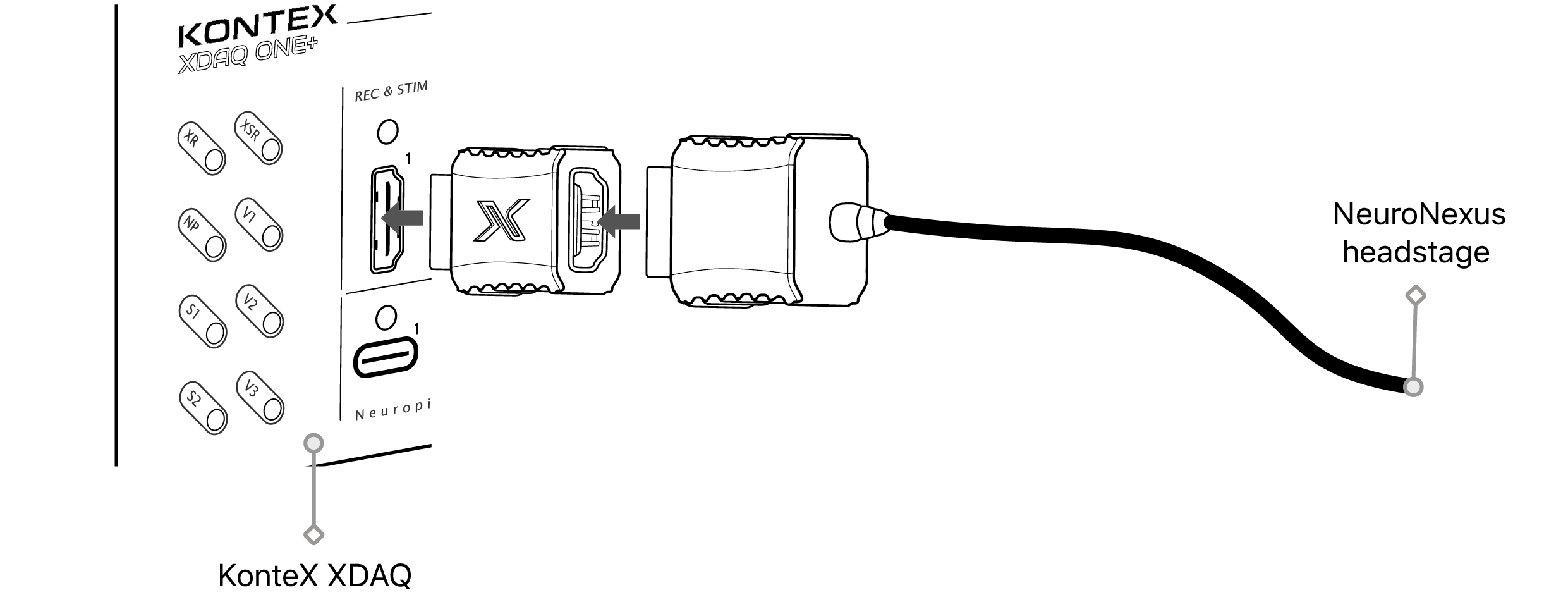

The XDAQ to Smartlink Adapter enables seamless integration of NeuroNexus Smartlink headstages directly with the XDAQ system. This adapter allows researchers to bypass intermediary commutators and connect Smartlink-compatible headstages via HDMI interface.

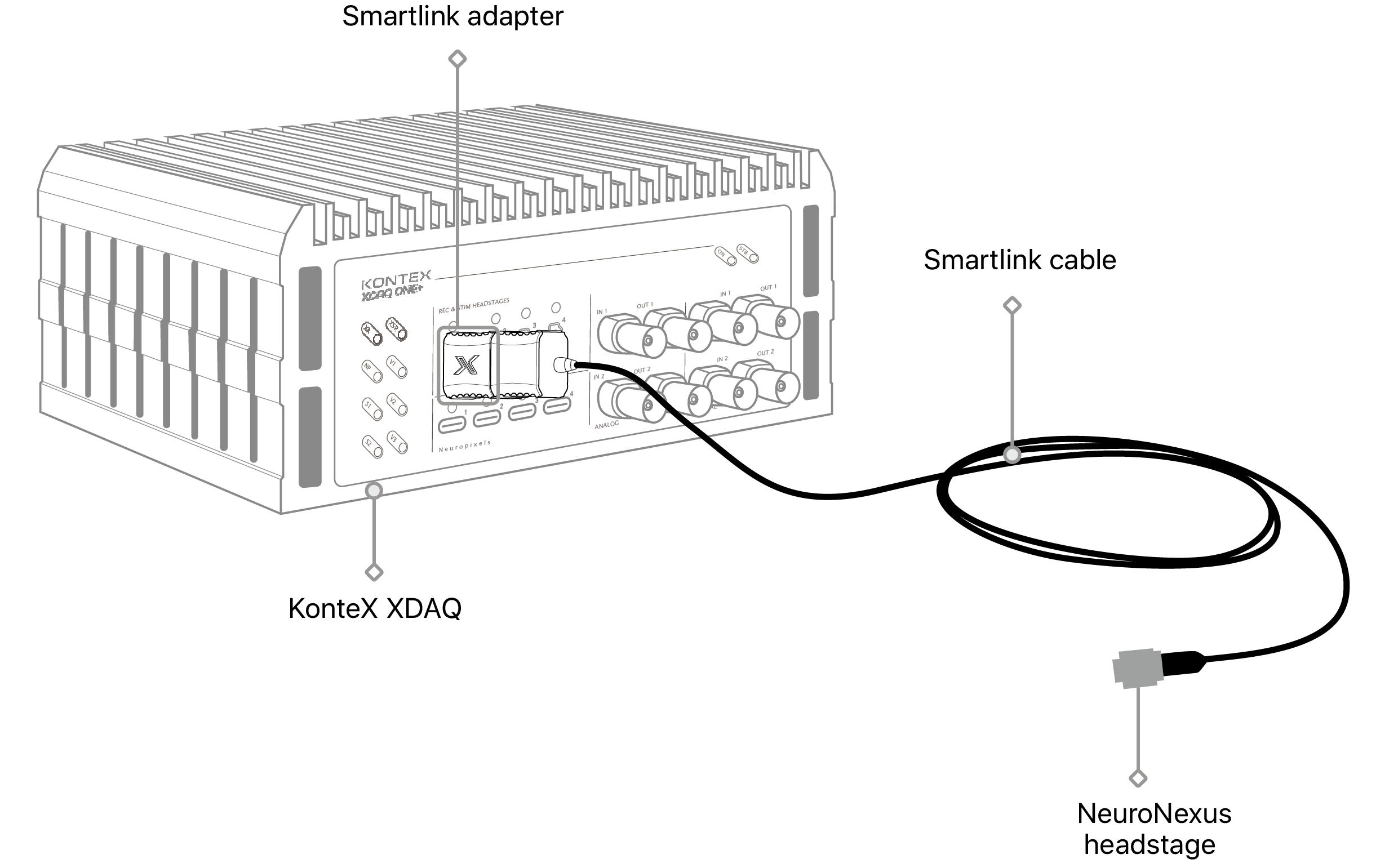

XDAQ to Smartlink Adapter Overview

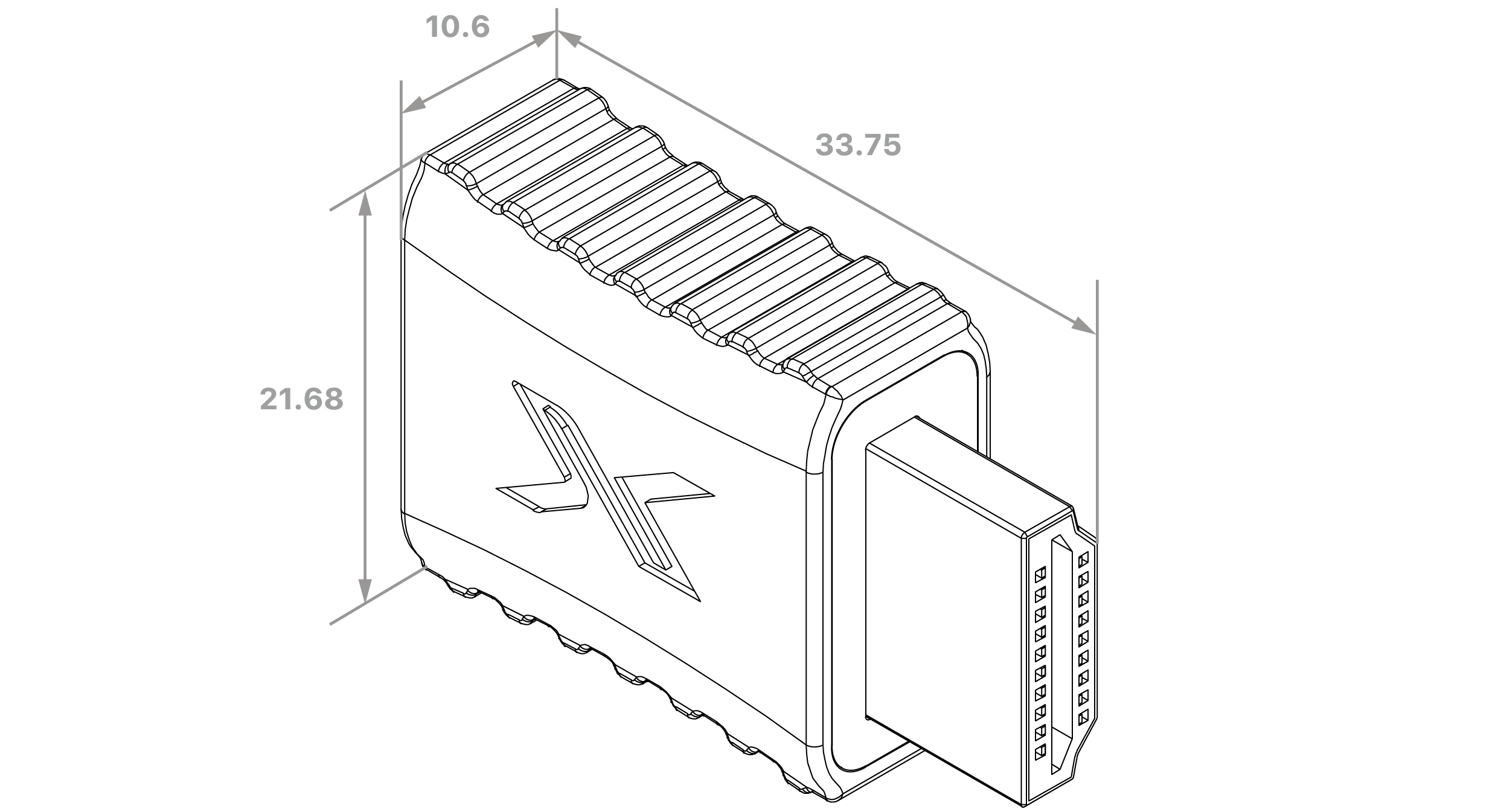

Dimension
unit: mm

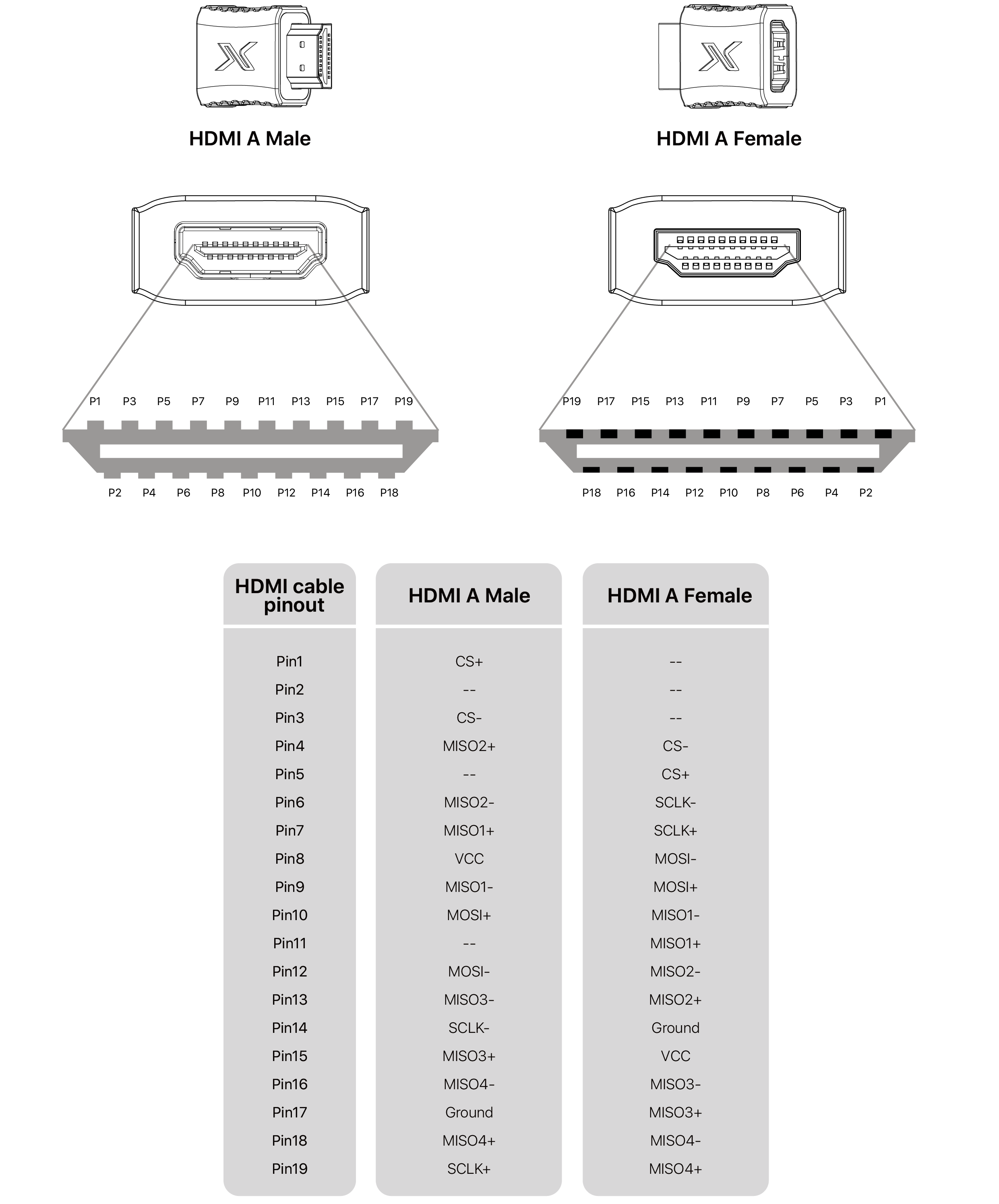

Pin Map
