Adpt-JP-X3




alt text

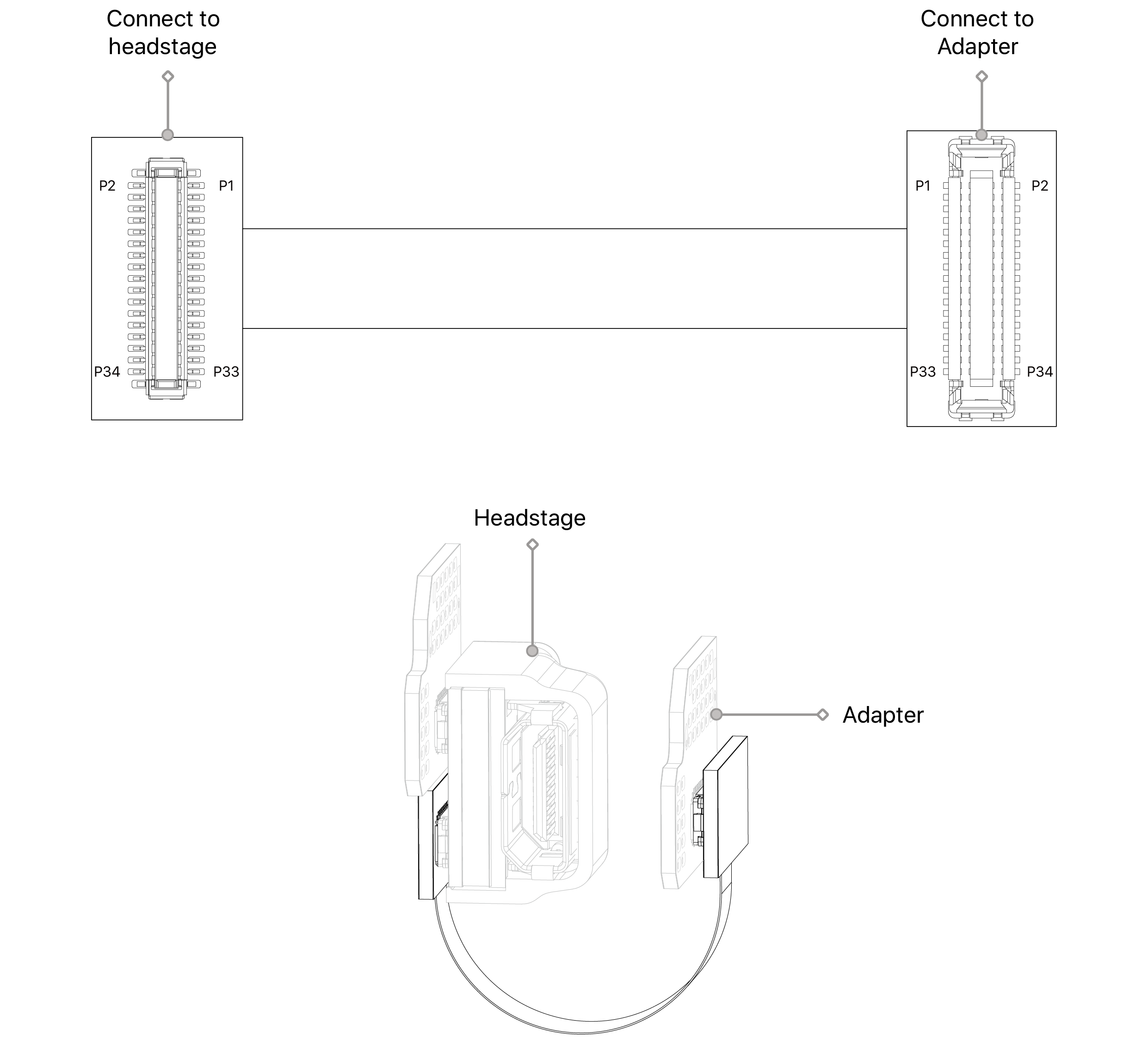

Overview

The EIB SR Right 32ch is a 32-channel Electrode Interface Board (EIB) specifically designed for use with the KonteX X3SR stim-record headstage. This model is configured with the extension on the right side of the headstage, providing flexible layout options in constrained or custom implant environments.


X3R64_HDMI Overview


alt text

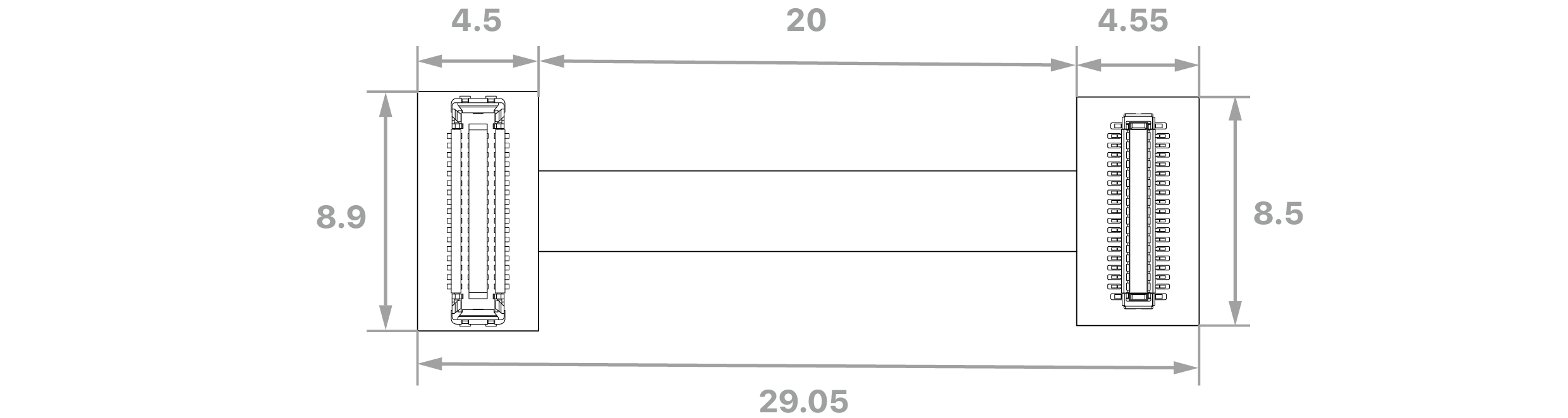

Dimension and Weight

alt text

Weight 0.3g

unit: mm




Compatible Acquisition System

  • Headstage Compatibility

    • Designed for use with the X3SR32 headstage.

  • Electrode Compatibility

Supports 32-channel electrode arrays equipped with Omnetics connectors.




Key Features

  • Channel Capacity

    • Supports 32 recording or stimulation channels.

  • Channel Count

    • 32 independent channels.

  • Connector Type

    • Compatible with X3SR headstage micro-connectors.

  • Right-Side Extension

    • Tailored layout for right-oriented cable management.

  • Compact and Lightweight

    • Minimizes implant footprint.

  • High Signal Integrity

Optimized for low-noise stimulation and recording applications.

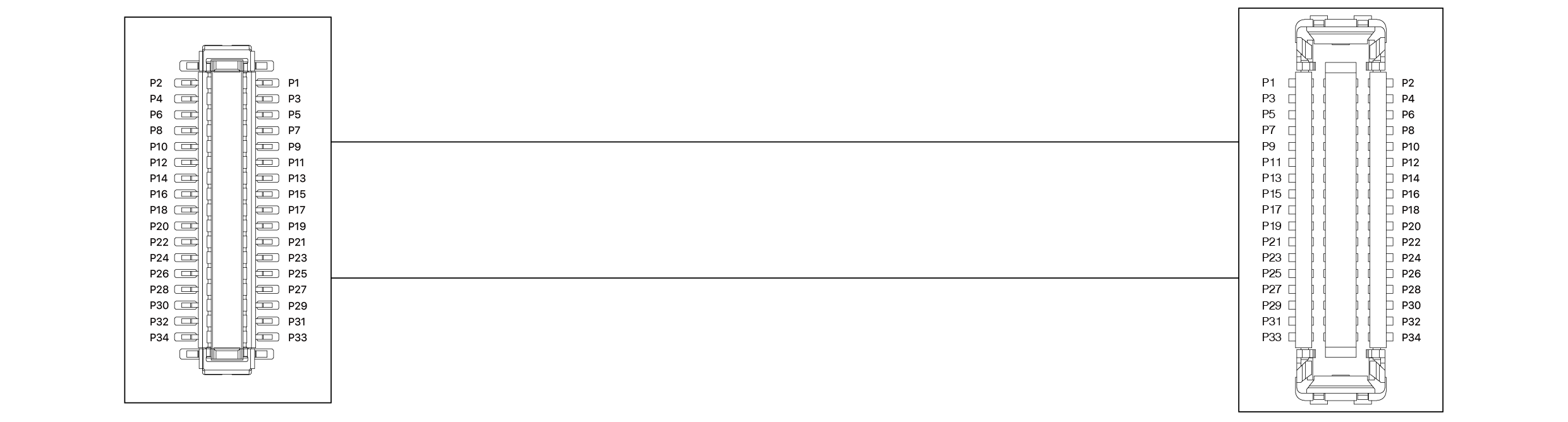

Pin Map

alt text
