EIB32-L




test1







Overview

The EIB Left 32ch is a 32-channel electrode interface board (EIB) specifically designed for use with the X3 series of KONTEX headstages. It features a left-side extension configuration, allowing for streamlined integration in applications with spatial constraints or specific layout requirements.

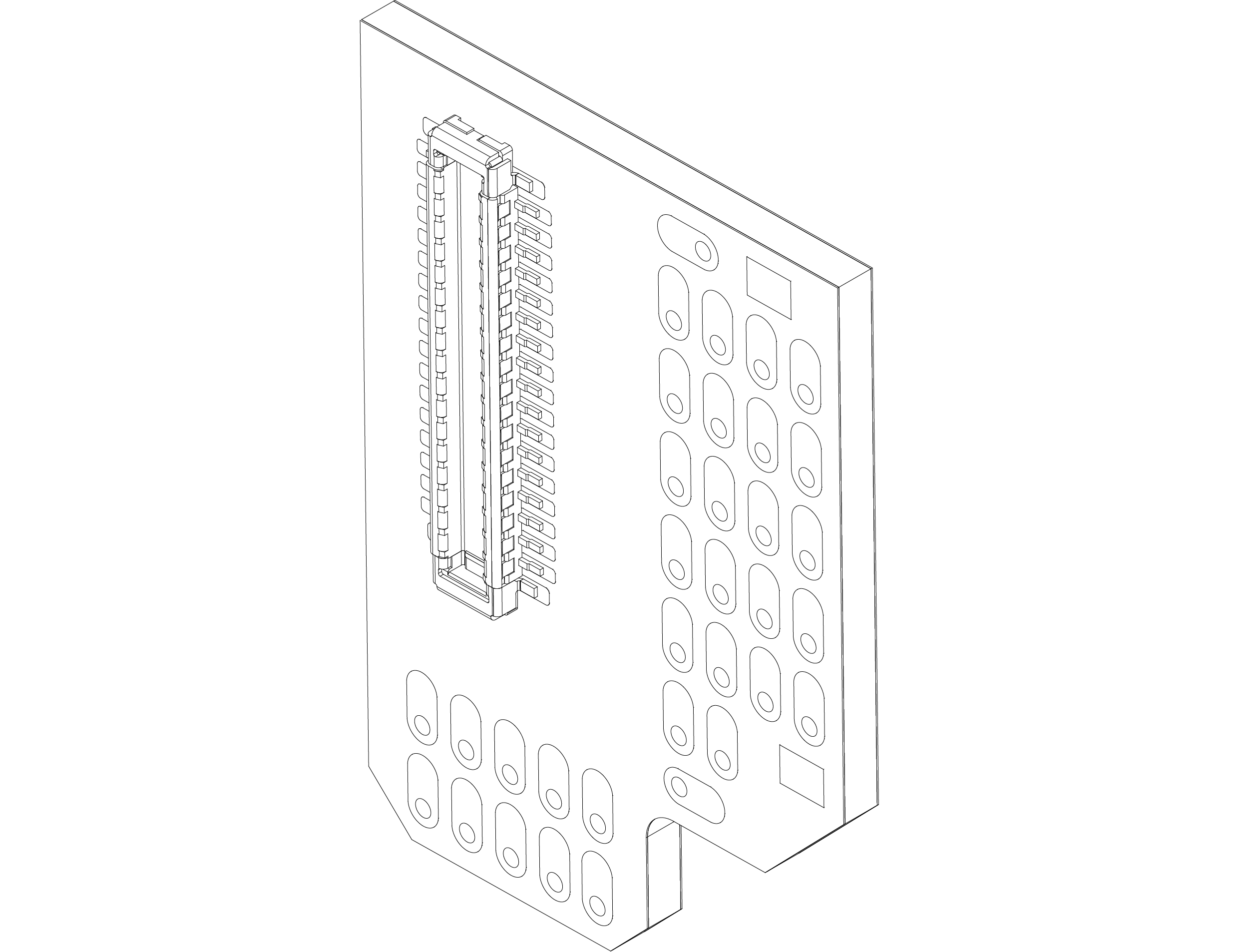

EIB Left 32ch Overview


test1


EIB Left 32ch




Connector

Headstage

  • Molex PN: 505070-3422

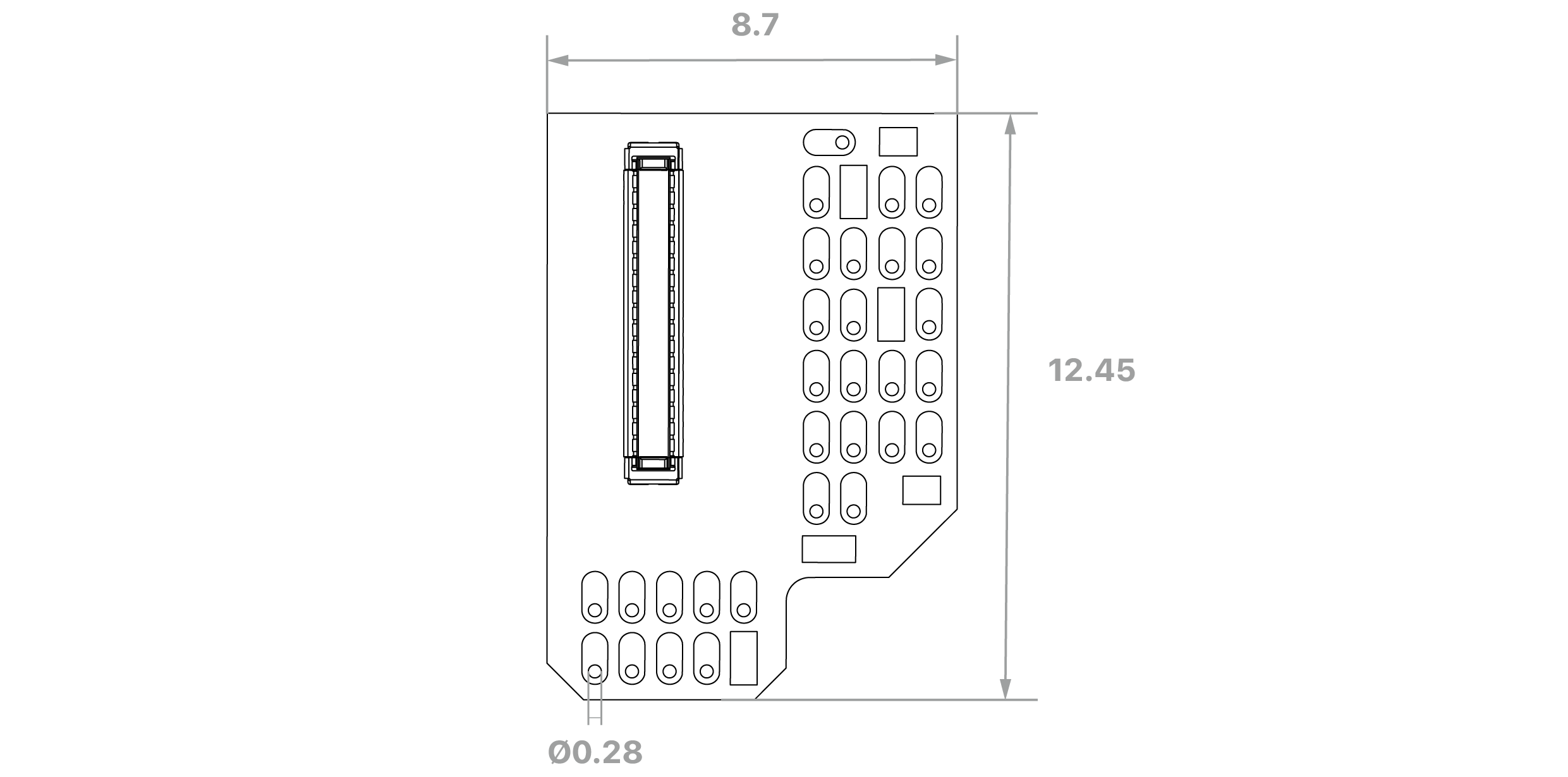

    • Dimension

    test1

    Weight:0.3 g

    unit: mm




    Key Features

    Channel Capacity

    Supports 32 recording or stimulation channels.

    Connector Orientation

    Left-side extension for optimal alignment with X3 headstages.

    Compact Layout

    Designed to minimize footprint and maintain close proximity to neural interfaces.

    Robust Contacts

    Ensures secure and stable electrode connection during experiments.




    Compatible Acquisition System

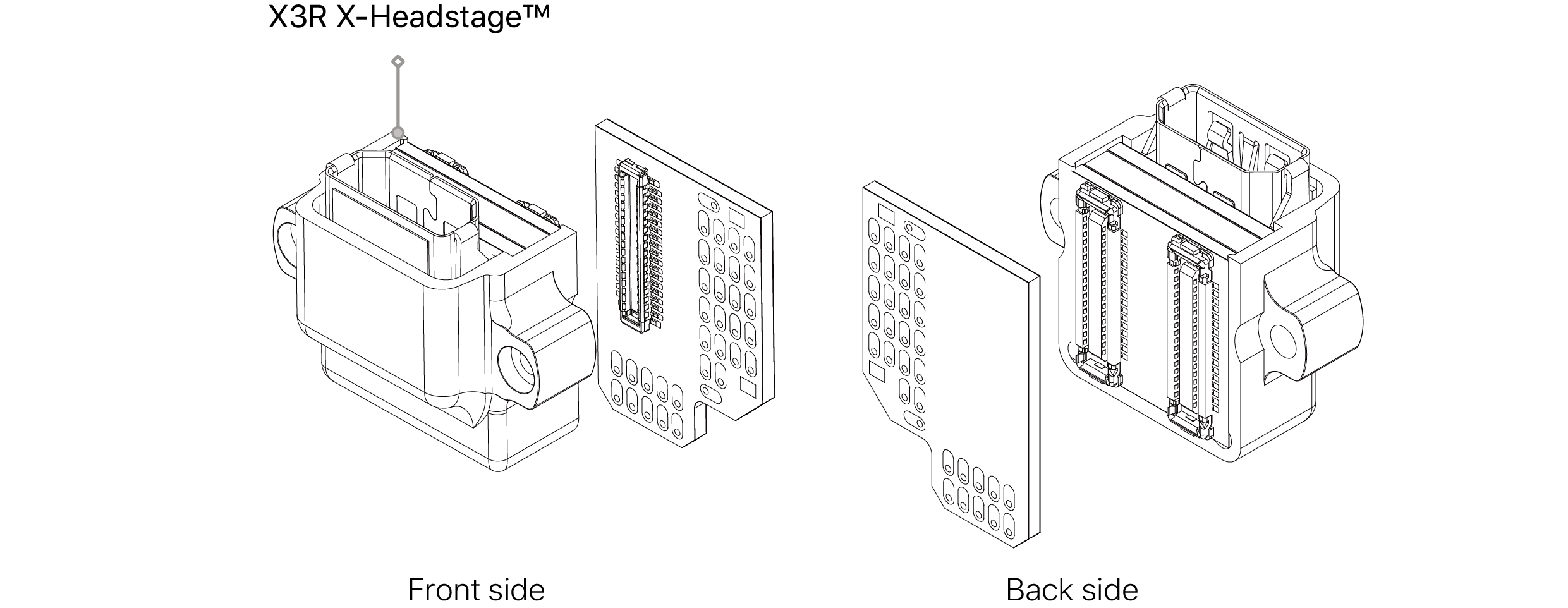

  • Compatible with X3R32 and X3SR32 headstages.

  • Designed for electrode arrays utilizing 32-pin Omnetics connectors (1mm pitch).

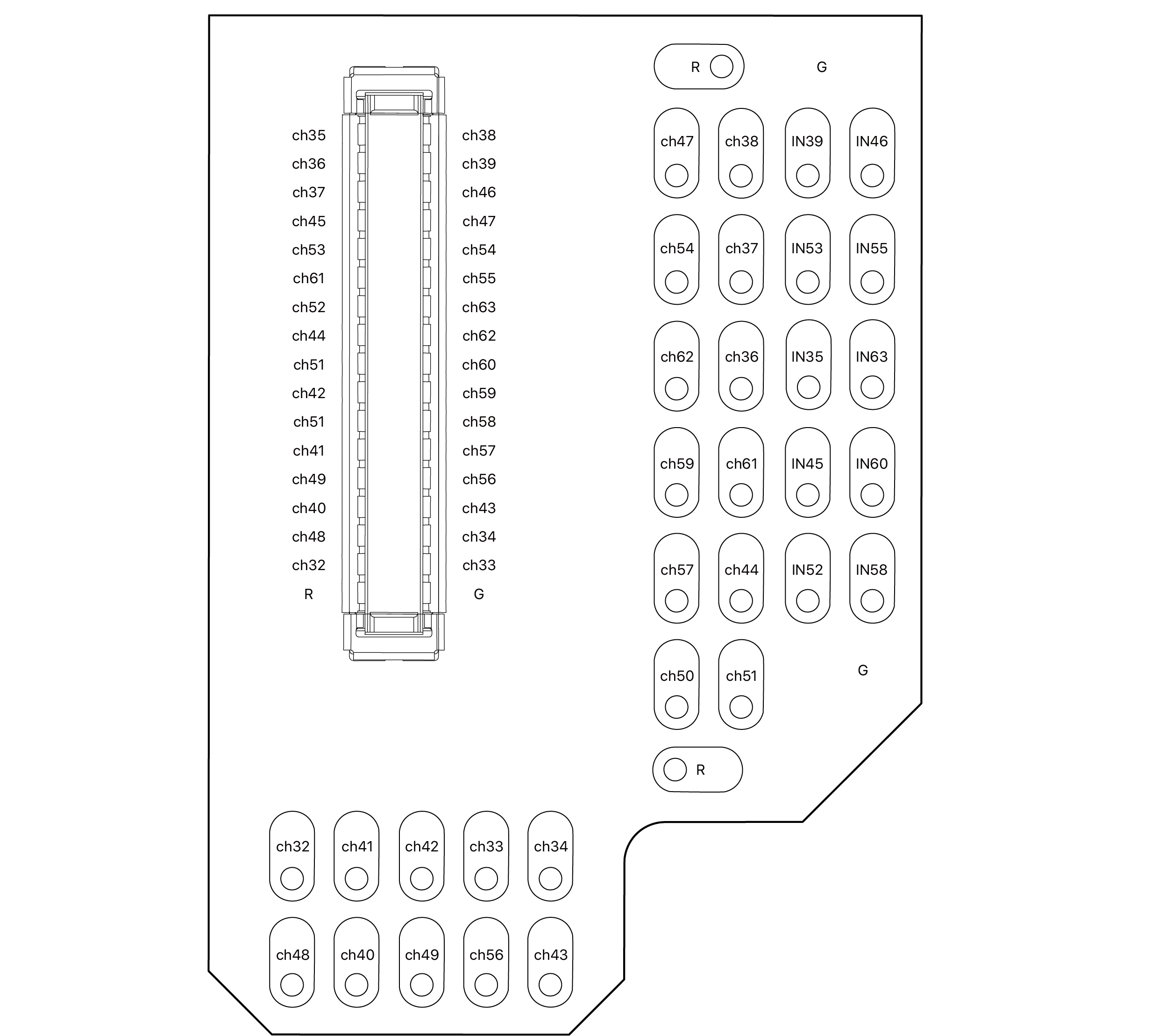

    • Pin Map
