EIB16-M1S
Overview
EIB16-M1S is designed for customers making in-house microdrive hardware and provides electrical connection between the electrode wires and the X-Headstage.

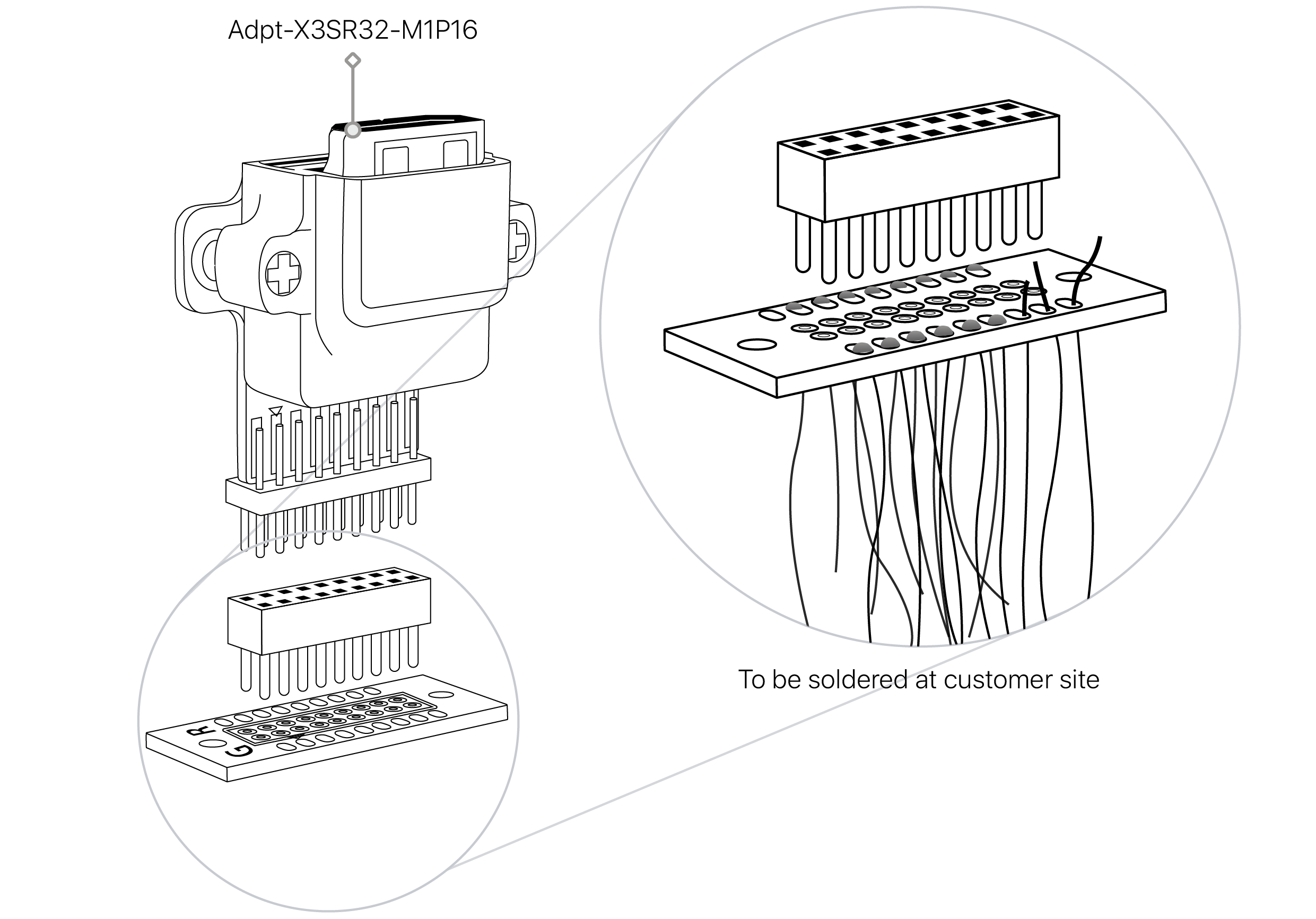

EIB16-M1S Overview

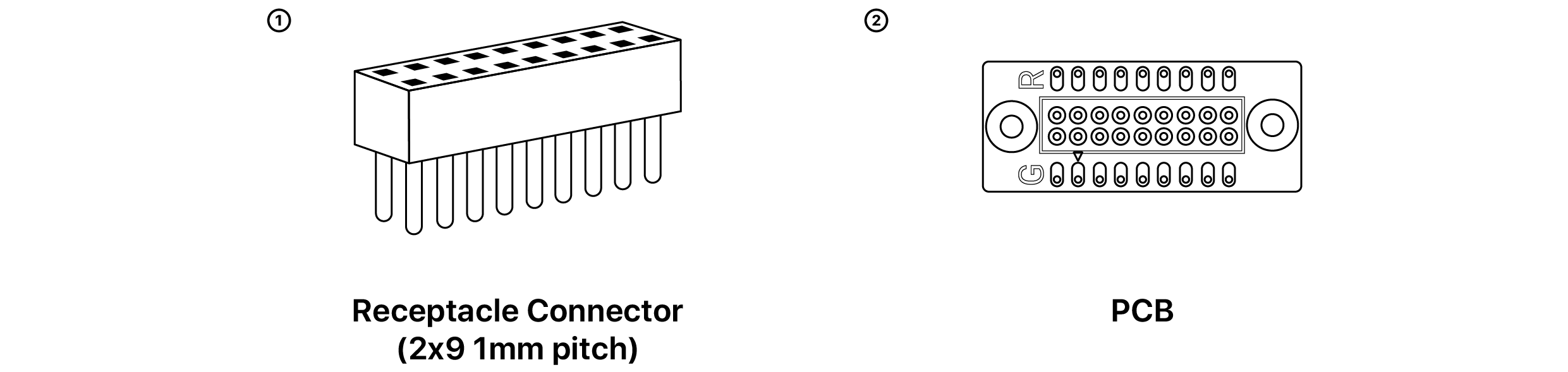

Components

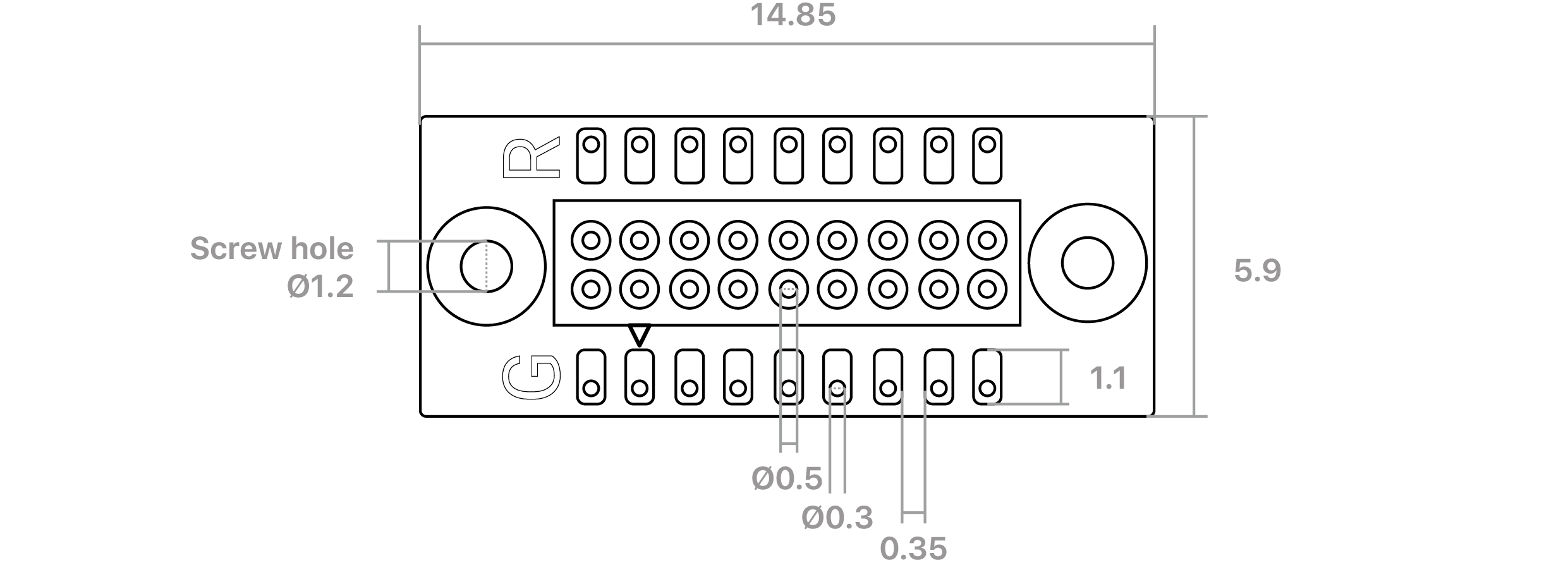

Dimension
Weight:0.22 g
unit: mm

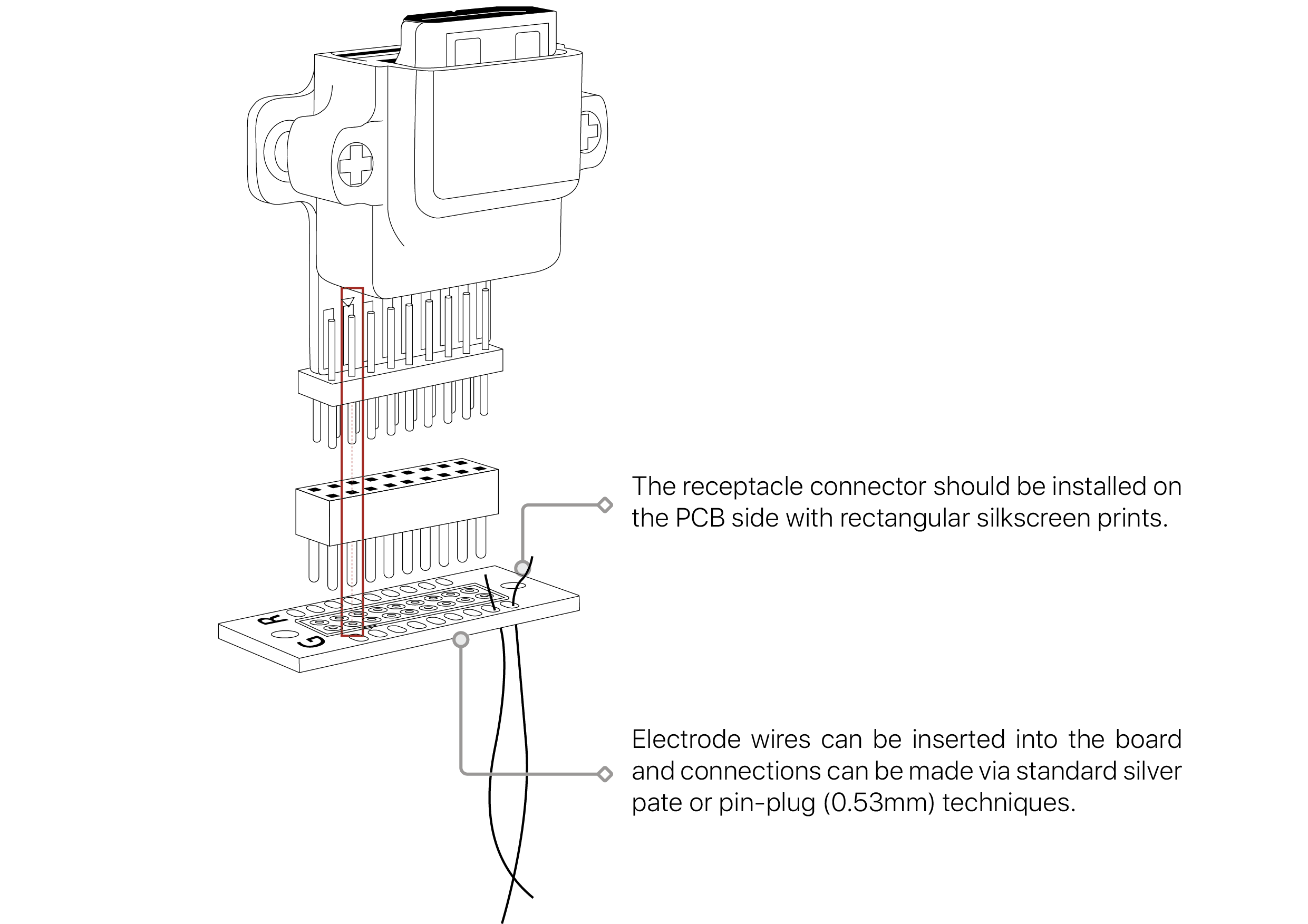

Connection Orientation
When plugging the adapter into the EIB, ensure that the side with the X-Headstage is aligned with the silkscreen print marked “G.” The triangle on the adapter and the EIB should be on the same side, even if the triangle on the EIB is partially covered.
Compatible Headstages
This EIB can be connected to X3SR32 or X3R64 X-Headstages with the Adpt-X3SR32-M1P16.

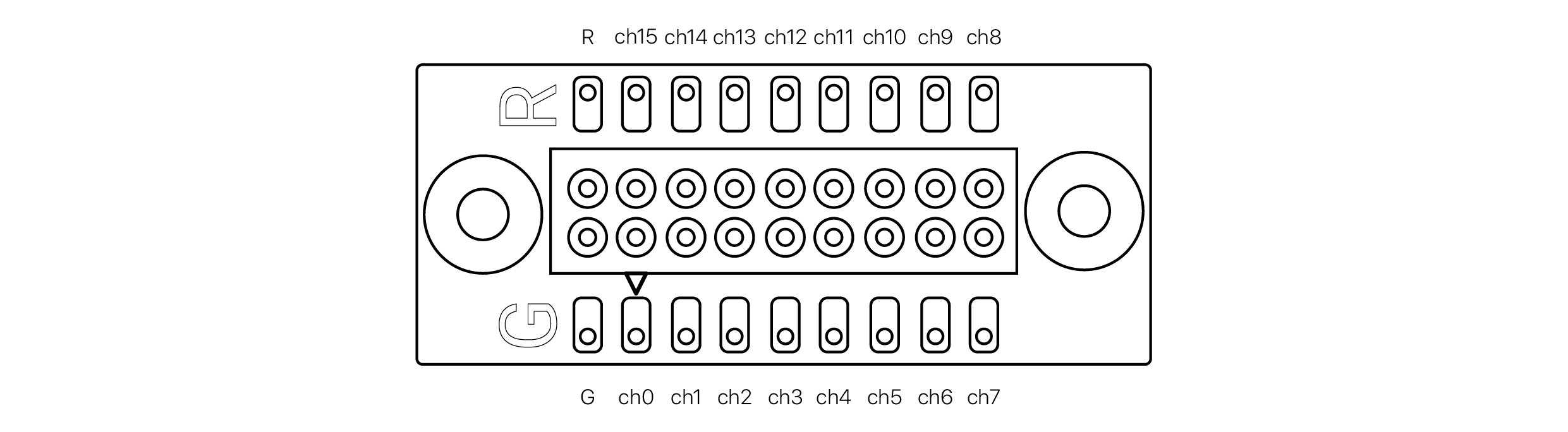

Pin Map
NOTE: Pads are routed to the immediate connector pins above or blow.
