EIB32-LRCombo




alt text







Overview

The EIB LR Combo 32ch is a 32-channel electrode interface board (EIB) specifically designed for use with the X3 series of KONTEX headstages. It features Right-sideamd Left-sideamd extension configuration, allowing for streamlined integration in applications with spatial constraints or specific layout requirements.

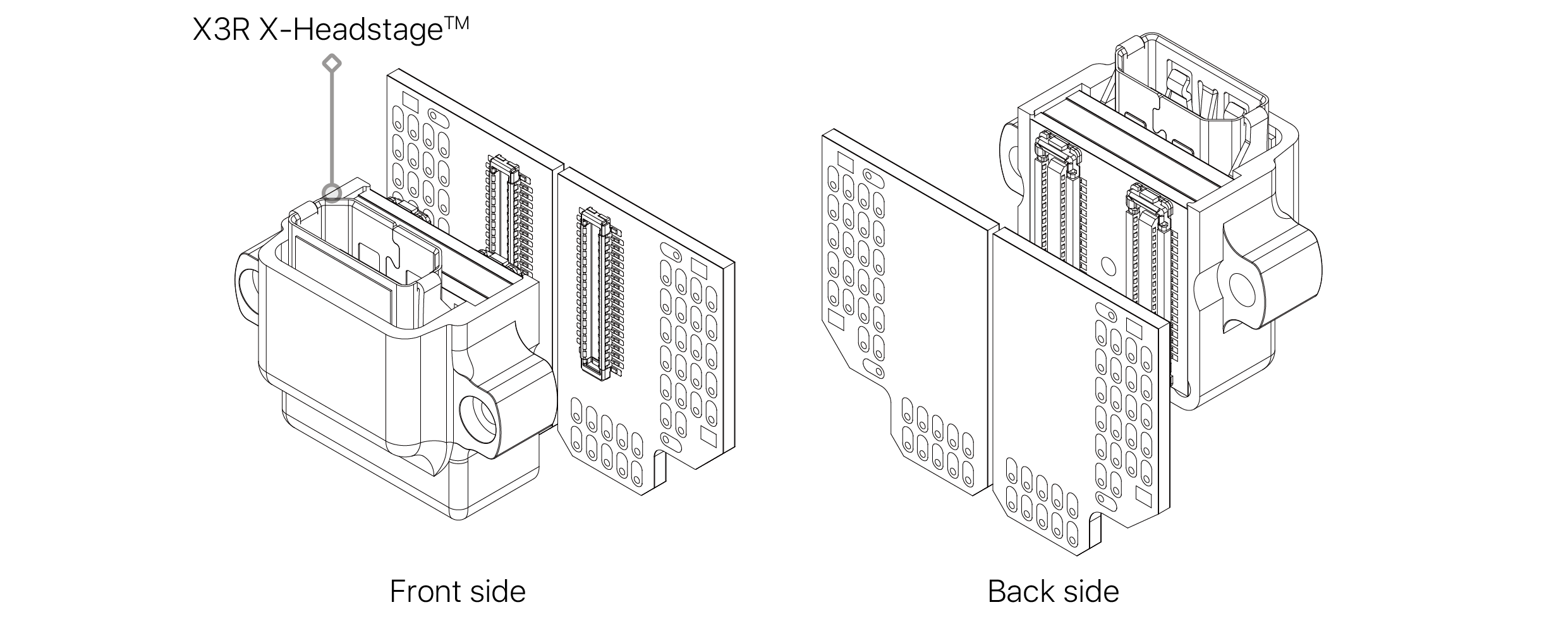

EIB LR Combo 32ch Overview


alt text




Connector

Headstage

  • Molex PN: 505070-3422

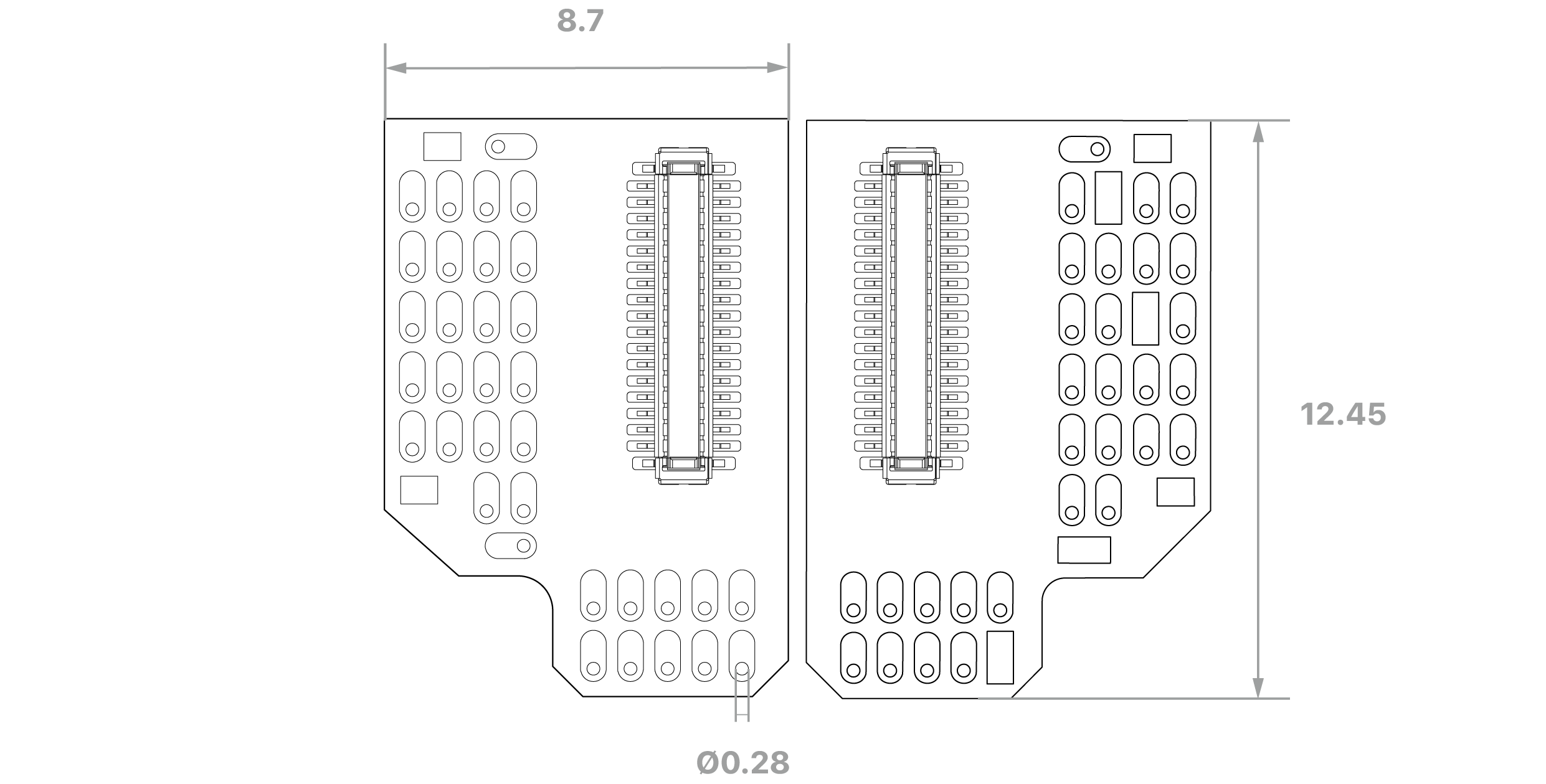

Dimension

alt text

Weight:0.6 g

unit: mm




Key Features

Channel Capacity

Supports 32 recording or stimulation channels.

Connector Orientation

Left-side extension for optimal alignment with X3 headstages.

Compact Layout

Designed to minimize footprint and maintain close proximity to neural interfaces.

Robust Contacts

Ensures secure and stable electrode connection during experiments.




Compatible Acquisition System

  • Compatible with X3R32 and X3SR32 headstages.

  • Designed for electrode arrays utilizing 32-pin Omnetics connectors (1mm pitch).




    • Pin Map


    alt text

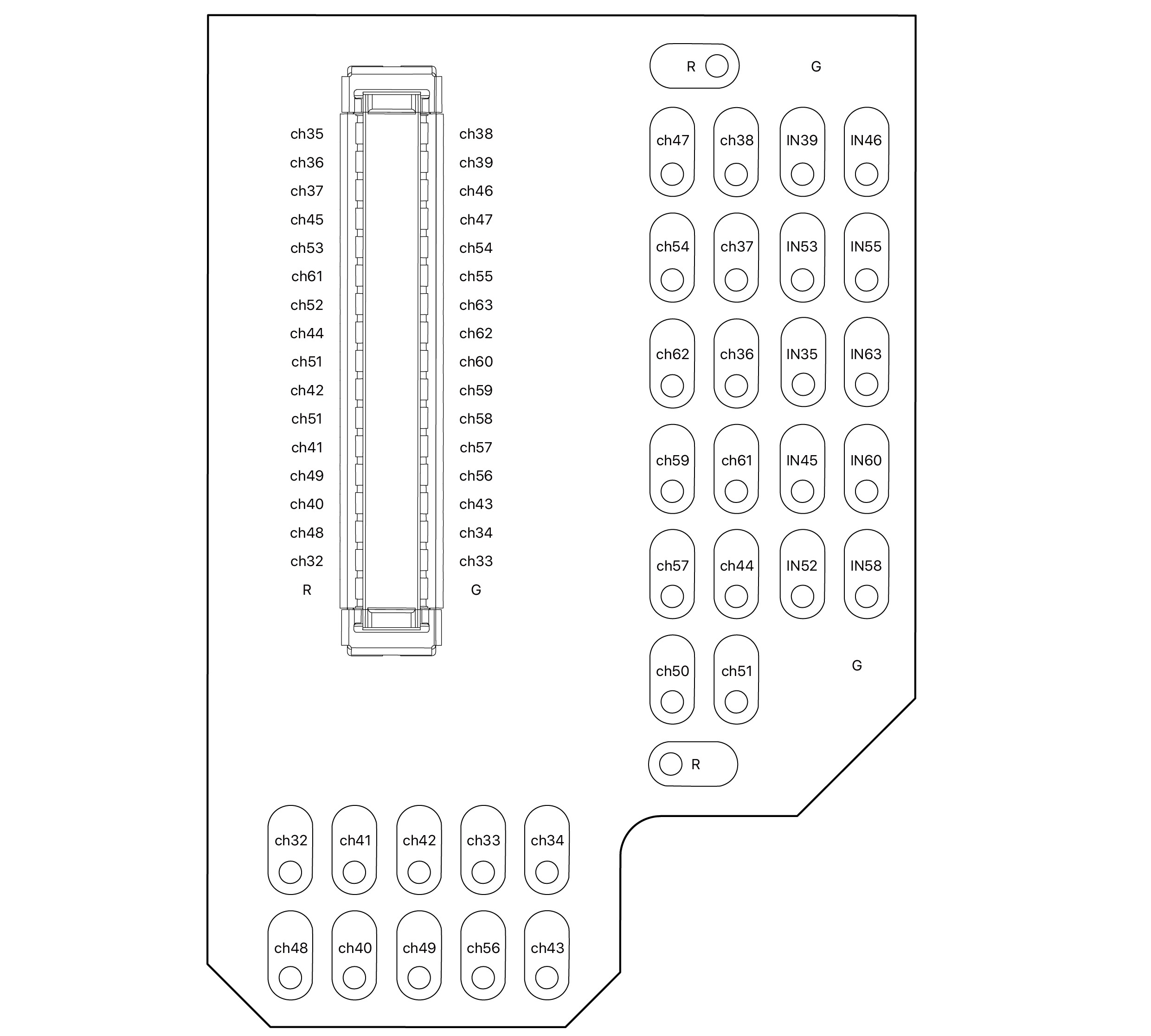

    EIB32 R


    alt text

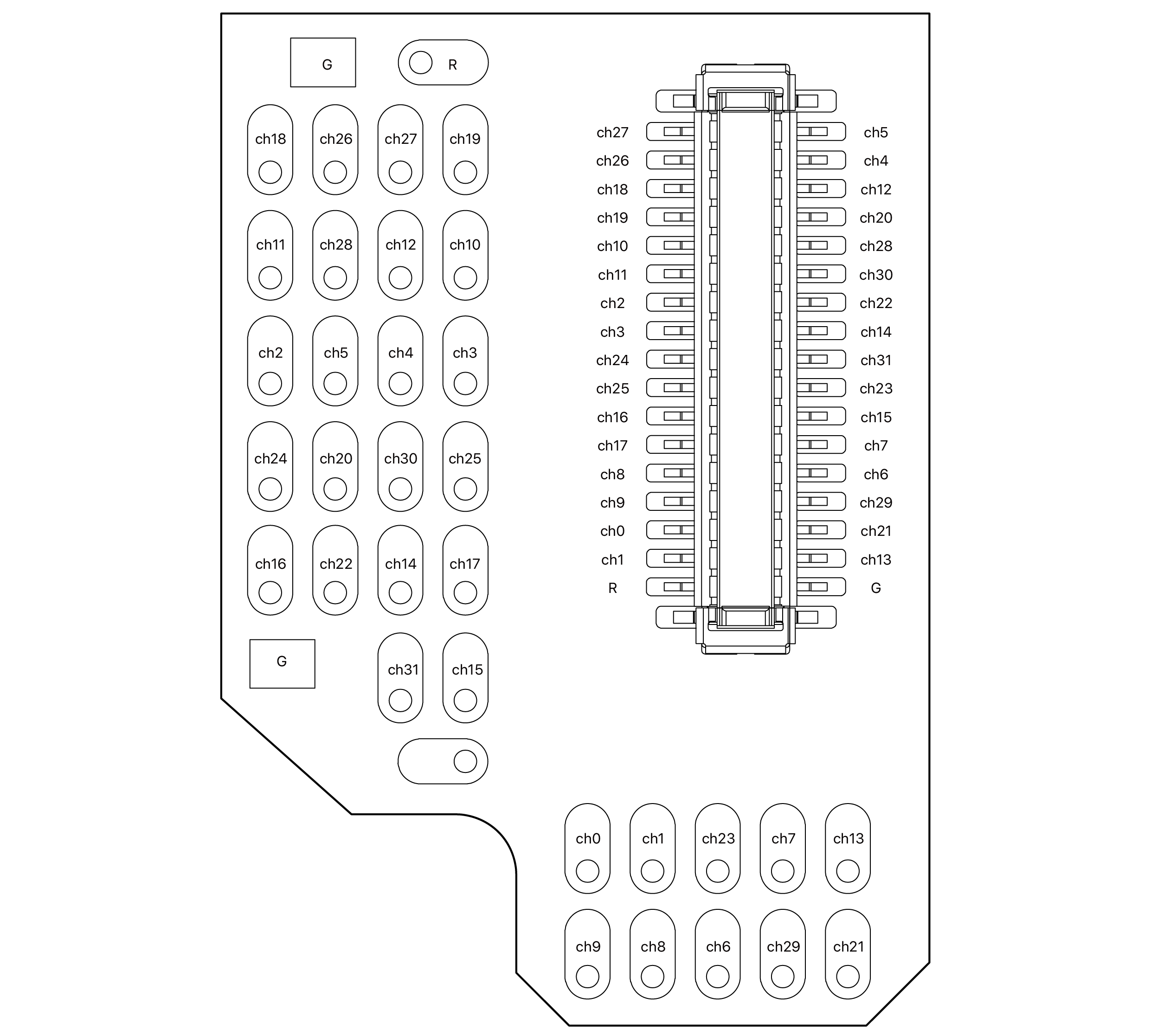

    EIB32 L
