EIB32SR

Overview

The EIB SR Right 32ch is a 32-channel Electrode Interface Board (EIB) specifically designed for use with the KonteX X3SR stim-record headstage. This model is configured with the extension on the right side of the headstage, providing flexible layout options in constrained or custom implant environments.

EIB32SR Overview

Connector

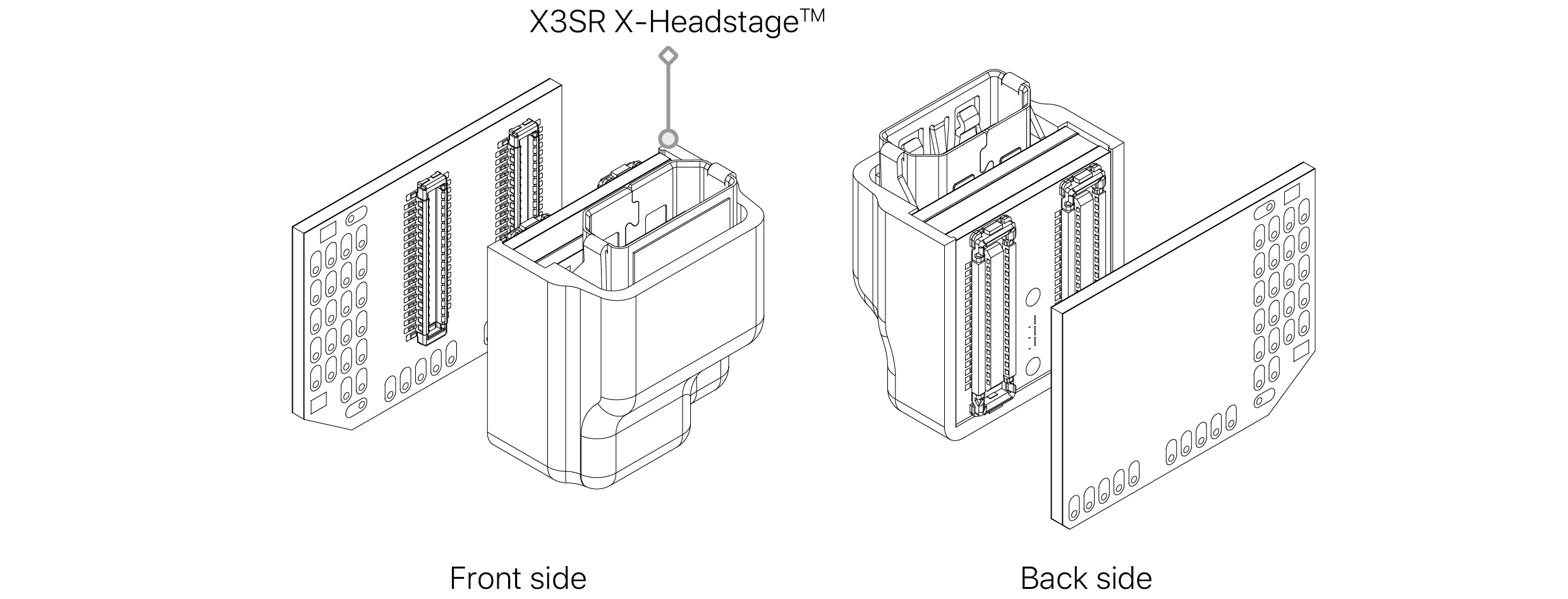

The EIB SR Right 32ch is compatible with the following headstages:

• X3SR32 Headstage

This EIB is not compatible with XR-series headstages or left-sided SR EIB variants. Always verify the headstage type and channel configuration before installation.

Dimension

Weight:0.8 g

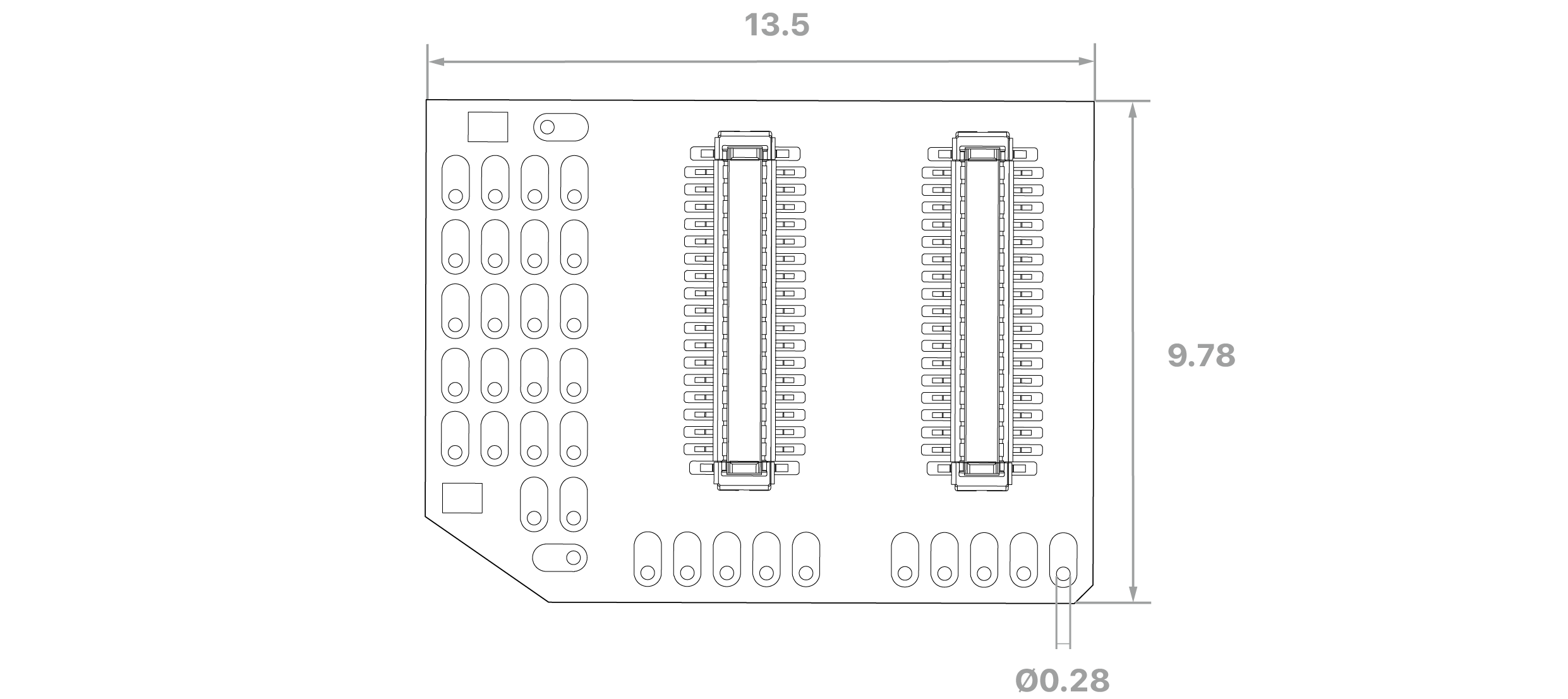

unit: mm

Key Features

Channel Capacity

Supports 32 recording or stimulation channels.

Connector Orientation

32 independent channels.

Connector Type

Compatible with X3SR headstage micro-connectors.

Right-Side Extension

Tailored layout for right-oriented cable management.

Compact and Lightweight

Minimizes implant footprint.

High Signal Integrity

Optimized for low-noise stimulation and recording applications.

Compatible Acquisition System

Headstage Compatibility

Designed for use with the X3SR32 headstage.

Electrode Compatibility

Supports 32-channel electrode arrays equipped with Omnetics connectors.

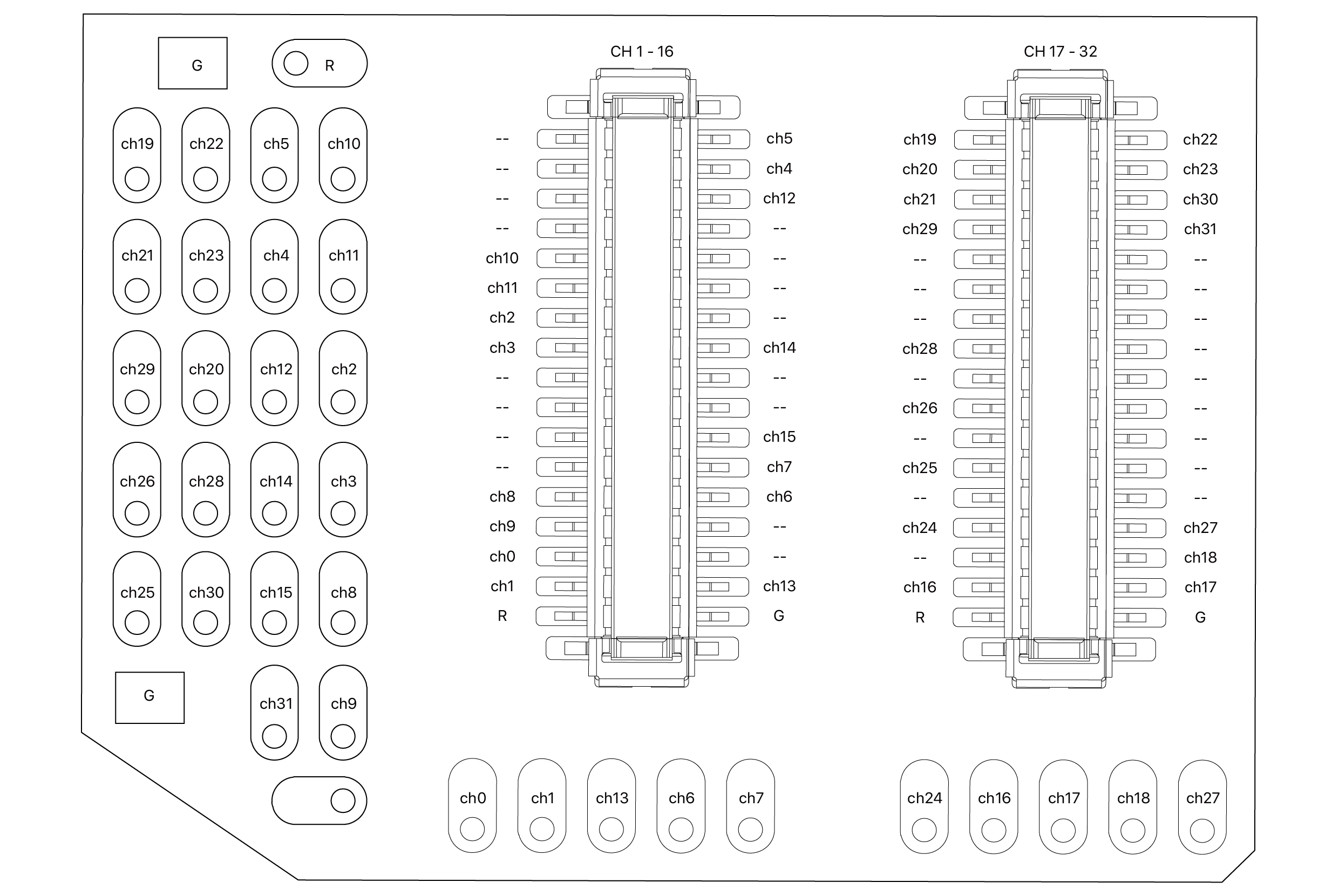

Pin Map

EIB32SR

---
